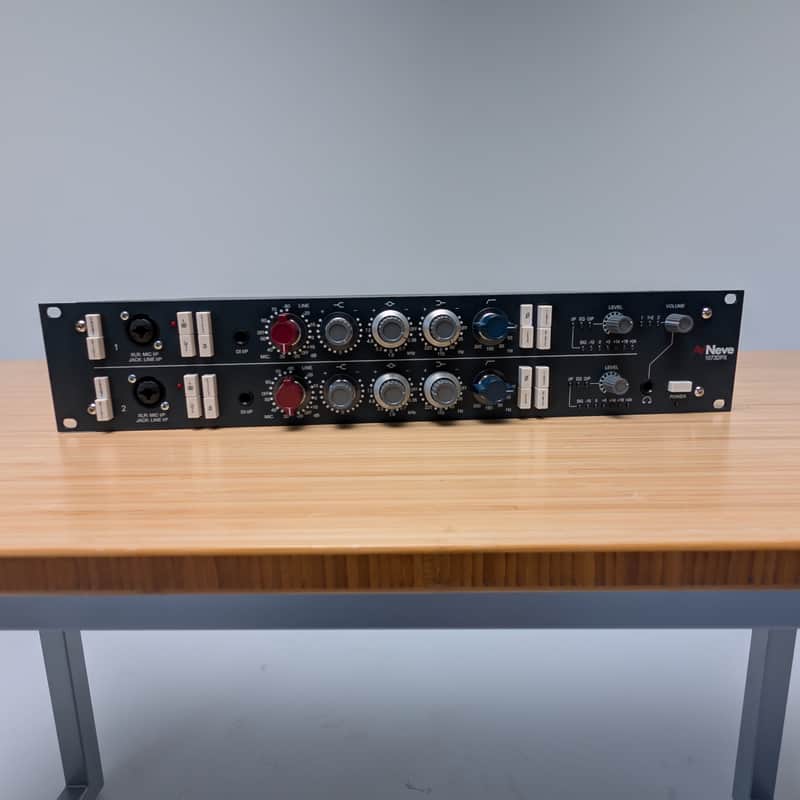

AMS Neve 1073DPX dual-channel Neve 1073 preamp and EQ in a single 2U rack. Two complete Class A 1073 channel strips built by AMS Neve in England to original spec, with the exclusive hand-wound Marinair input and output transformers that give the 1073 its unmistakable character.

Condition: Mint - no visible cosmetic wear. This unit comes from a smoke-free studio environment and was only used twice. All pots, switches, and stepped gain controls operate smoothly and accurately across their full range, both channels power up and pass signal cleanly on mic, line, and DI inputs, and the EQ and high-pass filter function correctly on both channels. Nothing intermittent, no scratchy controls, no issues.

Digital I/O card: Not installed — analog unit.

Serial number: 18700-03

Reason for sale: studio downsizing

Key features / specs:

• 2 independent, genuine Neve 1073 Class A mic/line/DI preamp + EQ channels, 2U rack
• Up to 80 dB of mic gain via stepped Elma gain switch (5 dB steps)
• 3-band inductor EQ per channel: fixed HF shelf, two switchable cut/boost bands, plus high-pass filter
• Marinair input and output transformers (custom-wound in the UK, exclusive to Neve)

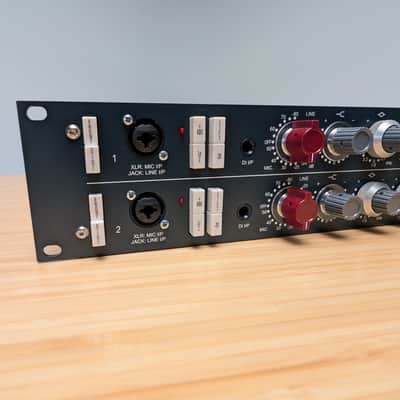

• Front-panel Neutrik combo jacks (mic/line/DI), switchable front/rear input selection per channel
• Switchable +48V phantom, Hi/Lo impedance, -20 dB pad, DI ground-lift
• Balanced insert send/return per channel with switchable pre/post-EQ point

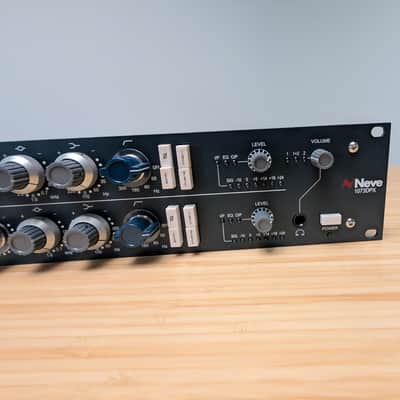

• 7-segment LED metering per channel (input / EQ-stage / output, up to +24 dB)
• Independent rotary output level control per channel, stereo headphone monitoring

Currently local pickup only. Please review all photos, they accurately represent condition. Happy to answer any questions before purchase.
