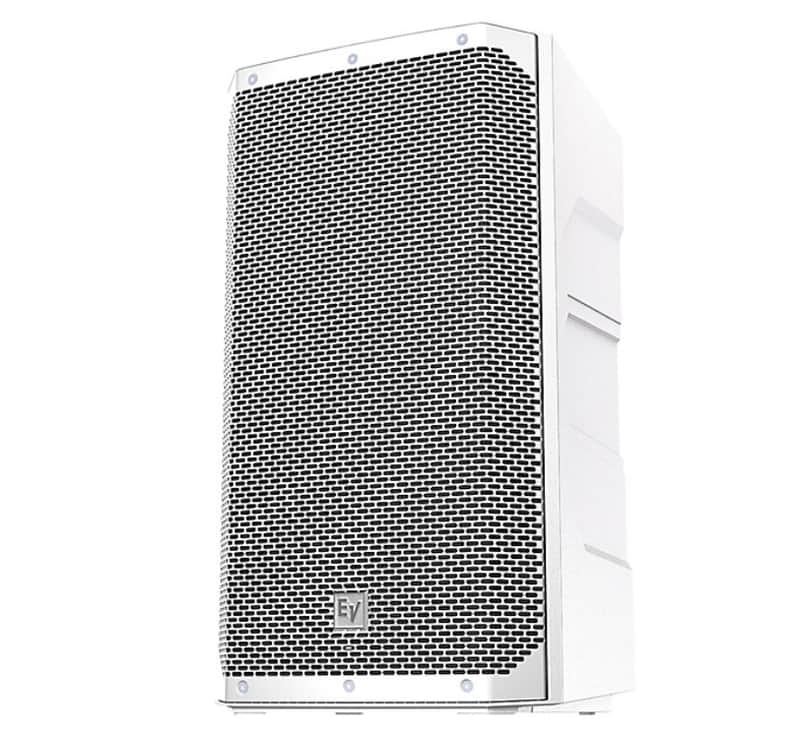

Electro-Voice ELX200-12P-W 12" 1,200W Portable Powered Loudspeaker - White

Electro-Voice's ELX200-12P-W 12" powered speaker is designed for bands, DJs and venues seeking an affordable, professional solution for live sound reinforcement. The ELX200 series provides lightweight yet robust enclosures, efficient Class-D amplification and optimized digital signal processing for full-range, high-fidelity sound.

Class-D Amplification Delivers 1,00W of Peak Power

The ELX200-12P-W is equipped with a highly efficient Class-D amplifier that produces 1,000W of peak power for robust volume and headroom. Despite its power, the amplifier is lightweight and generates little heat, allowing for a compact enclosure design. The amplifier's efficient design also requires less energy to operate, reducing power consumption.

QuickSmart DSP Provides Professional Sound Optimization

Electro-Voice's QuickSmart DSP platform provides digital signal processing optimized for the ELX200-12P-W's components. EQ, limiting and crossover functions are tailored to the 12" woofer and 1" tweeter, ensuring a balanced frequency response for natural, full-range sound. The DSP's protection limiting also helps prevent overload damage, enabling high-volume usage for live performances.

Durable Yet Lightweight Enclosure for Easy Transport

The ELX200-12P-W features a durable composite enclosure that balances structural integrity with light weight. At just over 3 lb., the speaker is highly portable for mobile performances and installations. Multiple suspension points also allow for permanent mounting if desired. The enclosure's sleek, low-profile design fits easily into any space.

Versatile and Full-Range for a Wide Range of Uses

With its portable yet powerful design and optimized components, the ELX200-12P-W is suitable for a wide range of live sound applications. Its full-range sound and wide, even coverage make it ideal for bands, DJs and vocal-heavy performances. Permanent installation is also possible thanks to its suspension points and sleek, compact enclosure. No matter the use, the ELX200-12P-W provides high-quality, professional-grade sound.

Features

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously and receive immediate notification during critical performance conditions (Bluetooth is available in select countries)
• QuickSmartDSP features best-in-class processing—easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD
• High-efficiency 1,200W Class-D power amplifier delivers up to 130dB peak SPL utilizing transducers designed and engineered by EV
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion and maximized acoustical loading
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting

Specs

• Frequency response: (-3dB) 57Hz–16kHz
• Frequency range: (-10dB) 51Hz–20kHz
• Maximum SPL: 130dB
• Coverage (HxV): 90°x60°
• Power rating: 1,200W
• LF transducer: EVS-12M 300 mm (12")
• HF transducer: DH-1C 1" titanium compression driver
• Crossover frequency: 1,700Hz
• Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
• Enclosure: Polypropylene
• Grille: 18 AWG steel with powder-coat
• Suspension: (3) M10 suspension points
• Dimensions (HxWxD): 629 mm x 363 mm x 344 mm (24.8" x 14.3" x 13.6")
• Net weight: 15.6 kg (34.4 lb.)
• Power consumption: 100-240V~, 50-60 Hz, 1.8A³
