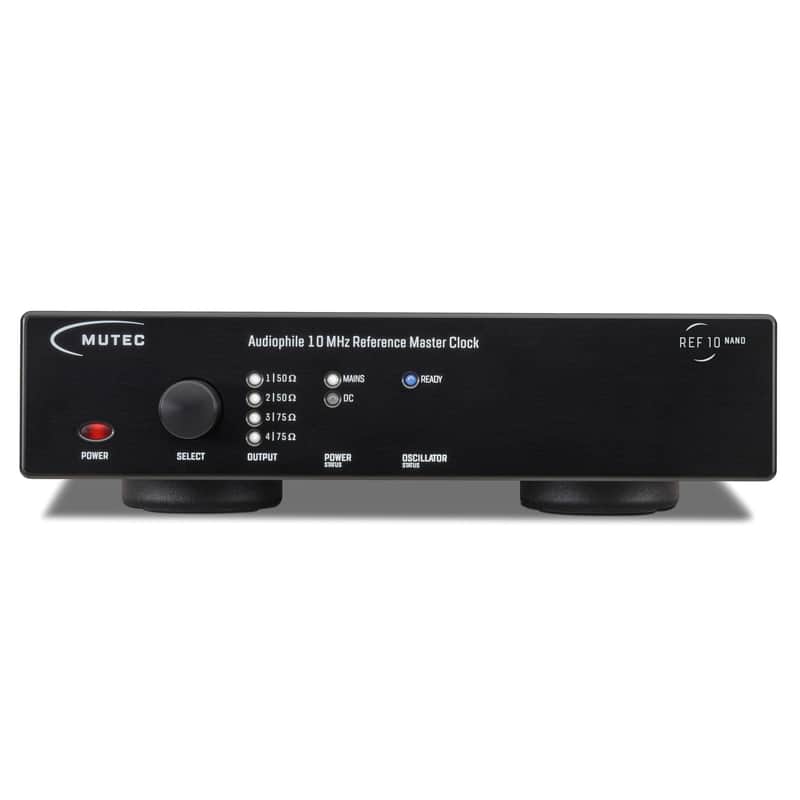

Mutec REF10 NANO Compact 10 Mhz Reference Master Clock - Black

Mutec REF10 NANO Compact 10 Mhz Reference Master Clock - Black

The REF10 NANO is the focused version of an audiophile 10 MHz reference master clock in the superior quality you should expect from clocking specialist MUTEC. It is based on the already well-established REF10, but transfers its technology, praised by many customers and reviewers, into a new, significantly lower price range.

With the REF10 NANO, dedicated music lovers are for the first time able to significantly improve the sound performance of their home digital audio system for a moderate investment. Likewise, thanks to this MUTEC reference master clock, aspiring studio owners can guarantee their customers maximum sound quality when mastering and recording their music productions. No matter which kind of playback setup the REF10 NANO is used in, a noticeable increase in transparency, spatiality and dynamics will be clearly audible in general.

The REF10 NANO can be directly connected to up to four 10 MHz-compatible devices. D/A converters, network switches, re-clockers, clock generators, CD players, servers or streamers are perfect partners. In case these components do not have a dedicated 10 MHz input, an MC3+ or MC3+ USB interface from MUTEC provides the necessary interconnection between the REF10 NANO and the audio equipment to be synchronized. On the other hand, the REF10 NANO is the perfect partner to an existing MC3+ or MC3+ USB. Together they raise the signal’s audiophile quality – already improved and re-clocked by the MC3+/MC3+ USB interface – to an even higher level.

Take the chance and discover what your digital audio system is capable of. Entering the sound-enhancing world of 10 MHz reference master clocks has never been more affordable than with the REF10 NANO from experts MUTEC.

ADVANTAGE OCXO

Highly important for the performance of a reference master clock is the frequency stability of the oscillator used. This parameter is dependent, among other things, on its ambient temperature, which must remain within a precisely defined range. If this very narrowly defined frame is deviated from by a variation in the ambient temperature, the frequency stability of the oscillator is affected. This has a significant impact on the precision of the digital signal processing for connected audio devices. The German-made OCXO (Oven Controlled Quartz Oscillator) used in the REF10 NANO is permanently kept at the same ideal temperature in its dedicated heated enclosure.

TARGETED DESIGN

In order to remove jitter and phase noise from clock signals to the maximum extent possible, further manifold steps were taken. The REF10 NANO has an enclosure made of steel to protect the electronics from high frequency interferences. Compared to commonly used aluminum cases, the insulation against external interferences is considerably better. To avoid hum caused by ground loops, all output stages of the REF10 NANO are galvanically isolated. Each of the four clock outputs can be switched on and off individually so that only the required outputs are active. This helps to minimize mutual interferences in the high frequency range as best as possible. There are two pairs of outputs, each with a different termination of 50 ohms and 75 ohms. This ensures successful interaction of the REF10 NANO with a wide range of devices of other manufacturers. Operation couldn't be simpler: all you have to do is select the desired output and the NANO immediately works.

CLEAR SOUND IMPROVEMENT

Using a reference master clock such as the affordable REF10 NANO can significantly improve the sound of a digital audio setup. This applies to the audiophile listener at home as well as to the mastering/recording engineer in a professional A/V studio environment. In every use case, there is a clear increase in audio quality. Including the REF10 NANO in your system results in higher transparency, more clearly defined bass, darker background, better instrument staging and extended imaging. The MUTEC REF10 NANO certainly takes the audio quality of compatible D/A converters, network switches, servers, streamers, CD players, clock generators and re-clockers to a new level. It is likewise the perfect upgrade for owners of an MC3+/MC3+ USB interface. In every context, the REF10 NANO 10 MHz reference master clock makes a significant contribution to fulfilling the central MUTEC promise: Perfecting Digital Audio.

FEATURES:

• Audiophile 10 MHz reference master clock with extra low phase noise
• Improves and enhances compatible D/A-converters, re-clockers, music servers, network switches, streamers, CD players
• Handcrafted extra low phase noise OCXO Made in Germany
• Generates a very high slew-rate square wave signal for superior lock precision
• Four simultaneous usable reference clock outputs with 50 ohms (2x) and 75 ohms (2x) impedance for maximum compatibility
• Galvanic isolation of the independently switchable BNC clock outputs for optimum interference immunity
• Sub-Hz optimized, lowest noise power supplies for every section of the circuitry
• Integrated international power supply
• DC input for fine-tuning through an external power supply unit
• Self-explanatory user interface
• Optional mounting kit for installation in 19” studio racks (1RU)
• Developed and manufactured in Germany
