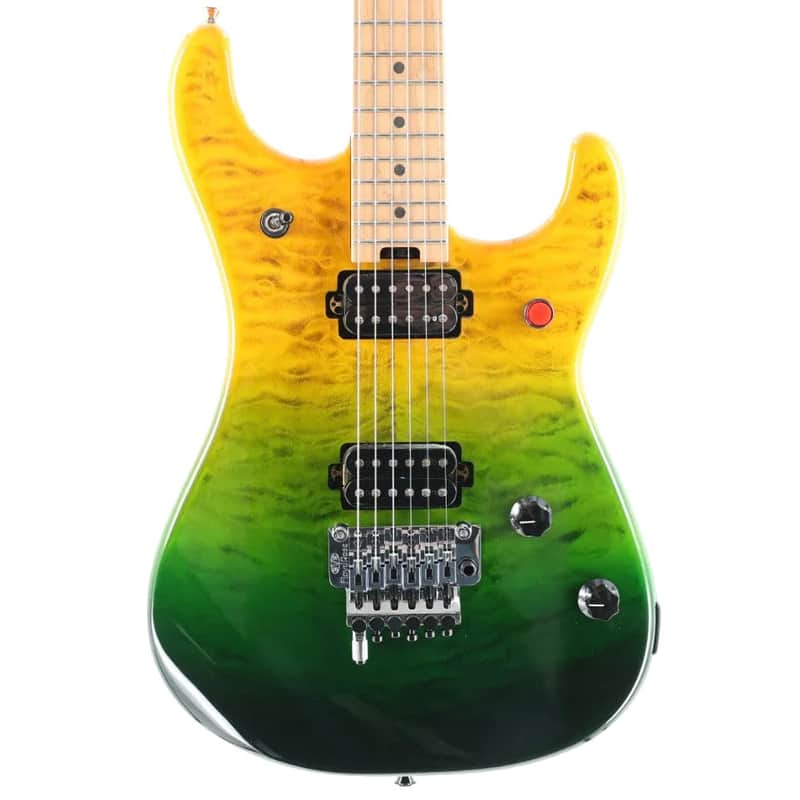

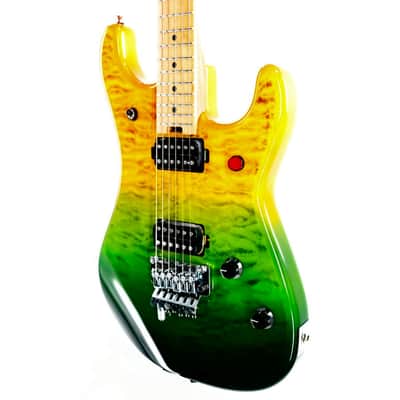

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150 Series DX is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 DX features a modified Strat-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and "hockey stick" headstock with EVH logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant.

Features:

General

• Series: 5150 Series Guitars
• Orientation: Right-Hand
• Color: Limeade Zest
• Model #: 5108310390
• Case/Gig Bag: EVH Striped Series Gig Bag (P/N 022-7742-100) Included

Neck

• Headstock: EVH Hockey Stick
• Neck Material: Quartersawn Baked Maple
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: EVH Modified "C" Backshape
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Thickness: .790" at 3rd Fret & .810" at 12th Fret
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Baked Maple
• Position Inlays: Black Dot
• Side Dots: Black
• Number of Frets: 22
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Nut: Floyd Rose R3 Locking
• Nut Width: 1.685" (42.8 mm)
• Nut Material: Floyd Rose R3 Locking
• Fret Size: Jumbo
• Scale Length: 25.5" (648 mm)

Body

• Body: Basswood
• Body Finish: Gloss Urethane
• Body Shape: 5150
• Body Top: Quilt Maple
• Body Material: Basswood

Hardware

• Bridge: Top-Mount EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Tremolo Block: Brass
• Pickup Covers: Black
• Control Knobs: Black Knurled with White Indicator
• Switch Tip: Black
• Hardware Finish: Chrome
• Tuning Machines: EVH-Branded Gotoh
• String Trees: Floyd Rose Retainer Bar
• Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
• Tremolo Arm: Floyd Rose 1000 Series Locking
• Neck Plate: 4-Bolt Standard
• Strap Buttons: Oversized

Electronics

• Bridge Pickup: Direct Mount EVH Wolfgang Humbucking
• Neck Pickup: Direct Mount EVH Wolfgang Humbucking
• Pickup Configuration: HH
• Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup
• Auxiliary Switching: Kill Switch

Accessories

• Included Accessories: Tremolo Arm, Hex Keys & User Manual
• Truss Rod Wrench: 2.5 mm Hex

8.0 lbs
