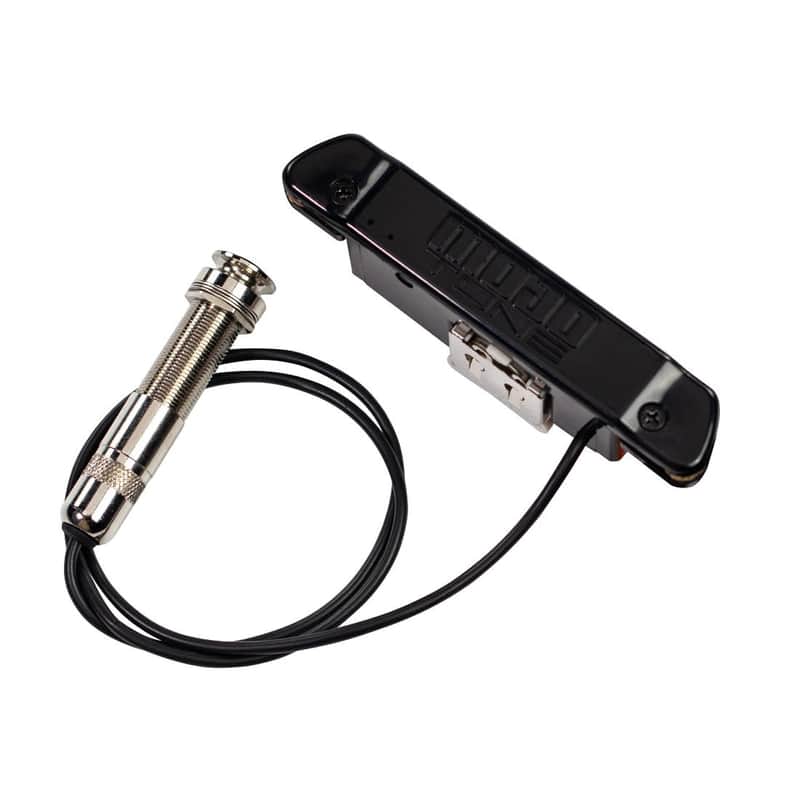

Mojotone Quiet Coil NC-1 Acoustic Soundhole Pickup

Quiet Coil NC 1 Acoustic Guitar Soundhole Pickup

Delivers a stunning natural acoustic sound with its mic voiced and noise canceling preamp design make your guitar sound like itself

The Mojotone Quiet Coil NC 1 active acoustic soundhole pickup reacts beautifully with the natural frequencies of your acoustic guitar while also eliminating the unnatural electric guitar tone associated with other magnetic soundhole pickups Our noise free preamp design voices the pickup to closely mimic the sound and frequencies of a condenser mic giving you the purest and most uncompromised magnetic soundhole pickup tone ever heard

With its mic voiced preamp and perfect string to string volume you will be sure to inspire and be inspired Comes wired with studio quality Mogami cable attached to a hard wearing stereo Switchcraft end pin jack that can be permanently or temporarily installed And best of all it is proudly made right here in the USA by Mojotone

Installation instructions

• Voicing and tone
  Voiced and EQd like a microphone to emphasize your guitars pure and natural acoustic tone No more unnatural highs or mids like with other magnetic soundhole pickups and no need for extra gear to compensate for an underwhelming pickup tone
• Balance and perfection
  Specifically designed to have perfect string balance and volume with normal bronze or phosphor bronze acoustic guitar strings There is no need for adjustable polepieces or special strings to compensate for unbalanced string volume No more annoying loud high E and B strings with muddy low strings
• Noise and feedback resistant
  Noiseless preamp design makes for the quietest performance possible in the studio or live And best of all it is feedback resistant
• Lightweight and simple
• Extremely lightweight and compact design less than 1.6 oz allows for quick installation without modification loosening strings or adding unwanted mass to the soundhole of your guitar
• Ergonomic and friendly
  Rolled edges and low profile mounting ears keep the pickup from getting in the way of your picking while the natural cork pads protect the most delicate nitrocellulose finishes from damage
• Power and convenience
  Active 6V preamp with over 500 playing hours powered by the most common lithium 2 x CR2032 coin cell batteries included All in a convenient slide out drawer for easy battery replacement
• Installation and quality
  Low capacitance and flexible Mogami cable pre wired to a stereo Switchcraft USA end pin jack This can be permanently installed alternatively we include a clip for your belt or strap for a non permanent installation NOTE Mogami brand cable is only used on pickups manufactured after 10 2022

All of our pickups are proudly built in Burgaw NC

Specs

• Single coil noise canceling preamp
• 6V active 2 x 3V CR2032 lithium batteries included
• Battery life 500 plus hours
• Master volume
• Battery test button
• Mogami cable to Switchcraft stereo endpin jack
• Minimum soundhole diameter 83.8 mm or 3.30 in
• Made in the USA
