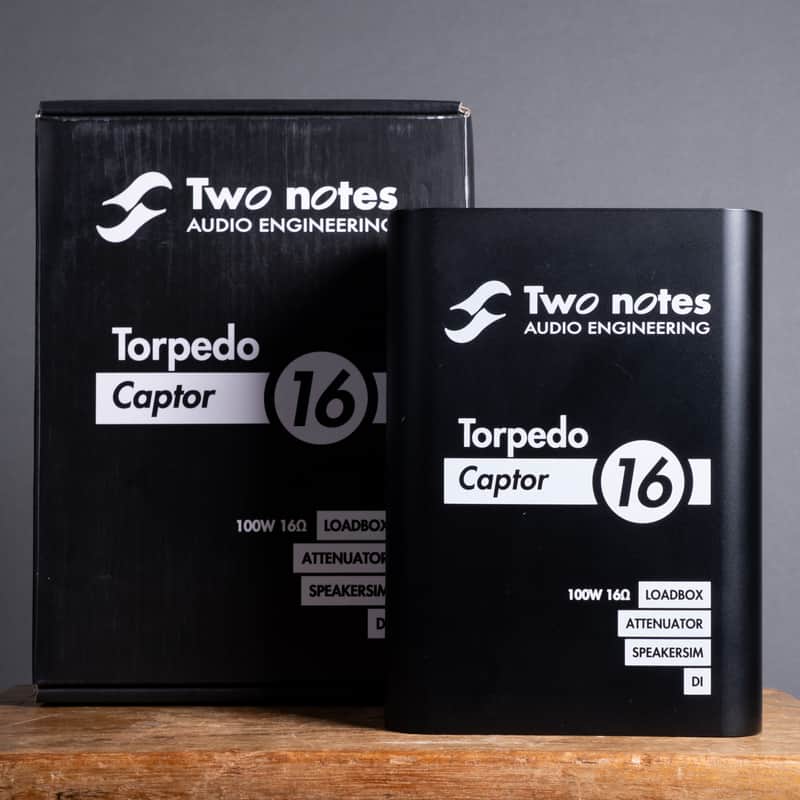

Two Notes Audio Engineering Torpedo Captor 16 Compact Analog Reactive Load Box, Attenuator & Amp DI (used)

Excellent condition and in perfect working order with original box. This unit shows light signs of use, but is overall very clean and functions without issue.

From Two Notes: The Torpedo Captor allows you to capture a rich sound for direct recording without having to mic your speaker. Used without a speaker, it allows you to use your amp head in silent mode without any risk. If you wish to keep using a cabinet, the Torpedo Captor features a direct speaker THRU or ATT output which sends either the full volume of the amp to the cabinet or a fixed -20dB attenuation. It also offers a balanced XLR active DI output with selectable guitar or bass simulation taken from Two notes critically acclaimed Le-series preamps, as well as a balanced line output with adjustable output level and polarity.

Input/Output

Speaker input / 1/4″ jack unbalanced (TS)

Speaker Attenuated Output / 1/4″ jack unbalanced (TS)

Speaker Thru / 1/4″ Jack unbalanced (TS) - Directly connected to Speaker Input (Loadbox disconnected when in use)

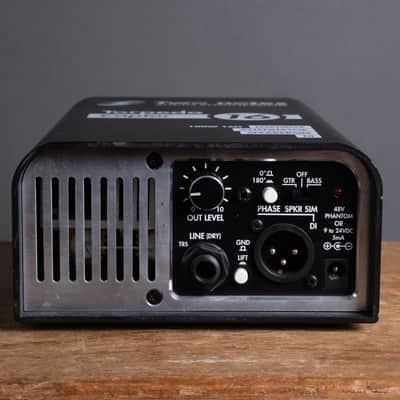

Line Output / 1/4″ Jack balanced (TRS) - Impedance: 1000 Ohms - Phase switch - Ground lift (Without speaker simulation)

DI Output / XLR balanced - Impedance: 600 Ohms (With or without speaker simulation)

Analog speaker sim / Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone / Bass : based on Fridge DynIR Cabinet – Cnd87 Microphone

Load box

Impedance / 4, 8 or 16 Ohms

Max admissible power / 100W RMS

Safety system / Temperature-controlled fan / Active thermal safety

Dimensions & weight
Width x Depth x Height
12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″ (Including connectors and knobs)

Weight: 1000 g / 2.2 lbs

Power / Input voltage

Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center

Current draw / 5mA

Power input connector / DC connector, 2.1mm x 5.5mm, center negative (Power is required only for the XLR DI output and analog speaker sim)
