Custom Pre-order! with Seymour Duncan JB & Jazz Set Matte Grey Telecaster HH Blackout 4-way

**Upgrades**:

• Seymour Duncan bridge pickup humbucker SH-4 JB full size $69
• Seymour Duncan neck pickup humbucker SH-2n Jazz full size $69
• Body swapped to Paulownia body with matte grey finish as shown in the last pictures

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

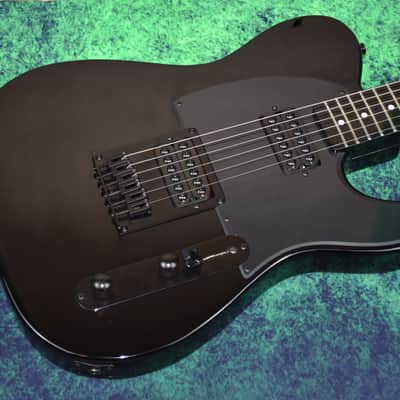

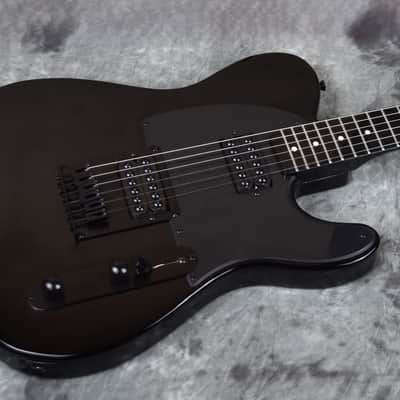

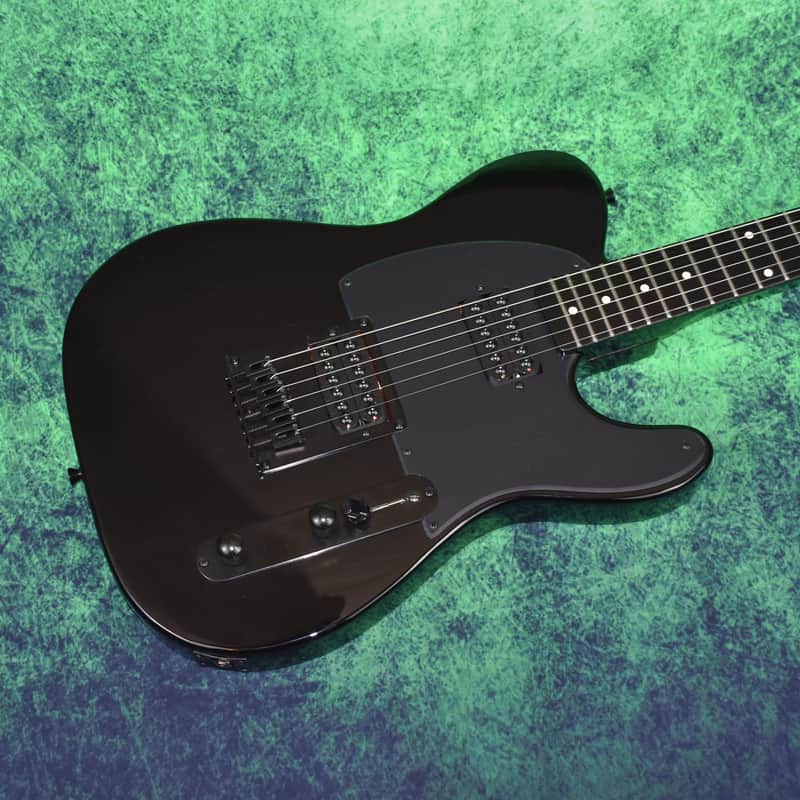

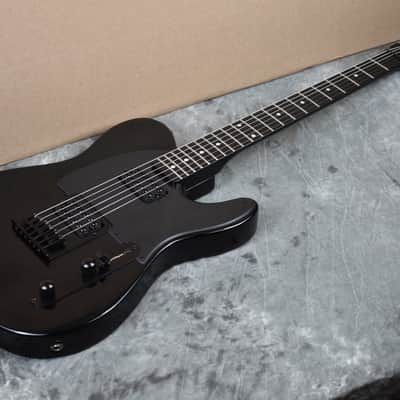

The guitar that is pictured is one that has already been built and sold.  Color or wood grain will vary from that in the picture. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

General Overview:

• Playing demo and description video available at "Werner Guitars" YouTube channel
• Total blackout of the guitar. The only thing not black are the fret markers.
• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• Strings: D'Addario Nickel Wound XL 10-46 EXL110-10P

Body:

• Black Gloss body

Neck:

• Scale length 25.5"

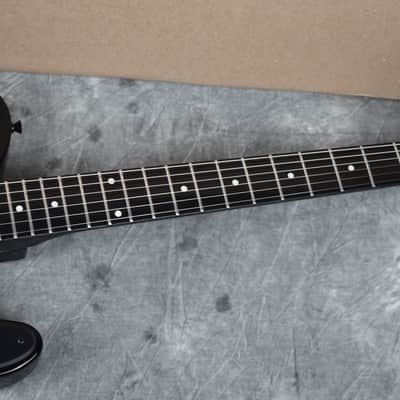

• Black Gloss Maple Neck & Black Gloss Fretboard. medium jumbo frets.

Hardware:

• Black modern bridge
• Black knobs
• Black switch tip
• Black output jack plate
• Black strap pin buttons
• Black Wilkinson tuners
• Black neck plate
• Black string ferrules
• Black easy-glide string trees

Switching Positions as Follows:

1. Bridge (Resistance 14.79 ohms)
2. Bridge in parallel with Neck (regular Tele position ) (Resistance 5.23 ohms)
3. Neck (Resistance 7.96 ohms)
4. Neck in series with Bridge (Resistance 22.2 ohms)

Electronics:

• Black Humbucker Bridge Pickup 15k (Exact measure 14.79 ohms).
• Black humbucker in the neck 8k (Exact measure 7.96 ohms).
• 500K Potentiometer Push/Pull Split Audio Taper potentiometers
• Oak Grigsby 4-way switch
• .022uf Tone Capacitor
• Pure Tone Black Nickel Mono output Jack with multi-contact dual tension grounds & dual positive tips for optimal signal, tone & lowest possible noise.
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

Full-spectrum Resistance 19 ohms to 3 ohms: Guitar has nine (9) distinct resistance settings with mix and match of push-push coil splits. Positions and resistance values are charted below at the very bottom. High-output position number 4 with bridge and neck wired in series. Coil splits are "partial" coil splits modeled after PRS "partial" coil splits to retain oomph, output, and tone. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless. Full detailed description of "Broad Spectrum Wiring" can be viewed on "Werner Guitars" Facebook page.

Detailed Switching Positions as Follows:

1. Bridge (Resistance 14.79 ohms)

with (partial) coil split (tone knob only) 9.26 ohms

with (partial) coil split (tone & volume knob) 3.73 ohms

with (partial) coil split (volume knob only) 4.39 ohms

2. Bridge in parallel with Neck (regular Tele position ) (Resistance 5.23 ohms)

with (partial) coil split (tone knob only) 4.32 ohms

with (partial) coil split (tone & volume knob) 3.44 ohms

with (partial) coil split (volume knob only) 3.99 ohms

3. Neck (Resistance 7.96 ohms)

with (partial) coil split (volume knob only) 5.41 ohms

4. Neck in series with Bridge (Resistance 22.2 ohms)
with (partial) coil split (tone knob only) 16.92 ohms

with (partial) coil split (tone & volume knob) 5.87 ohms

with (partial) coil split (volume knob only) 5.95 ohms

Charted Full range of resistance:

22.2 ohms

16.9 ohms

14.8 ohms

9.3 ohms

8.0 ohms

6.0 ohms

5.4 ohms

4.3 ohms

3.4 ohms

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Color, pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

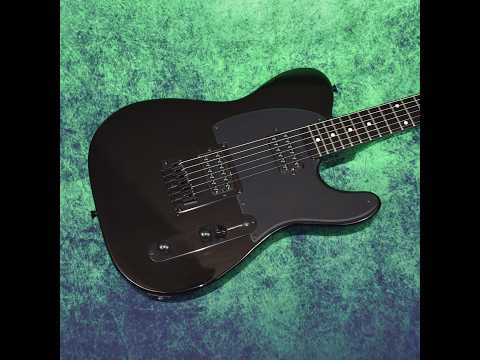

Two videos of the guitar are available at the end of the pictures or on YouTube. Just search "Werner Guitars" or copy and paste one of the below titles into your YouTube search bar: Playing demo video: Sound: Black Telecaster 2024 HH 4-way Switch Partial Coil Splits In Series Lightweight Thin Neck Specifications video: Specs: Telecaster HH Custom Blackout 4-way Thin Neck 6 Pound Lightweight Shredder Partial Coil Split
