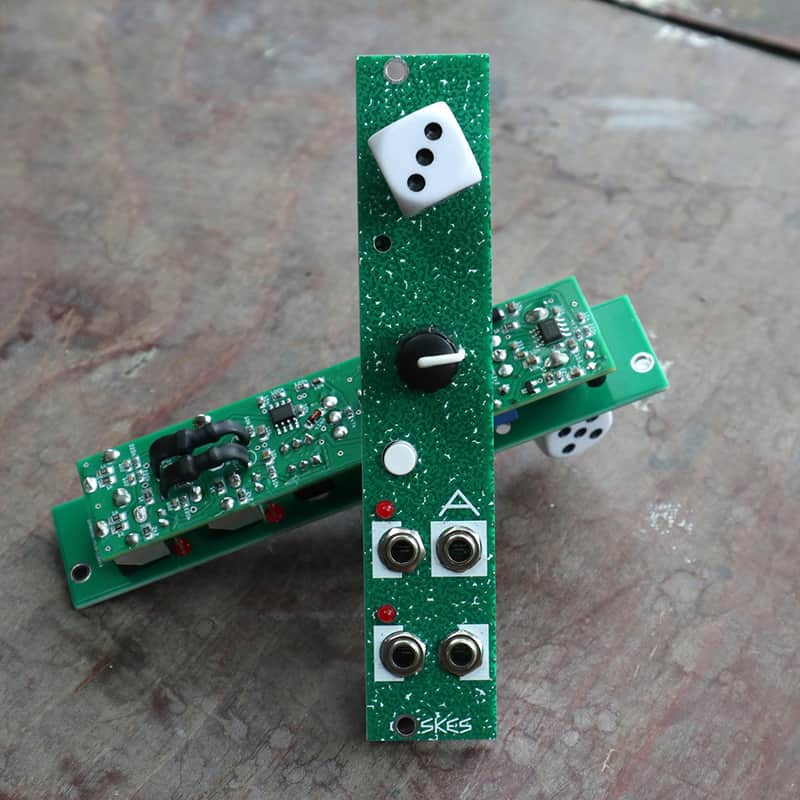

Gieskes - Dice 2 Random Bi-Directional LPG [Green]

Gieskes - Dice [Randomly-switched SPDT Bi-Directional LPG]

Dice is a SPST switch that uses Vactrol based low pass gates to switch. They are not buffered and are made to switch in all dicectios like a physical switch or relay, but then with the LDR delay effect. It switches on a lowpass filtered and then comparated white noise signal, this makes it switch more or less often, the filter is set with the dice. There is also a output for the noise, this sounds a bit like hard rain drops, this is why i called the module dice, which is dutch for rain. This signal goes slightly negative voltages to about 9v positive. Specification: +12v (Power consumption should be not much, maybe 40ma) -12v (maybe 20ma?) Width is 5HP
