ADDAC701 - VCO Rev 2.0 - ADDAC 701

Mint

If you know you know.

• This is a serious analog oscillator, not a basic “one-waveform-and-done” VCO.
• It uses a CoolAudio CEM3340 core, so you get the classic stable analog oscillator architecture without wasting rack space.
• It tracks across 7 octaves, which matters if you actually want melodic pitch control instead of loose, drifting chaos.

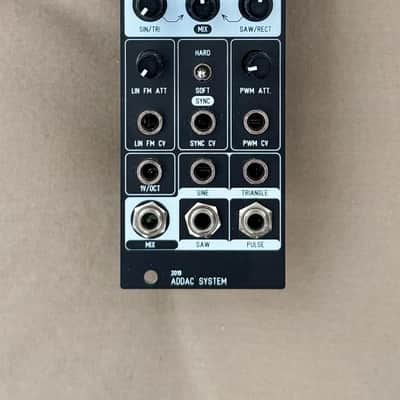

• You get SINE, TRIANGLE, SAW, and PULSE outputs all at once.
• You also get a MIX output, so you can blend waveforms inside the module instead of burning another mixer just to shape the tone.
• 1V/OCT handles pitch.
• Linear FM CV with attenuator gives proper modulation control instead of forcing you to tame it somewhere else.
• PWM CV with attenuator lets you animate pulse width directly from the oscillator.
• The LFO/VCO switch means it can work as an audio oscillator or modulation source.
• Soft / Off / Hard Sync gives more control than the usual basic sync input.

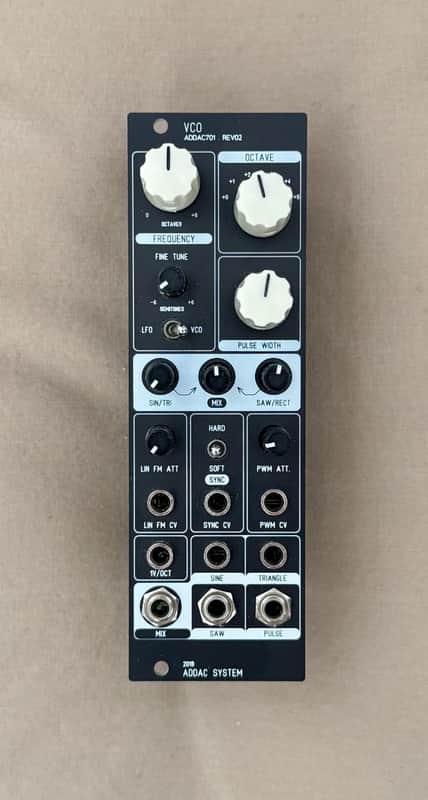

Most compact VCOs make you patch around their limitations. The ADDAC 701 Rev2.0 gives you the core waveforms, mixing, FM, PWM, sync behavior, and wide range directly on the panel.

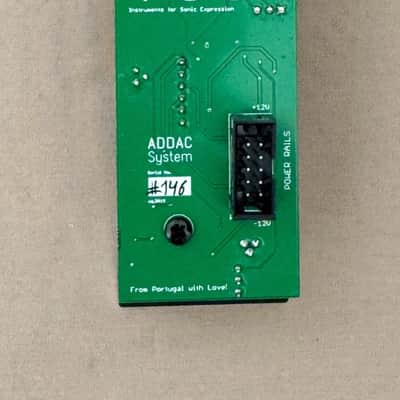

8HP, 3.5cm deep, 60mA +12V / 60mA -12V.
