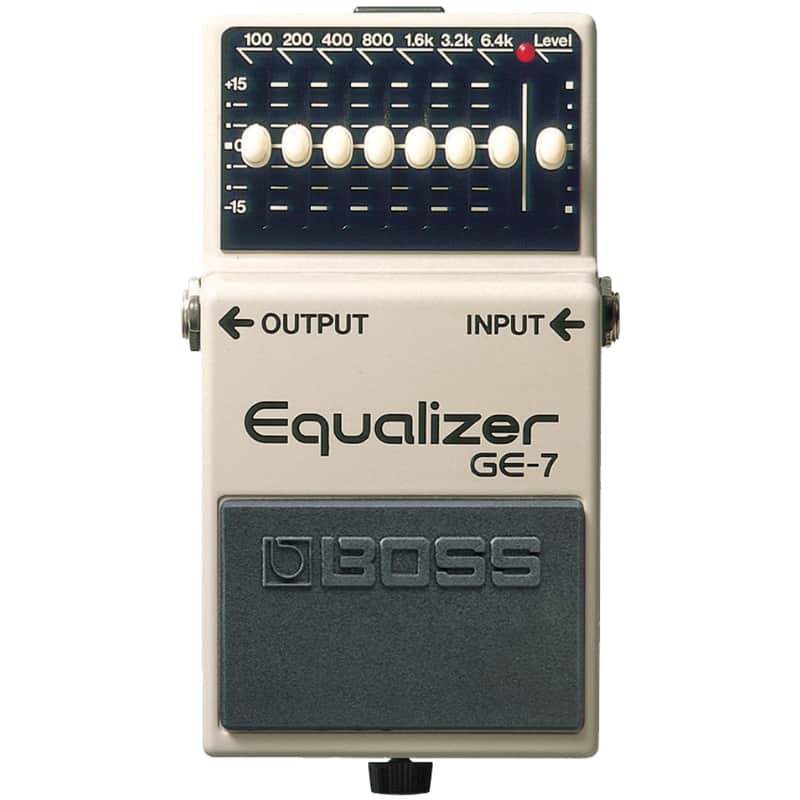

The GE-7 Equalizer pedal offers seven bands of EQ ranging from 100Hz to 6.4kHz, ideal for guitar sounds, with boost/cut of +/- 15dB per band. This lets you completely control your sound and eliminate unwanted feedback, particularly when connected after a distortion effect.

Specifications

General:
Bypass: Buffered bypass
Indicator: Check indicator (battery status)

Input / Output:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Controls:
Controls: Level, equalizer (100, 200, 400, 800, 1.6k, 3.2k, 6.4k Hz)
Switch: Pedal switch

Connections:
Input Jack: 1/4" phone
Output Jack: 1/4" phone
Power Input: DC in

Power:
Power Supply: 9V battery (carbon-zinc or alkaline) or AC adapter (optional)
Current Draw: 30 mA
Battery Life: Approx. 9 hours (carbon), 19.5 hours (alkaline)

Accessories:
Included: Safety/notes leaflet, 9V battery
Optional: AC adapter (PSA series)

Dimensions & Weight:
Width: 73 mm (2-7/8")
Depth: 129 mm (5-1/8")
Height: 59 mm (2-3/8")
Weight: 400 g (15 oz)
