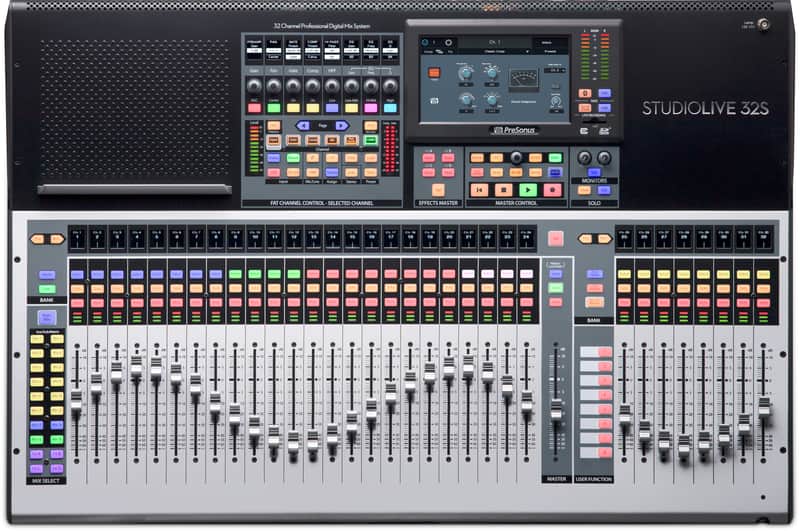

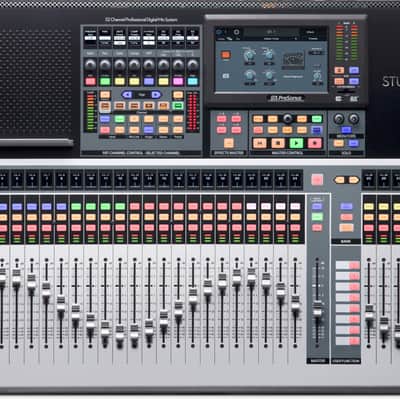

PRESONUS 32CH 22-BUS DIGITAL MIXING CONSOLE / RECORDER / INTERFACE WITH AVB NETWORKING

The StudioLive 32S is a powerful 32-channel mixer that provides the ultimate mixing experience, packing large-format features into a small-format chassis. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32S digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors—including 4 stereo reverberation systems—and Fat Channel plug-in models on every input channel and mix bus. With 128 (64x64) channels of USB recording, 128 channels of AVB network audio I/O, flexible routing options, and studio-grade audio quality, the StudioLive 32S delivers a fast and intuitive, surface-driven workflow for total control. Spend less time menu-diving and more time mixing—hands-on.

Features

• Powered by the dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 40-input channel digital mixer with 33 touch-sensitive motorized faders
• • 32 local digitally controlled XMAX mic/line inputs
  • 2 balanced stereo aux inputs
  • 1 stereo tape input (RCA, Bluetooth connectivity, USB, AVB, or SD)
  • 4 FLEX FX returns
  • 1 Talkback
• 26 mix buses
• • 16 FlexMixes (Aux, Subgroup, Matrix)
  • 4 dedicated FLEX FX buses
  • 4 dedicated subgroups
  • Stereo Main bus
• 286 simultaneous processors
• • HPF
  • Gate/Expander
  • Compressor with Fat Channel plug-in models
  • 4-band/6-band parametric EQ with Fat Channel plug-in models
  • Limiter
  • 31-band graphic EQ
  • 4 FLEX FX slots featuring legendary classic reverb emulations and delays
• State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 24 DCAs to control groups of channels
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
• User Profiles for managing multiple operators with custom permissions
• Per-channel digital patching from any analog, AVB, USB, or SD Card source
• DAW Control
• • Advanced Studio One control integration
  • MCU emulation mode optimized for Logic
  • HUI emulation mode optimized for Pro Tools
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface (included)
• Put your musicians’ monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
• Capture 3.0 multitrack software included
• • Automated Virtual Soundcheck
  • Store StudioLive mix scenes with your audio
• Advanced Studio One integration (Studio One Artist Included)
• • XMAX mic preamp control from Studio One
  • Control Fat Channel parameters from Studio One mixing console
• Ableton Live Lite included
