ENTTEC DMX USB PRO MK2 1024-Ch USB DMX Interface

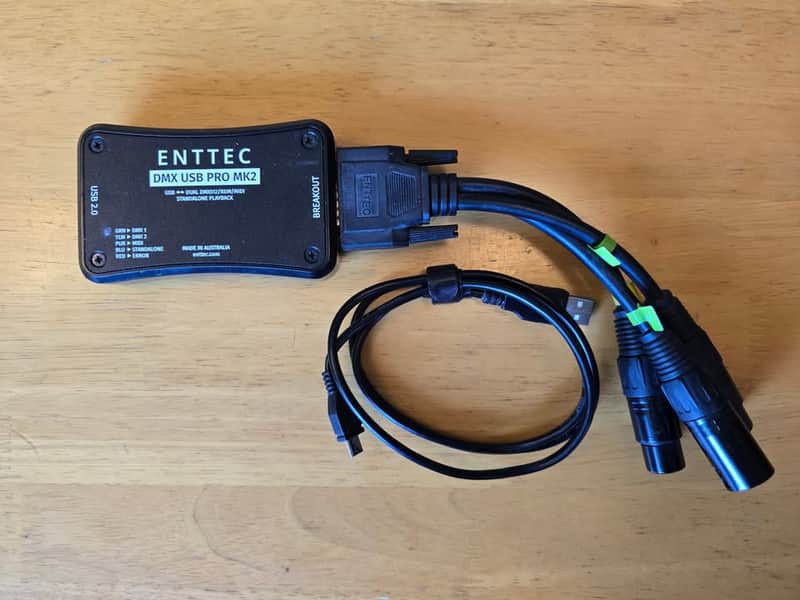

ENTTEC DMX USB PRO MK2 w/ breakout adapter and microUSB cable

"The ultimate DMX USB widget with 2 universes of input or output + standalone playback"

I bought it 4 years ago for controlling DJ lights on my Twitch streams, but never got around to learning how to use it.

============

DMX USB PRO Mk2, or the “Pro2" is light-weight, portable, and ready for the next generation of applications. The “Pro2" supports two full universes of DMX512 working independently. It can be used as an output to control lights, or as input to allow DMX data from an external source to interact with various PC programs. On-board memory allows show storage, and processor ensures the timing and signalling data is produced uninterrupted and error free.
The “PRO 2" follows the success of the DMX USB Pro, that set the industry reference between a myriad of independent software applications and the DMX networks.

> Features

This fully backward-compatible device functions with all previous software that supported the first generation DMX-USB Pro. It now includes an array of new features:

• Dual, fully independent, DMX ports each with full RDM capability
• MIDI input and output ports
• Stand alone operation for unattended replay of lighting shows (limit 1 universe)
• One firmware version supports all features
• Aesthetically slim-profile, machined aluminum box
• True 1500V isolation separating all ports from each other
• * Internal frame buffering
• * Works at various communication speeds
• * Utilizes the FTDI chipset
• * Stores configuration and user data in EEPROM
• * Refresh rate configurable from 1 to 40Hz
• * Break time configurable from 96uS to 1.3mS
• * MaB configurable from 10.6uS to 1.3mS
• * Upgradeable firmware
• * Security / software protection API
• * Comes with USB and break out cable

Dimensions

• H: 22mm/1.58”
• W: 66mm/2.27”
• D: 105mm/3.03”
