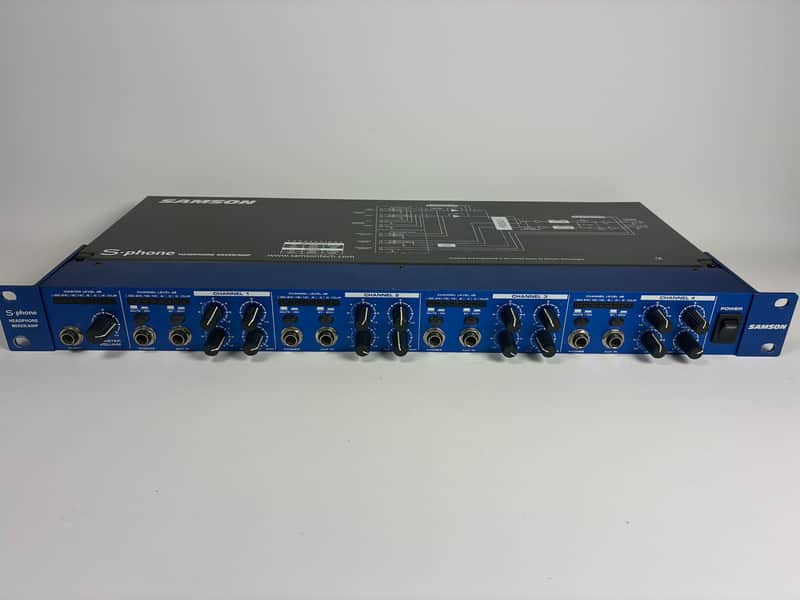

This Samson S-Phone is a 4-channel headphone mixer/amplifier built for studio monitoring or live cue mixes. It takes a main stereo input and lets you create custom mixes for up to 12 headphones across four channels, with three 1/4" TRS headphone outputs per channel (one front, two rear). Each channel has its own volume, 8-segment LED metering, mute switch, and ST/2CH mode switch.

Per channel, you've got a stereo aux input for "more me" mixing, balance control to blend main/aux or pan L/R, and a 2-band EQ (low at 100 Hz shelving +/-12 dB, high at 10 kHz shelving +/-12 dB). Front panel master stereo aux input sends to all channels, plus master volume and metering. Runs clean with low noise and THD.

It's rackmount design, solid for band rehearsals, multitrack recording, or any setup needing independent headphone feeds without a full console.

Specifications

• Dimensions: 1.75 in x 19 in x 8.5 in
• Power requirements: 105-125 VAC, 60 Hz, standard IEC inlet, 29 W max
• Frequency response: 10 Hz to 32 kHz, +0/-3 dB
• EQ per channel: Low +/-12 dB @ 100 Hz shelving, High +/-12 dB @ 10 kHz shelving
• Max output: 140 mW @ 32 ohms, 385 mW @ 66 ohms per headphone out, min impedance 8 ohms

Condition

This item has been tested and is in good working condition. It does not come with original packaging. No power supply or cable included.
