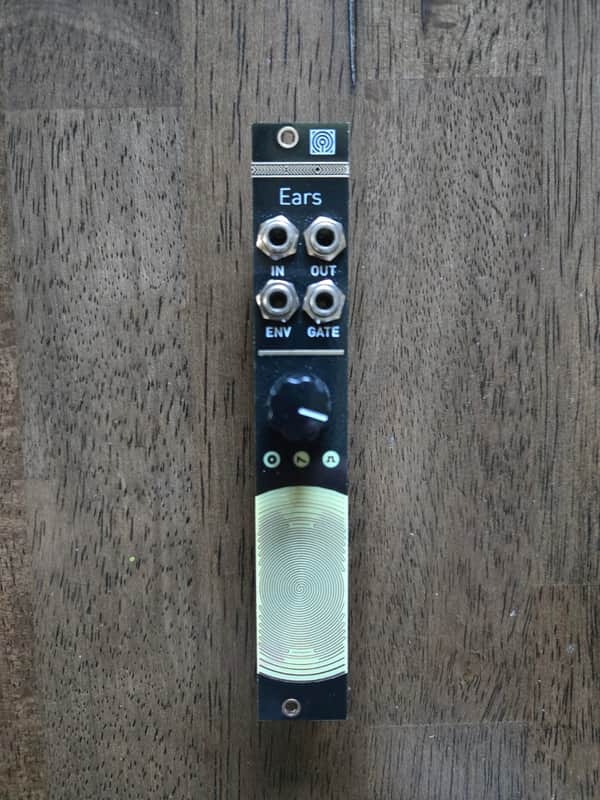

Sound Study Modular - Ears

Used and in excellent condition. Not in original packaging.

Features

• Built-in contact microphone soldered right under the front panel, turning the panel and your entire case into a microphone.
• Increasingly spaced ridges on the panel, generating sonically interesting pulses or impulse combs when rubbed. Strike, pick or scratch digital resonators like Rings, Elements or the 4ms SMR.
• High-quality amplification stage suitable for external contact microphones, electro-acoustic instruments like guitars, or plain line-level signals.
• Envelope follower, translating the decaying amplitude profile of a tap into an envelope CV.
• Gate detector, translating taps into gate signals.
• Envelope follower and gate detector can process external signals.

Specifications

• Audio amplifier with 1M input impedance, up to 40dB of gain.
• External input bypassing the built-in contact microphone.
• Envelope follower with 3 preset attack and release times (adjustable by jumper).
• Gate detector with 3 preset sensitivity levels (adjustable by jumper) and +8V gate output.
• Three indicator LEDs: amplifier clipping (red), envelope follower level (white), gate detector activity (orange).

Technical characteristics

• Width: 4HP
• Depth: 25mm
• Current draw:
• • +12V: 5mA
  • -12V: 5mA
