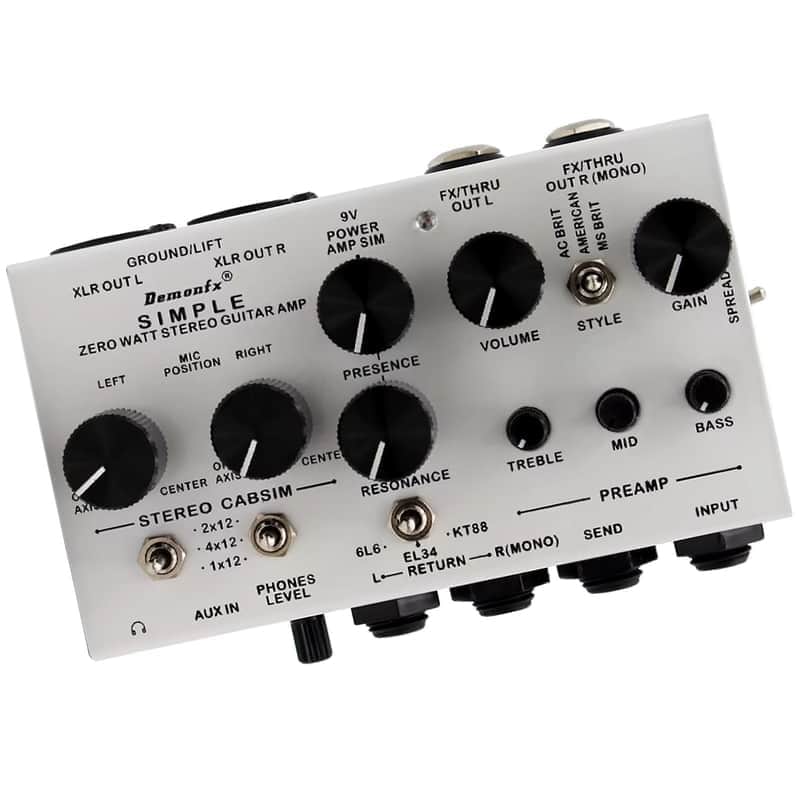

Demonfx SIMPLE DI Box Effect Pedal Preamp Simulator Power Amp Simplifier Pedal Stereo Cab Sim for Electric Guitar

Great little DI from Demonfx that really packs a punch. Chock full of options depending on how you wnat to set it up. Only a few here

Stereo Cab sim, preamp control.

Functions:

1. Input : Connect the guitar or other instrument here.
2.Send : The fx send output is after the preamp amp power amp stages, ready to feed your modulation and ambience effects.
3.return Right (mono): Connect the right (mono) output from your stereo effects here.
4. return Left: Connect the left side of your effects here. If this input is unconnected,the left side will take the signal from the FX Return Right (mono) side.
5.OUT R : If selected" FX",Carries the right side output . If selected"SUM MONO", the Right side will sum both outputs.
6. OUT L : If selected "FX",Carries the left side output . If selected "THRU", the input signal (bypass).
7.XLR Right : Carries the Right side output in a balanced signal.
8.XLR Left : Carries the Left ide output in a balanced signal.
9. Aux In : The auxiliary input receives a signal from an mp3 player, phone, or any audio device.
10.Headphone : Connect your headphones here.

Specifications:

Headphone Power: 120mW @ 32 Ohm

Input impedance: 500K ohm

Out impendance:.10K ohm

Weight: 460g

Power Supply: DC IN:9V ~ 15 V, 100 mA ( not supplied)

Thanks from The Earth City Sound Company
