The Gateway to Modular Exploration

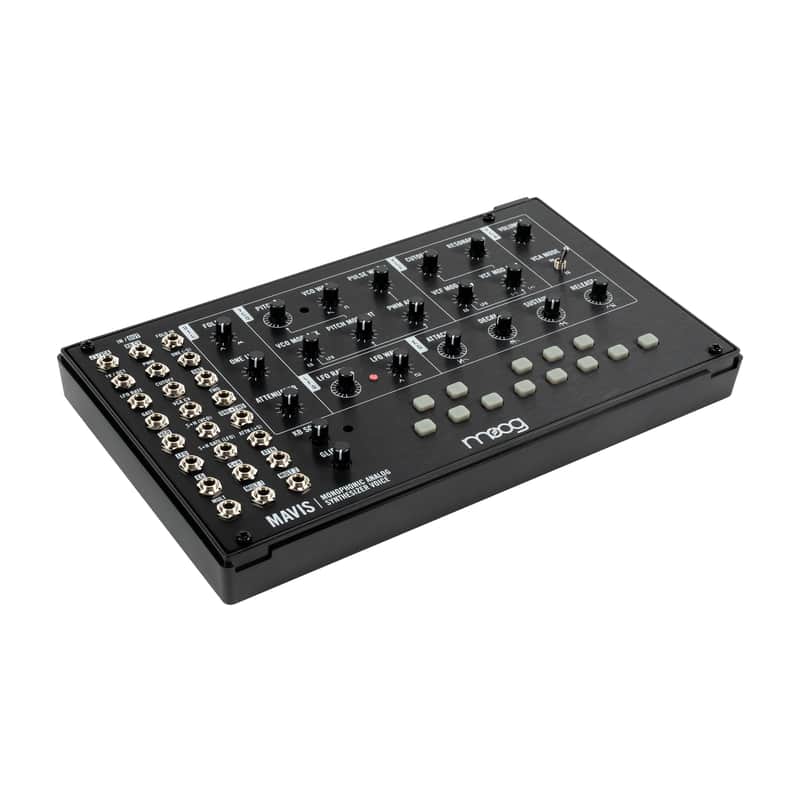

Are you looking to get hands-on with the legendary Moog sound in a way that’s affordable, deeply educational, and incredibly fun? Tired of pre-built instruments that leave you wondering what’s happening "under the hood"? The Moog Mavis is the perfect choice! Meticulously created as an accessible, "build-it-yourself" analog synthesizer kit, Mavis invites you to assemble your own instrument, giving you a unique connection to its circuits before you even plug it in—and the best part? Absolutely no soldering is required.

The Right Amount of Power and Design

Designed as both a standalone desktop synth and a flexible 44HP Eurorack module, Mavis is as versatile as it is compact. While it stays true to the classic Moog philosophy, it introduces fresh, "exotic" elements—most notably, the first-ever diode wavefolder on a Moog instrument. This addition allows you to blend traditional, fat subtractive synthesis with aggressive, additive wavefolding, opening up a range of metallic, complex, and gritty tones that you won't find on any other Moog. It’s a powerful, personality-driven tool that makes learning the art of synthesis approachable for everyone.

Perfect Connections and Tactile Control

Mavis offers the ultimate solution for those ready to dive into the world of control voltage (CV). Featuring a 24-point patch bay, you have total authority to route signals, create unusual modulation paths, and integrate it seamlessly with your existing semi-modular gear or Eurorack setup. With its onboard 1-octave keypad and dedicated knobs for glide and scaling, you can start making music immediately without needing a separate keyboard. Whether you’re experimenting with the Sample and Hold circuit for random sequencing or using the flexible DC-coupled mixer, Mavis is designed to grow with your studio.

Everything You Need to Get Started

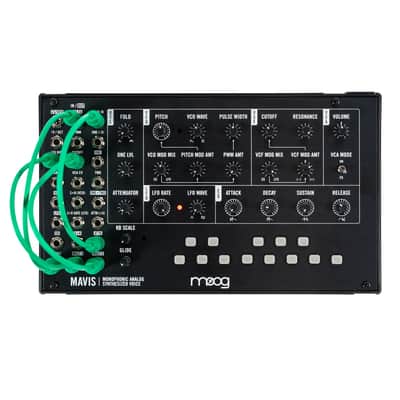

Because Mavis is a semi-modular instrument, it is "patched" internally, meaning it will produce sound as soon as you assemble it—no cables required. However, when you're ready to break those internal norms, the included patch cables allow you to rewire the instrument's signal flow entirely. The kit comes complete with everything you need, including the PCB, front panel, enclosure, protective cover, calibration tool, and patch cables. It is the perfect blend of DIY satisfaction and professional analog power.

Key Features:

• No-Solder DIY Kit: A complete build-it-yourself analog synthesizer that assembles in minutes with no soldering required—perfect for beginners and educators.
• First-Ever Moog Diode Wavefolder: Combines traditional subtractive synthesis with a West Coast-style diode wavefolder for metallic, aggressive, and harmonically rich textures.
• Analog Sound Engine: 100% analog VCO with continuously variable pulse width modulation (PWM) and a classic Moog -24dB Ladder Filter.
• 4-Stage ADSR Envelope: Full control over your sound’s contour for everything from percussive plucks to evolving pads.
• 24-Point Patch Bay: Deep semi-modular connectivity (1/8" jacks) for internal rerouting or integration with Eurorack systems.
• Built-in Utilities: Features a DC-coupled mixer, passive multiples, attenuators, and offset generators for advanced signal processing.
• Eurorack Ready: Can be removed from its protective enclosure and mounted as a 44HP module in any standard Eurorack case.
• Tactile Performance: Includes a built-in 1-octave keyboard with glide and scaling, allowing for immediate playability without external gear.

Specifications:

• Sound Engine: 100% Analog (VCO, VCF, VCA, LFO, ADSR).
• Oscillator: Sawtooth to Square variable waveshape with PWM.
• Filter: 24dB/Octave Moog Low Pass Ladder Filter.
• Patchbay: 24 x 3.5mm (1/8") patch points.
• Audio Output: 1/8" (3.5mm) TRS Headphone/Line Output.
• Power: 12V DC (Included) or Eurorack power (26mm depth).
• Dimensions: 9.0" x 5.25" x 1.5" (229 x 133 x 38 mm).
• Weight: 0.95 lbs (0.43 kg).
