Imparting a dark and tape-like quality to your sound, this analogue delay offers a rich and distinct character for you to wallow in luxury, self-righteousness, and filth.

Using the tone and feedback controls, you can shape your repeats to be much more than simple reproductions of the input. Play right on the threshold of feedback—molding it into a low thundering growl or a screeching wail—or let your echoes slowly fade as the dynamic output filter darkens each repeat.

A random delay time modulation adds a true tape feel, like a reel-to-reel motor spinning not quite perfectly. Full CV capabilities allow you to control delay time and/or feedback with any external source, such as an expression pedal.

────────────────

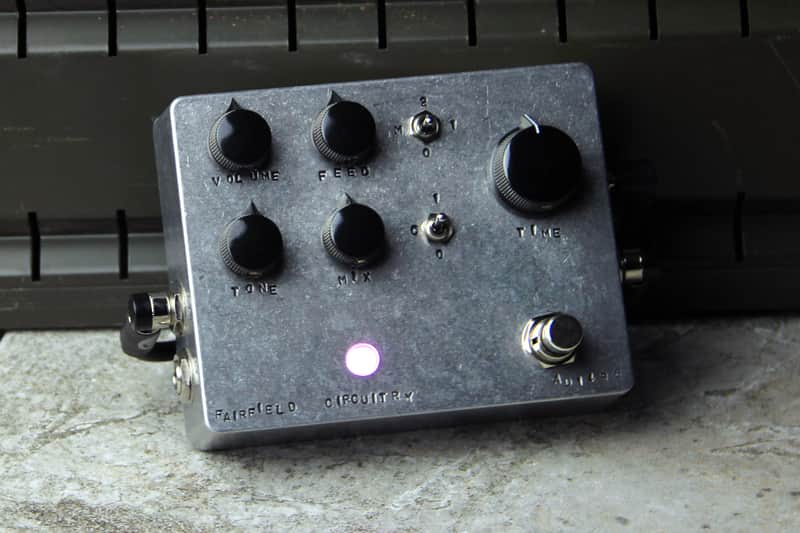

CONTROLS

VOLUME: Output level, plenty of gain available

MIX: Balance between dry and wet signals

TONE: Adjusts bass/treble balance of repeats

FEED: Amount of feedback

TIME: Delay time (50–500 ms)

C (Compression): 0 = Light, 1 = Heavy

M (Modulation): 0 = Off, 1 = Light, 2 = Heavy

────────────────

FEATURES

Discrete JFET compressor in feedback path (prevents distortion, shapes dynamics)

Random modulation of delay time for tape-like instability

Voltage-controlled low-pass filter (VCF) that darkens repeats dynamically

CV jack: Default controls feedback, re-assignable via internal micro-switches

────────────────

SPECIFICATIONS

Bypass: True bypass

Delay time: 50–500 ms

Input impedance: 1 MΩ

Output impedance: 1 kΩ

Power: 9–9.6 VDC (center negative, regulated)

Current draw: 60 mA

Dimensions: 4.7 × 3.8 in enclosure

Weight: —

Jacks: ¼" mono in/out, ¼" stereo CV in

────────────────

NOTES ON POWERING

Meet Maude was designed for regulated 9–9.6 VDC center-negative power supplies. Protected against reverse polarity and overvoltage. No battery connection available

────────────────

TAGLINE

Analogue delay with dark, tape-like character and unpredictable charm.
