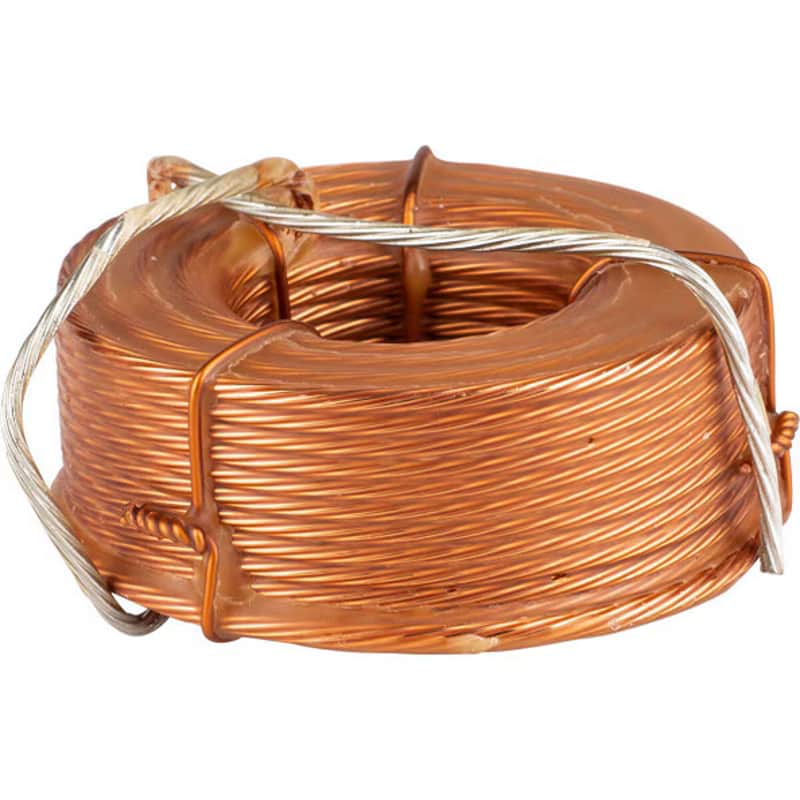

(2) Jantzen Audio 0.30mH 15 AWG Litz Wire Wax Inductor 2026 - Pair - NEW

(2) Two Jantzen Audio 0.30mH 15 AWG Litz Wire Wax Inductor - Pair - Brand New

Jantzen Audio Litz Wire Wax Inductors Product Features

The Litz Wire Wax Coil is the only wax impregnated litz wire coil on the market.

The Litz Wire Wax Coil was co-engineered with Audiothlon in Poland.

Audiothlon was looking for an inductor with a price-point and performance level placed somewhere in the middle between wire-based and foil-based inductors.

The advantage of Litz Wire Coils is that they have many of the advantageous properties of foil-based inductors but are smaller in size and lower in cost.

Depending on the specific crossover design, the litz wire coils can be a good substitute for foil-based inductors.

Litz wire enables inductors to have reduced skin effect and lowered resistance, which in turn offers more dynamic headroom, compared to single wire-based inductors.

The wax impregnation secures the integrity of the windings and greatly reduces unwanted distortion and microphonic effect

Technical Data

• Made from ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
• Available in 14 AWG (7 x 0,63 mm stranded wires) and 15 AWG (7 x 0.5 mm stranded wires)
• Wax impregnated to greatly reduce unwanted distortion and microphonic effect
• The wire is designed to reduce skin and proximity effect losses in conductors up to frequencies of approx. 1 MHz
• Inductance tolerance: ±3%
• DCR (coil resistance) tolerance: ±5%

Electrical Properties

• Inductance: 0.3000 mH
• DCR: 0.1600 Ω
• Wind. Wire: 1.40 mm
• AWG: 15

Dimensions

• Inner ø: 25 mm
• Outer ø: 58 mm
• Height: 20 mm

Product Details

Brand

Jantzen Audio

Model 000-0030

Part Number 255-908

UPC848864055800

Product Specifications

DCR 0.17Ω

Inductance 0.3mH

Inductor Type Air Core

Wire Gauge15
