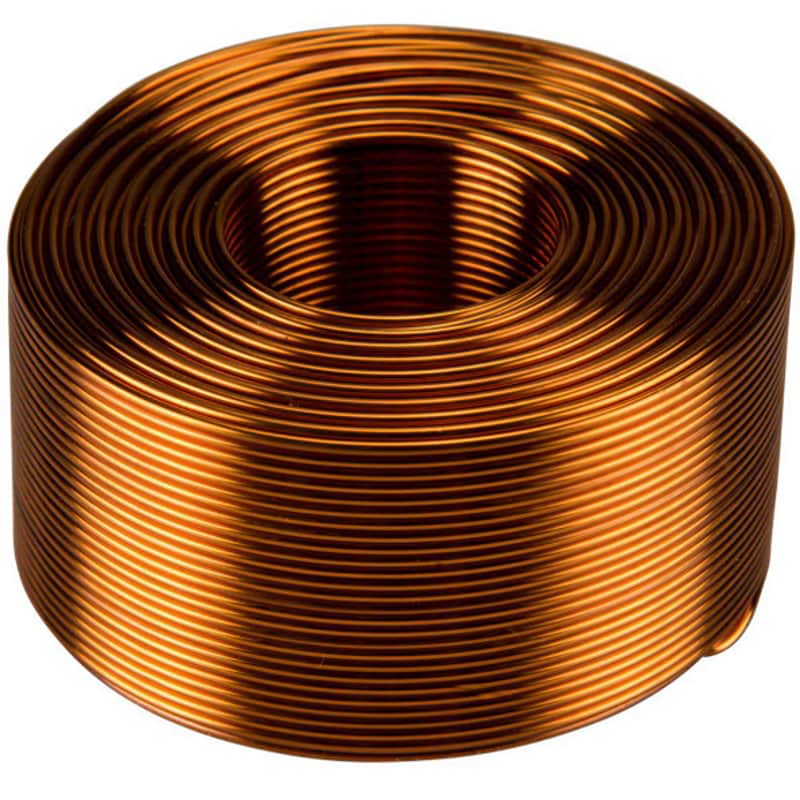

(1) Jantzen Audio Jantzen Audio 6.0mH 18 AWG Air Core Inductor Crossover Coil 2026 - Single - NEW

Jantzen Audio 6.0mH 18 AWG Air Core Inductor Crossover Coil - Brand New

The Jantzen Audio Air Core Crossover Coil is a versatile inductor designed for use in virtually any loudspeaker crossover position. Its self-supporting air-core construction and tight tolerances make it a reliable choice for precision crossover design.

Key Features

• Suitable for use in any crossover position
• High-purity copper wire construction
• Baked wire bonding lacquer creates a self-supporting, distortion-free inductor
• Self-supporting design eliminates the need for plastic bobbins
• Tighter windings compared to coils wound on plastic bobbins
• Inductance tolerance of ±3%
• DCR (coil resistance) tolerance of ±3%Jantzen Audio Air-Core Inductor Crossover Coils Product Features

The Air Core Wire Coil is a very versatile coil that be used on any crossover position.

It features high-purity copper wire and is made with baked wire (bonding lacquer) that creates a perfectly shaped self-supporting and distortion-free inductor.

The modern self-supporting design means there is no need for plastic bobbins and that we can make air core coils with tighter windings compared to coils wound on a plastic bobbin.

Low inductance tolerance of +/-3%.

Technical Data

• Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire with insulation and bonding lacquers
• Inductance tolerance: +/- 3%
• DCR (coil resistance) tolerance: +/- 3%

Electrical Properties

• Inductance: 6.0000 mH
• DCR: 1.4500 Ω
• Wind. Wire: 1.00 mm
• AWG: 18

Dimensions

• Inner: ø 25 mm
• Outer: ø 60 mm
• Height: 30 mm

Product Details

Brand

Jantzen Audio

Model 000-1958

Part Number 255-286

UPC844632024399
