NEXT-GENERATION GUITAR COMPRESSOR FOR EXPRESSIVE PLAYERS

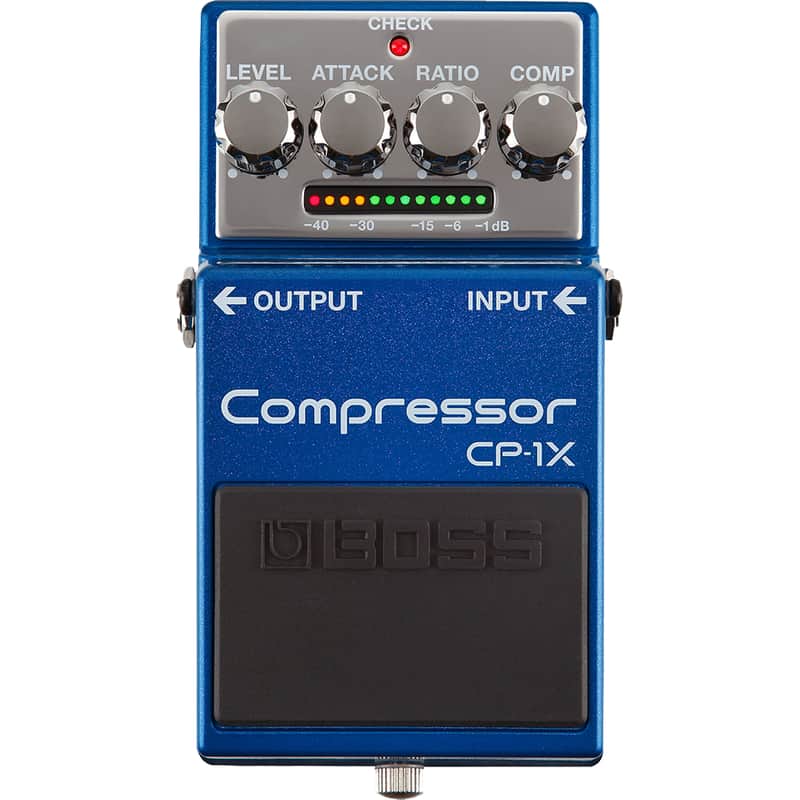

Powered by BOSS’s MDP technology, the CP-1X is a new type of multiband compressor for guitar that preserves the character of your instrument and technique for unlimited musical expression. Intelligent processing analyzes your signal in multiple dimensions as you play, providing advanced dynamics control that never colors or muddies your tone like typical stompbox compressors can. The simple, four-knob interface makes it easy to dial in sophisticated results, while the handy gain reduction indicator always shows you how much compression is being applied. Optimized for all types of guitars, the CP-1X offers next-generation performance for every style of music.

Specifications

Bypass: Buffered bypass
Indicators: Check (battery status), gain reduction

Input / Output:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Controls:
Controls: Comp, ratio, attack, level
Switch: Pedal switch

Connections:
Input Jack: 1/4" phone
Output Jack: 1/4" phone
Power Input: DC in

Power:
Power Supply: 9V battery or AC adapter (optional)
Working Voltage: 18 V
Current Draw: 90 mA
Battery Life: Approx. 2 hours (alkaline)

Accessories:
Included: Safety/notes leaflet, 9V battery
Optional: AC adapter (PSA series)

Dimensions & Weight:
Width: 73 mm (2-7/8")
Depth: 129 mm (5-1/8")
Height: 59 mm (2-3/8")
Weight: 450 g (1 lb)
