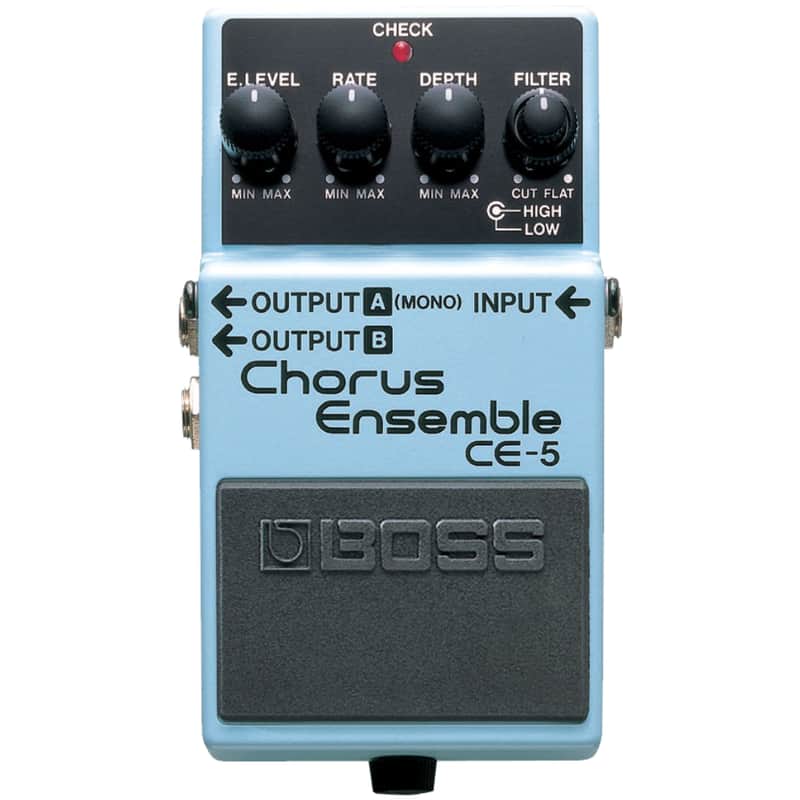

The CE-5 Chorus Ensemble is BOSS' ultimate compact chorus pedal, covering a wide frequency range and featuring high- and low-cut filters. This lets users create any kind of chorus effect--from a mild, natural chorus to the clear and penetrating stereo chorus effect popular in contemporary music.

Specifications

General:
Bypass: Buffered bypass
Indicator: Check indicator (battery status)

Input / Output:
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Controls:
Controls: High filter/low filter, depth, rate, effect level
Switch: Pedal switch

Connections:
Input Jack: 1/4" phone
Output A/B Jacks: 1/4" phone
Power Input: DC in

Power:
Power Supply: 9V battery or AC adapter (optional)
Current Draw: 55 mA
Battery Life: Approx. 6.5 hours (alkaline)

Accessories:
Included: Safety/notes leaflet, 9V battery
Optional: AC adapter (PSA series)

Dimensions & Weight:
Width: 73 mm (2-7/8")
Depth: 129 mm (5-1/8")
Height: 59 mm (2-3/8")
Weight: 425 g (15 oz)
