The 4MS QCD Expander is a 12HP Eurorack module designed to expand the capabilities of the 4MS Quad Clock Distributor (QCD). It transforms the QCD into a non-linear sequencer by adding features to each of the QCD's four channels. These features include a multi-mode output jack (INV OUT), a CV-controlled trigger delay or pulse width, and attenuverters for all CV input jacks. Key features of the 4MS QCD Expander:

• Multi-mode Output (INV OUT):Each channel has an additional output jack (INV OUT) that mirrors the tempo of the main QCD output. This output can be switched between three modes:
• • Delayed Trigger Mode: Outputs a trigger delayed from the QCD's main output.
  • Inverted Gate Mode: Outputs a gate signal that turns the main QCD output on and off.
  • Shuffle Mode: Outputs a trigger signal from the QCD main unit and doubles the speed from the INV OUT jack to create a shuffled trigger.
• Trigger Delay/Pulse Width Control:Each channel has a knob and CV input to control the trigger delay time (in Delayed Trigger mode) or pulse width (in Inverted Gate mode).
• Attenuverters:All CV input jacks have attenuverters, allowing for precise control over the amount of modulation from external sources.
• Div/Mult CV Attenuator:A dedicated knob allows you to control how much the Div/Mult CV signal on the main QCD affects the tempo, enabling precise tempo modulation between channels.
• LED Brightness Control:A trimpot on the front panel allows you to adjust the brightness of the module's LEDs.

Functions added by the Expander:

• Self-patched evolving rhythms: The module allows for creating rhythms by self-patching the INV OUT jack.
• Swing/shuffle patterns: The Shuffle mode creates swing or shuffle patterns by doubling the tempo and adding a delayed trigger.
• Control over standard rhythmic patterns: The Expander adds greater control over the standard rhythmic patterns of the QCD.

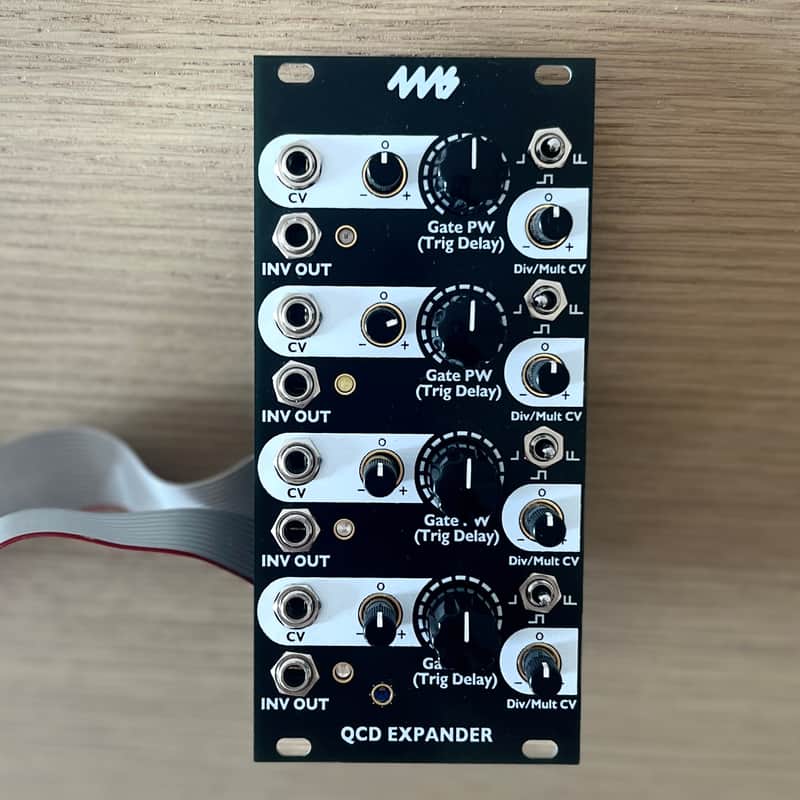

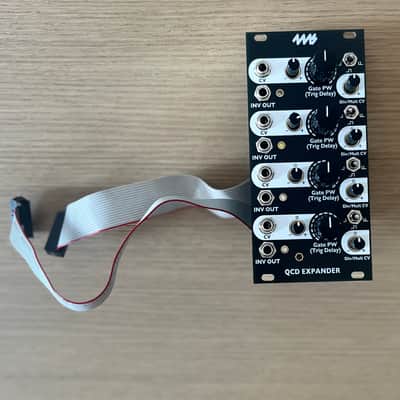

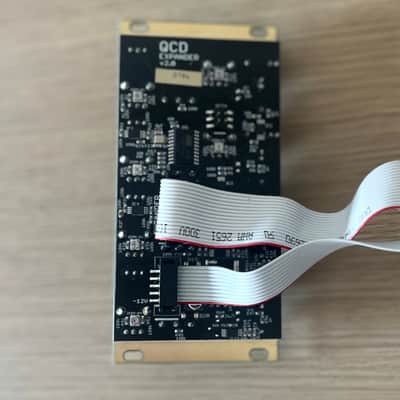

Fully Functional, Excellent condition. See Photos. We check things over and pack well for shipping.  Sold as is, No Returns. Reverb Safe Shipping
