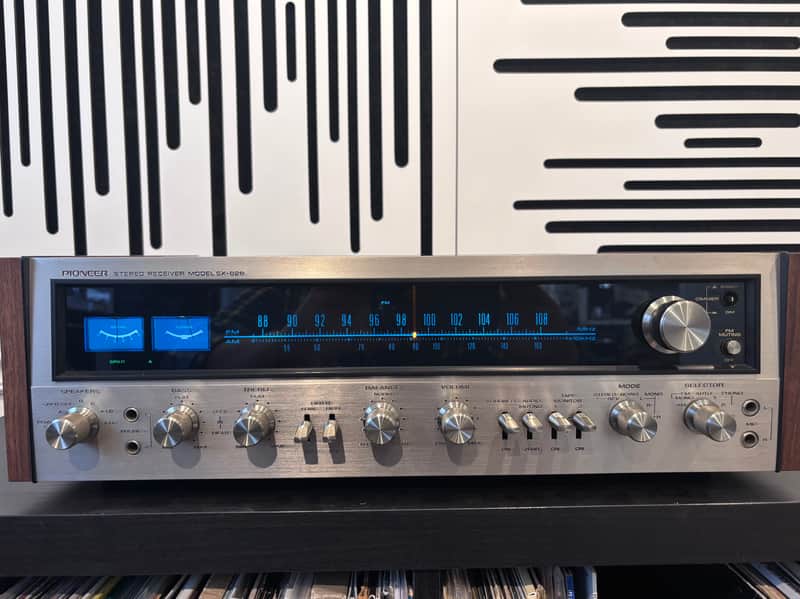

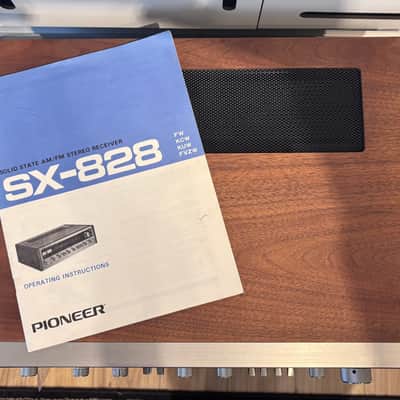

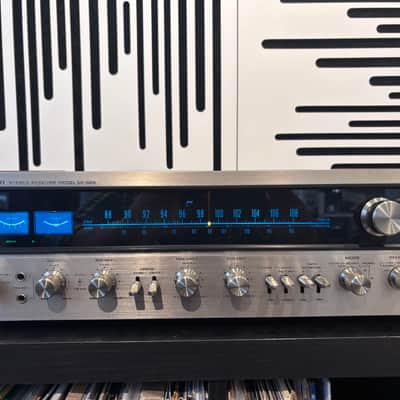

Pioneer SX-828 AM/FM Stereo Receiver (1972-74) in excellent condition. Includes original manual. WHY BUY THIS UNIT:

- Top-of-the-line Pioneer (early 70s) — flagship build quality

- Warm, powerful analog sound — classic vintage signature

- Excellent FM tuner section — highly sensitive and stable

- Pre-out / main-in flexibility — rare and valuable feature

- Wood cabinet + blue dial — strong collector appeal

- Highly sought-after model — increasing value in vintage market

If you'd like to see our work, you can follow us on our social media. Thanks for watching.

Instagram: @archerhifi

Facebook: Archer High Fidelity

DESCRIPTION

The SX-828 is a big power AM/FM stereo receiver with advanced circuit design, outstanding FM selectivity and sensitivity, and linear scale tuning dial.

Here, in one of Pioneer's most prized packages, is a wealth of outstanding performance in an AM/FM solid state stereo receiver.

The SX-828 is another in the long, proud line of advanced stereo components from Pioneer - and certainly one of the best.

For music power that will fill any-sized room with clear, rich sound, the SX-828 features up to 270 watts (at 4 ohms).

For FM selectivity and sensitivity that has no peer in a unit of this size, the unit features a large linear scale tuning dial, the latest solid state circuitry, and a pair of FM tuning meters.

And, finally, for the supreme versatility that is so necessary to quality hi-fi today, it provides two tape monitor circuits for tape-to-tape duplication, and lets you use up to two turntables, three sets of speaker systems, two microphones and even too sets of headphones.

All in one handsomely-designed, ruggedly built unit from the quality stereo people at Pioneer.

SPECIFICATIONS

Tuning range: FM, MW

Power output: 54 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 80kHz

Total harmonic distortion: 0.5%

Damping factor: 40

Input sensitivity: 2.6mV (mic), 0.115mV (MC), 2.7mV (MM), 200mV (DIN), 200mV (line)

Signal to noise ratio: 85dB (MM), 95dB (line)

Output: 200mV (line), 35mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 6 x FET, 4 x IC, 55 x transistors, 36 x diodes

Dimensions: 485 x 150 x 375mm

Weight: 14.8kg

Local pick up / inspection / purchase available at Archer High Fidelity in Falls Church, VA. We are a vintage sales and service specialist covering the Washington DC metro area.

All major credit cards accepted, as well as PayPal, check on clearing, and Venmo.

Any other questions, please feel free to ask.
