Yamaha CR-820 Natural Sound Stereo Receiver

Yamaha CR-820 AM/FM Stereo Receiver (1977-80) in very good to excellent condition. Why Audiophiles love this unit:

- Yamaha “Natural Sound” signature — clean, accurate, and detailed

- 55 W per channel — plenty of power for most speakers

- Variable loudness control — rare and highly useful feature

- Excellent phono stage — great for vinyl setups

- Classic wood + aluminum design — timeless vintage aesthetic

If you'd like to see our work, you can follow us on our social media. Thanks for watching.

Instagram: @archerhifi

Facebook: Archer High Fidelity

DESCRIPTION

Accurately matched performance specifications, functions and controls give overall performance which fully measures up to Yamaha's high tuner, pre and power amplifier standards. The CR-820 offers an extremely wide range of output powers for which both noise and distortion are below the rated value, for wide dynamic range in actual use.

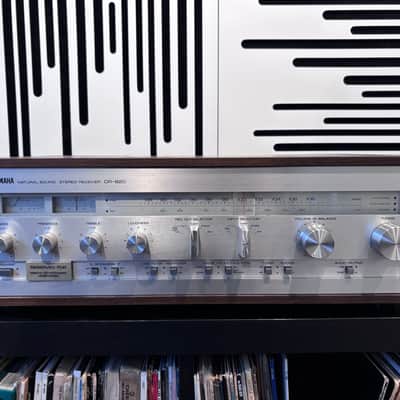

Both signal strength and centre-zero meters are provided, with the signal strength meter doubling as a signal quality meter on FM. Its brushed aluminum faceplate, analog tuning dial, and wooden cabinet give it a timeless aesthetic that fits perfectly into both classic and modern systems.

SPECIFICATIONS

Tuning range: FM, MW

Power output: 50 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.02%

Damping factor: 40

Input sensitivity: 2mV (MM), 120mV (DIN), 120mV (line)

Signal to noise ratio: 78dB (MM), 97dB (line)

Output: 120mV (line), 30mV (DIN)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 74 x transistors, 4 x IC, 1 x FET, 30 x diodes, 5 x zener diodes, 5 x LED, 4 x ceramic filters

Dimensions: 448 x 146 x 395mm

Weight: 12.2kg

Local pick up / inspection / purchase available at Archer High Fidelity in Falls Church, VA. We are a vintage sales and service specialist covering the Washington DC metro area.

All major credit cards accepted, as well as PayPal, check on clearing, and Venmo.

Any other questions, please feel free to ask.
