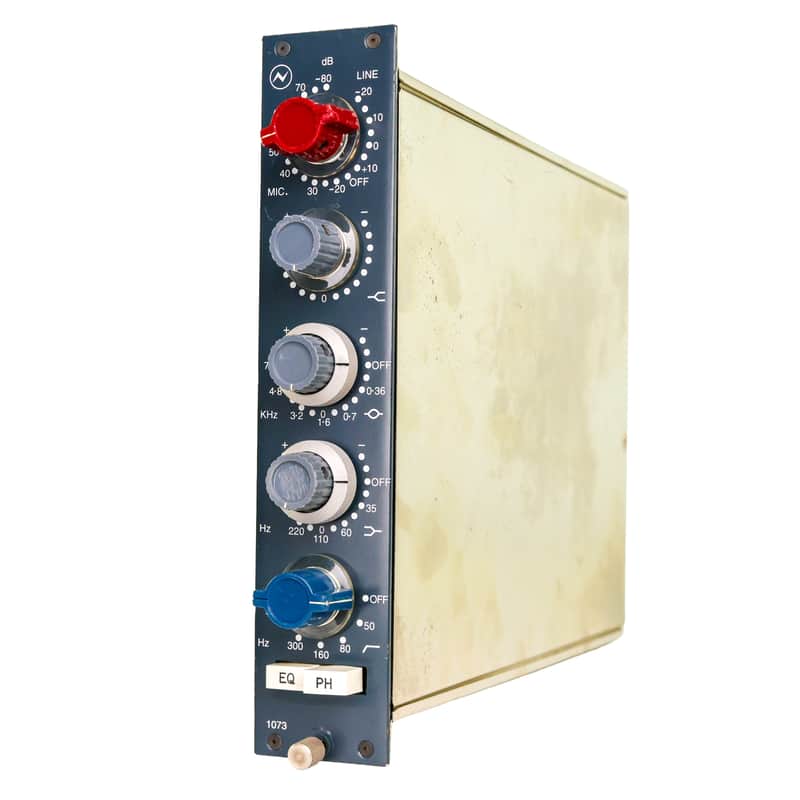

This unit is an original Neve 2074 broadcast module professionally converted to 1073 specification through the installation of vintage components and period-correct modifications. Recently recapped and in excellent working order.

The process of converting a vintage Neve 2074 module to 1073 specification is relatively straightforward, requiring minimal component changes. The 183/283 output card is populated, unnecessary wiring is removed and new wiring added, along with appropriate resistors and capacitors. The line trim pot is removed and replaced with a standard 1073 rotary attenuator. Most importantly, a mic input transformer is installed to complete the conversion. After these modifications, the 2074 is, for all intents and purposes, a fully functional 1073 mic pre/EQ.

Transformer complement includes all vintage original units: St. Ives L10468 mic input transformer and L31267 line input transformer, paired with a Marinair LO1166 output transformer — period-correct components consistent with original 1073 production. The discrete Class A gain stage features an original Motorola 2N3055 NPN transistor, with the 5.1K resistor removed as part of the conversion.

The Neve 1073 Microphone Preamp/3-Band EQ is a classic, discrete mic pre with 3-band EQ and hi-pass filter. Fat and pillowy low end, with the perfect midrange points and sweet 12k top end. The 1073 is legendary for its beautiful and unique sound, as demonstrated by its use in so many high-end studios, on so many famous recordings. The history of the 1073 goes back forty years, to May of 1970, when one era ended and another began. On May 8, the Beatles released their final album, Let It Be, and two days later, Rupert Neve released the original 1073 microphone preamplifier with EQ. It remains the most desirable Class A discrete transistor mic pre to this day.

Check out our to learn more about this legendary piece of recording history.

• Fixed 12 kHz high-shelf
• High pass filter at four frequencies: (50-80-160-300 Hz)
• Low EQ at four frequencies: (35-60-110-220 Hz)
• Hi-mid EQ at six frequencies: (360-700 Hz - 1.6-3.2-4.8-7.2 KHz)
• Also includes 30 dB of range for line gain or 60 dB for mic gain, phase reverse, and EQ bypass
