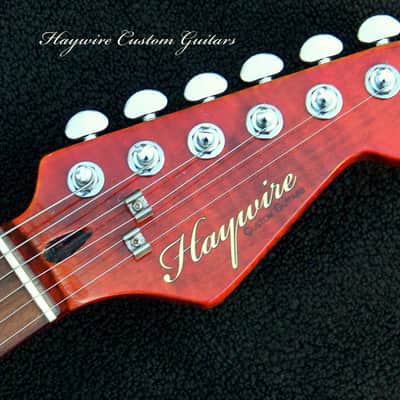

X-Light 6.2 lb. Cherry-Burst Stratocaster with Rosewood/Roasted Flame Maple Neck + 7 Sound Switching +Treble Bleed+ Working Bridge Tone+ Frets leveled, Crowned and Polished +Grover 406C Locking Tuners!!

From: The Haywire Custom Guitar Shop in South Carolina:

Instruments for Professionals

                                                          Haywire Custom Guitars USA Inc. South Carolina
                                                                                Haywire Custom Guitars.com

                                                                        We Ship Worldwide!

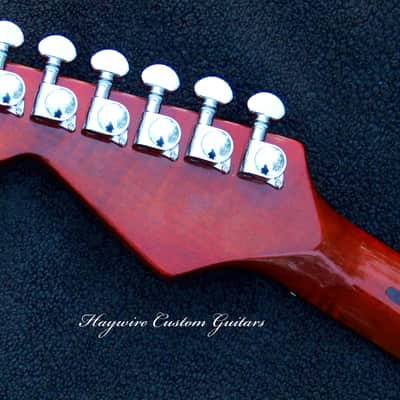

X-Light 6.2 lb. Cherry-Burst Stratocaster with Rosewood/Roasted Flame Maple Neck + 7 Sound Switching +Treble Bleed+ Working Bridge Tone+ Frets leveled, Crowned and Polished +Grover 406C Locking Tuners with Full Setup Completed!

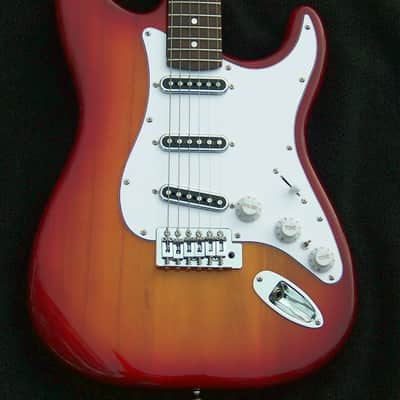

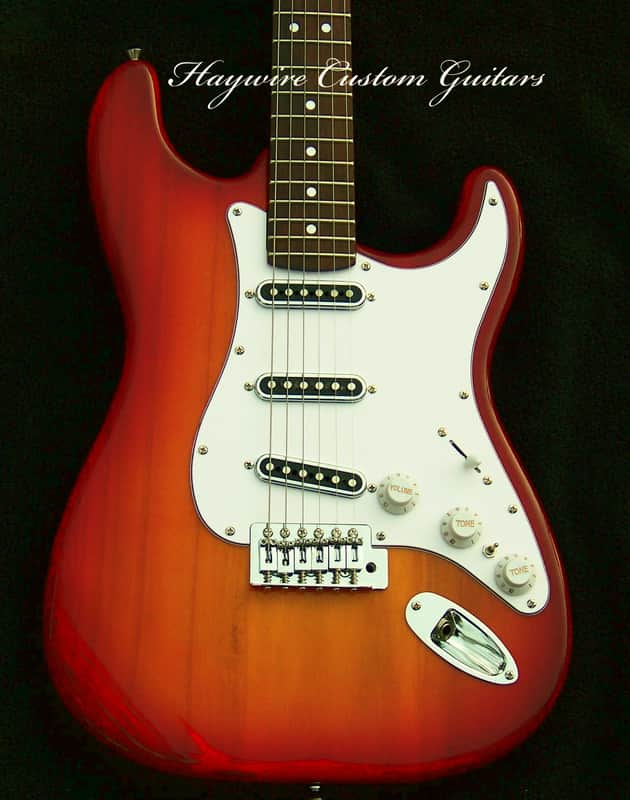

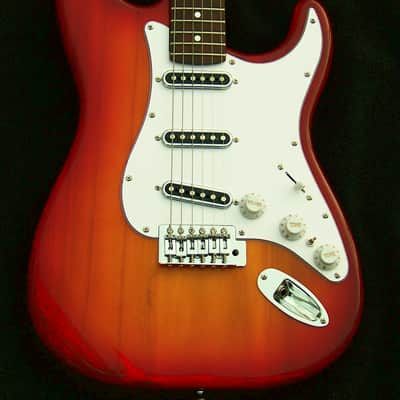

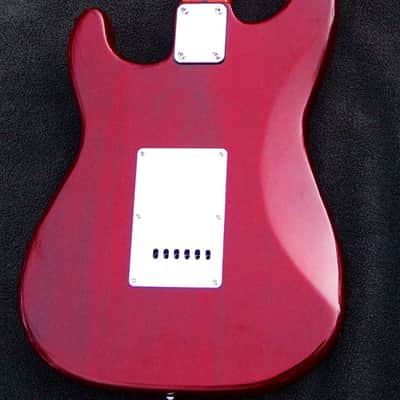

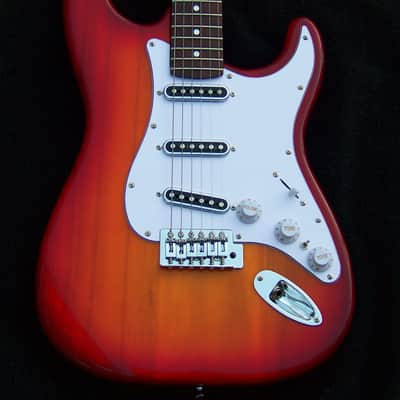

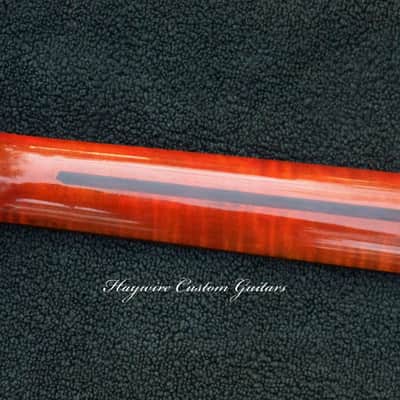

Haywire Custom Guitar Finish: Cherry-Burst Finish + 22 fret Rosewood/Roasted Flame Maple Neck 12" Radius Neck with Standard Thin back "C" Profile. Haywire Custom Guitars: Color: Cherry-Burst with White Guard and Chrome Ring pickup covers. Wood: Swamp Ash.

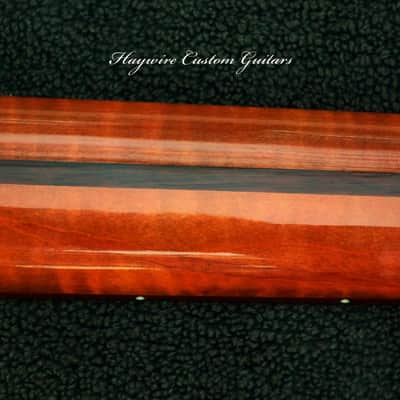

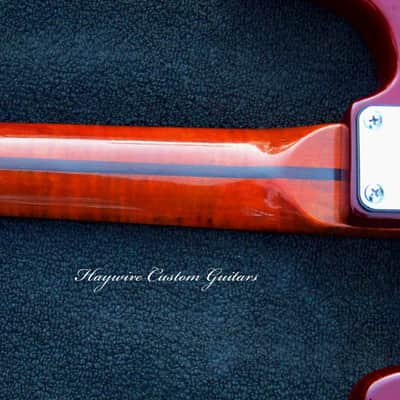

Custom Standard Thin "C: profile Neck: .079 at the first fret and .092 at the 12th fret. Nut 1-11/16 and medium jumbo frets.

                                  "Building satisfied players one Haywire Custom guitar at a time!"

Modified lightweight Strat guitar with Great Tone and Sustain with lots of resonance. New SRV Pickups + Modified with-all new hardware, Custom 22 fret and Noiseless SRV Hot Pickups+ a Working Tone Control on Bridge Pickup with a 7 Sound Switch Added Between the two Tones pots to obtain any conceivable 3 pickup combination you want and need as a player.
PLUS:

Treble bleed circuit installed + SRV Pickups, New tuners, strings and setup Included.

7 Way Switching includes-3 Single Coil and 2 Humbucking Modes.

Variable Treble Bleed Circuit included: keeps the tone you have on "10" throughout the entire range of the volume control circuit. Added to keep the highs from leaving your tone when the volume is decreased. By adding this circuit we can help you avoid the "muddy-tone" syndrome. Now your tone is much more controllable and articulate.

                                                   Haywire Custom Guitars Inc. USA-South Carolina

(Haywire Custom Guitars offers custom guitars made to their customer's specifications. The guitars are made with upgraded components at a reasonable price. They also offer custom guitar neck replacements, installations and custom guitar neck contours.) "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.

Matching Set of 3 New SRV pickups
plus: treble bleed circuit installed +SRV Pickups, New tuners, strings and setup Included
7 Way Switching includes-3 Single Coil and 2 Humbucking Modes !
Noiseless SRV Hot Pickups + Tone Control on Bridge Pickup.

SRV pickups: Our own proprietary SRV  ceramic pickups (Simulated Vintage Retro) provide excellent mid-range and punchy bass notes with noiseless clarity and a great signal to your amp. SRV’s deliver vintage tone, optimum output, balanced string response, and microphonic suppression. They’re specially voiced select custom guitar pickups that deliver masterful tone, overdrive, clarity, dynamics, transparency, versatility & a balanced tonal response.  These come standard with our guitars and loaded bodies at no extra charge. So, you get to try a free set of some of the best sounding pickups you’ll ever experience available only at Haywire Custom Guitars in a re-build or new build. They are brighter, punchier and more focused compared to other single coils. The top end is smooth, and bottom end a perfect match. Excellent on funk, disco, soul, and R&B tracks, these SRV single-coil pickups are ideal. You will love them for soloing. They have been used successfully by players for their power, tone, and clear gritty response on guitars for the last 25 years. Try them!

Plus
7 Sound Switch Added Between the two Tones pots

USA-Haywire Custom Shop 7 Sound Stratocaster Translation:

NORMAL Position 1 of the 5-way selector switch activates the bridge pickup alone by engaging the toggle switch at this point it will activate the neck pickup giving you the bridge and neck pickups together.

Likewise, with the 5-way selector switch in the second position with the bridge and middle pickups activated, a flick of the toggle switch adds the neck pickup to the equation which gives you ALL of the pickups together. Two choices now missing on a stock Strat.

Here's the switch run-down: Here's what you'll get after we added the 7 Sound Toggle Switch between the Tone Controls:

Position 1-Will give you tones and sounds reminiscent of the “Byrds” Rickenbacker tone.

Position 2-Will make all three pickups available at one time.

5-way switch pickup selections Your 2 new selections:
position 1 Bridge pickup alone bridge + neck in parallel
position 2 bridge + middle pickup in parallel all three pickups in parallel
position 3 middle pickup alone
position 4 middle + neck pickup in parallel
position 5 neck pickup alone
Haywire Custom Shop

Variable Treble Bleed Circuit included:
This mod keeps the tone you have on "10" throughout the entire range of the volume control.
We add a resistor capacitor network to the input and output of the volume control to
keep the highs from leaving your tone as the volume is decreased.
By adding this circuit, we can help you avoid the "muddy-tone" syndrome.
Now your tone is much more controllable and articulate! When the Treble Bleed Circuit is included:
Turning the volume control applies varying amounts of a specially tuned high frequency filter to the selected pickups. Now each pickup has the ability to produce a stronger, fuller tone and 50% less noise.

The variable treble bleed circuit is installed. This variable treble bleed/bypass circuit corrects the problem of high frequency losses, provides auto-adjustment of tone at reduced volumes and improves audio taper between 3 and 10.

Clear highs for 10 all the way down to 1.

We hear you.

THIS GUITAR HAS A WORKING BRIDGE TONE CONTROL!

In MOST Fender Stratocaster guitars, the tone control doesn't work for the bridge-only pickup on a Stratocaster.

It works on a few, approximately 1% of Stratocaster guitars whether made by Fender or by Squier, or Affinity, Fender Japan, Fender Taiwan, Fender Mexico, American (circa 1991) or Fender China and more have no tone control on the bridge pickup. The tone controls do work for the other four switch positions.

Guitarists for years have asked. Can we simply have a tone control on our bridge pickup? YES.

Pix, info, custom work, artwork, setup and Design by:
Haywire Custom Guitars

This guitar body has a very warm and crisp sound. It is built light and resonant for sustaining notes. The treble bleed circuit keeps it clear with a good strong signal all the way down. You can add extra bass with the tone controls. The middle pickup is a RWRP which is wired like a humbucker in positions 2 and 4 on the 5-way switch. Overall, a great choice for many styles and genres. Because of its very light weight, it is extremely and comfortable to play all night long.

Custom Shop Axes-without the Custom Shop Prices! Haywire Guitar Custom Guitars-Home of the "Gig Ready" Guitar! This Haywire Guitar comes with one year warranty on our workmanship from Haywire Custom Guitars. Call or write with any questions you may have call Rick:

7 Way Switching includes-3 Single Coil and 2 Humbucking Modes!
The pickups are specially made HOT SRV's over-wound about 10% as follows:

For Pick-Ups the ohms are:

Special Strat Bridge Pickup:
DC Resistance: 8.10K - 8.23K

Special Strat RWRP Middle Pickup:
DC Resistance: 7.58K

Special Strat Neck Pickup:
DC Resistance: 7.04K

Specially voiced selected custom guitar pickups that deliver masterful tone, overdrive, clarity, dynamics, transparency, versatility & balanced tonal response If you like Stevie Ray's Sound-You'll love these HOT Vintage Pickups with vintage style magnets!

Treble Bleed Circuit
Q-With the Treble Bleed modification installed:
How does it work?

A-It allows you to roll off your volume without losing the highs.
Would you like being able to use the volume control... without sacrificing tone?
Now You Can... with a Treble Bleed Circuit Mod added on this guitar!

As you turn your guitar's volume down, the pot allows some of the current to go to ground as opposed to the output. The frequencies that leave first are the highs, which leave the tone muddy and obscured without an "edge" on it to a discerning ear.

Your Stratocaster is now- Very Functional
Haywire Custom Guitars

Right Hand
Model: Stratocaster
                                       Haywire Custom Guitars: Haywire Custom Guitar Shop South Carolina

  Haywire Stratocaster Customs:

Style: Stratocaster upgrade + Country/Region of Manufacture: United States


• The body underneath the pick guard is the part of the guitar that is routed. this body is routed for HSH configuration, and able to accept universal pickup choices and various pick guard styles with different cutouts. For example, if you want a S-S-H, or H-S-S, S-S-S, H-H and S-H configurations.
• The body rout already cut, will accommodate all of these configs. All that is necessary is to decide which pickup configuration, then add the pickups to a guard to accommodate the pickup selection YOU need. Then drop back into your guitar with 3 perfectly fitting pickup slots.

Buyers please note: Haywire Custom Guitars offers custom guitars made to their customer's specifications if you have any questions, concerns or special requests then please ask before purchase. We are a Custom Shop featuring many custom options for players. Haywire guitars are made in South Carolina at a reasonable price just for players. We also offer custom guitar neck replacements, installations, parts replacements, repairs, new builds, refurbished instruments, custom pickups, extra wide necks and custom guitar neck shaving. "Building satisfied players one Haywire Custom guitar at a time!" Great Tone and Sustain with lots of resonance.

Our electronics, pickguards and pilot holes are added free of charge on used bodies, however if you have any specific electronic requirements, please ask prior to purchase.

We have our own house brand SRV pickups, but we have access to anything our customers need. We want you to be happy so please let us know exactly what you want before buying.
