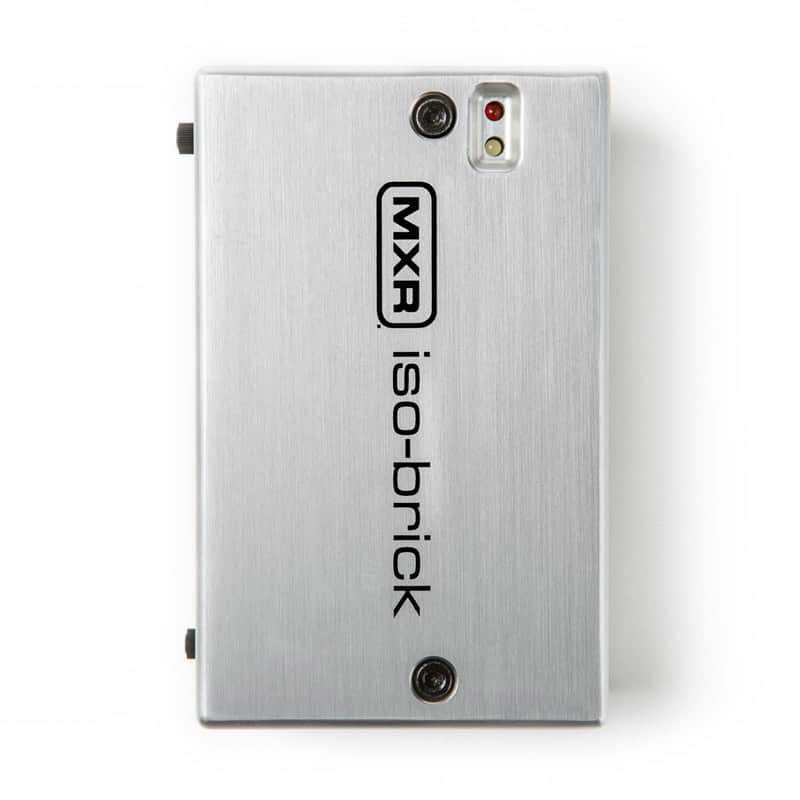

The MXR M238 Iso-Brick Power Supply delivers a compact and lightweight solution with abundant, silent DC power to run a diverse range of pedals. Designed to keep your pedalboard uncluttered and lightweight, it ensures dependable performance without unwanted noise or interference.
Main Features- Ten fully isolated outputs to eliminate ground loop noise
- Quiet, noise-free operation ideal for both analog and digital pedals
- Supports positive and negative ground pedals
- Variable outputs emulate the coveted “sag” effect of a drained battery
- Robust, tank-like construction with power on/off and connection status LEDs
Each output is tailored for various voltage and current needs:
- Two 9V outputs at 100mA
- Two 9V outputs at 300mA
- Two 9V outputs at 450mA
- Two 18V outputs at 250mA
- Two variable outputs adjustable from 6V to 15V at 250mA
The variable outputs offer unique tonal control by mimicking voltage sag, prized by vintage tone enthusiasts. Compact yet rugged, the Iso-Brick is the ultimate power solution to keep your pedalboard running cleanly and reliably through every gig.
SpecificationsInput
- 18V DC, 2 Amps regulated supply (positive barrel, negative centre, 5.5mm x 2.1mm plug)
Outputs
- 6–15V at 250mA (2 variable outputs)
- 18V at 250mA (2 outputs)
- 9V at 450mA (2 outputs)
- 9V at 300mA (2 outputs)
- 9V at 100mA (2 outputs)
(All outputs: positive barrel, negative centre, 5.5mm x 2.1mm)
