Tele Pure Vintage Pickups ~ Classic Winding & Design Performance Telecaster Pickup Set Bridge + Neck, Black

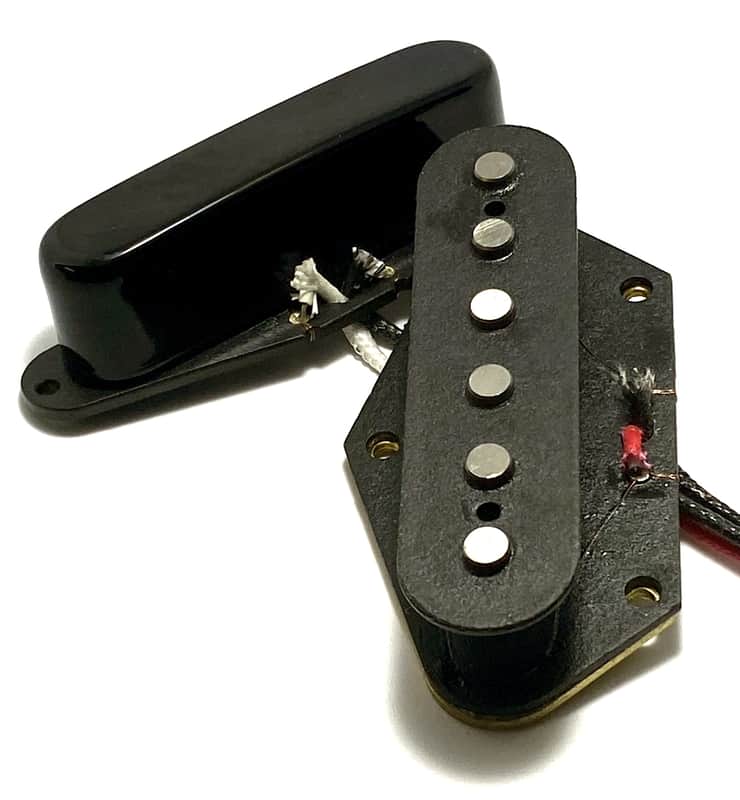

Dragonfire Pure Vintage Tele Pickups, AlNiCo Vintage Classic Winding & Design ~ Collaborative Tele Pickup Set: 1 qty Bridge Position Dedicated Pickup + 1 qty Neck Position Dedicated Pickup

Dragonfire Pure Vintage Tele pickups are offered to give you classic performance capability with warmth, depth and rich expression. These pickups feature outstanding construction for impressive results, premium experience, as well as fully enriched sound immersion and presentation. Designed, of course, with AlNiCo V classic magnet styling and vintage winding, the Pure Vintage produce in the best of throw-back play styles with superbly enticing delivery.

The black bridge features exposed non-staggered slug style chrome polepieces while the covered neck pickup styling comes in your choice of black, chrome or gold cover colors for classic Tele character. The neck pickup is Reverse-Wound and Reverse-Polarity (RWRP) to ensure the best possible set execution and collaboration when used in tandem with the bridge for hum-cancelling performance.

These Tele pickups come with a hot and a ground wire for easy installation and use with a 3-Way Switch. For individual neck or set purchases, we offer an optional 4-Way Switch Mod configuration for the neck pickup that will give you an additional ground wire for 4-Way Switching options. Contact us for details.

~~Product Highlights~~

*Dragonfire Pure Vintage Tele Pickup

*Alnico 5 Magnet Style

*Passive & Classic with Outstanding Winding

*2 Conductor Wiring (2 Wire Pickup Design)

*Wax Potted for Squeal Reduction, Avoidance or Elimination

*Cloth Wrapped Stranded Style Lead Wire Type

*Pickup Mounting Screws & Springs Included

*250K Pots & 0.022 Tone Caps Recommended (available separately)

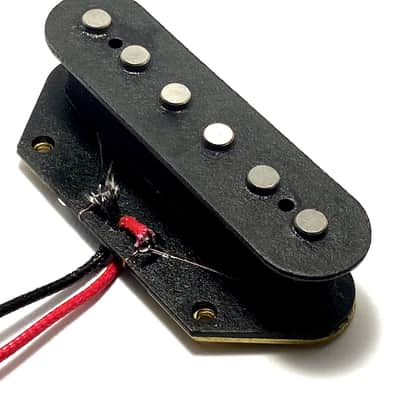

~~Bridge Pickup Approximate Measurements~~

*Output: Wound to ~6K

*Baseplate (at widest): ~72mm (Length) & ~38mm (Width)

*Cover Facing: ~71mm (Length) & ~20mm (Width)

*Overall Pickup Depth: 21mm

*Standard Tele Bridge Pickup Mounting Screw Pattern

~~Neck Pickup Approximate Measurements~~

*Output: Wound to ~5.4K

*Baseplate (at widest): ~80mm (Length) & ~20mm (Width)

*Cover Facing: ~65mm (Length) & ~15mm (Width)

*Overall Pickup Depth: 23mm

*Mounting Screw Spacing: 72mm

~~Installation Information~~

These two-wire pickups come with a colored hot and a black ground wire for easy installation (colors may vary from sample images provided). Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use basic information and general knowledge to successfully complete installation with your choice of diagram or instructions if needed.

If you’d like to update your wiring, switching, controls or functionality to upgrade your system, check out our custom Wiring Harnesses.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.

Detailed instructions for installation are not included. You should be able to use basic knowledge of wiring with the diagram or instructions of your choice. Take your time for installation; do not use power tools and do not over-tighten or apply too much pressure on components.
