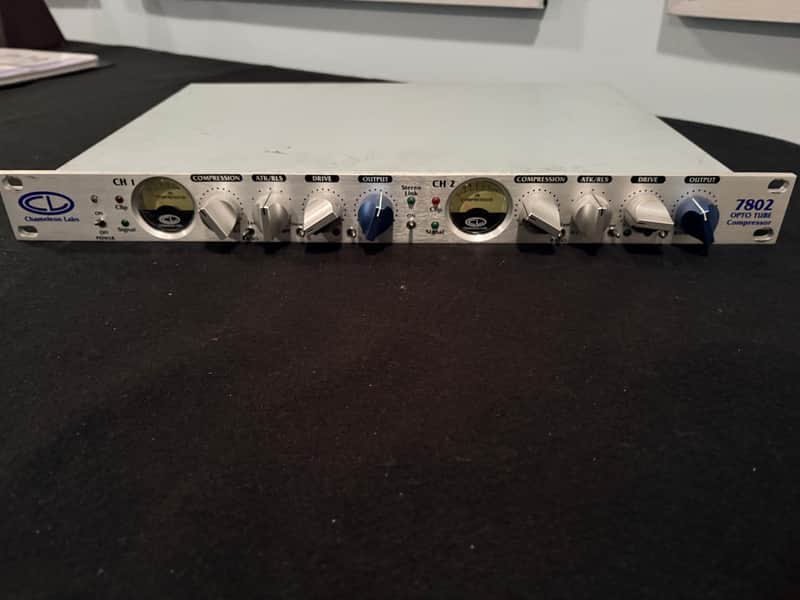

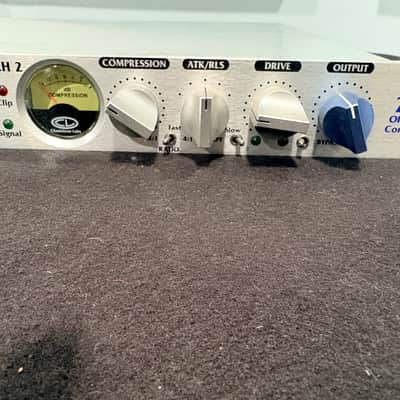

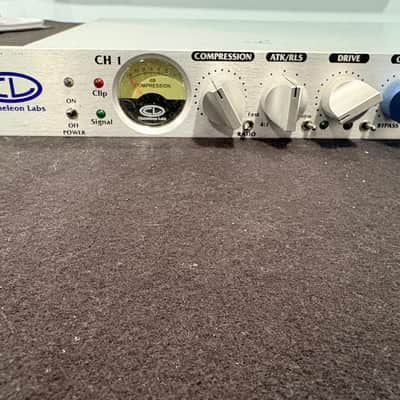

Chameleon Labs 7802 Stereo Opto Tube Compressor

Small scratch on face on right side, and some rack rash on top and bottom. Only ever used in my smoke free studio.

1U rackmount unit that combines vintage-style optical (opto/Vactrol) compression with a tube makeup gain stage for added warmth and harmonic character. It was praised for delivering smooth, professional-sounding compression at a budget-friendly price (originally around $700 street), often compared to higher-end “kilo-buck” units.

Key Features

•  Two-channel design with stereo link capability (for linked stereo operation; channels share control signals when linked, though some users note it requires manual matching or mods for perfect dual-knob control).

•  Vactrol optical electronics (using Perkin Elmer VTL5C2 LED/LDR elements in a feedback design) for smooth, natural, silky attack and release—classic opto-style glue and leveling.

•  Hand-selected 12AX7 vacuum tube (one shared for both channels) in the makeup gain stage, with a “Drive” control to dial in tube overdrive/harmonic distortion for color and warmth.

•  Controls:

•  Five-position attack/release selector (simplified but versatile; capable of fast attacks for punchy “VCA-style thwack” despite being opto-based).

•  Two-position ratio switch (2:1 and 4:1).

•  Output level control.

•  High-pass filter (HPF) switch on the sidechain (6dB/octave roll-off, 3dB down at 90Hz) to reduce low-end pumping.

•  Metering: LED indicators for input/clip levels, plus VU metering for gain reduction.

•  I/O: XLR balanced inputs, transformer-balanced outputs.
