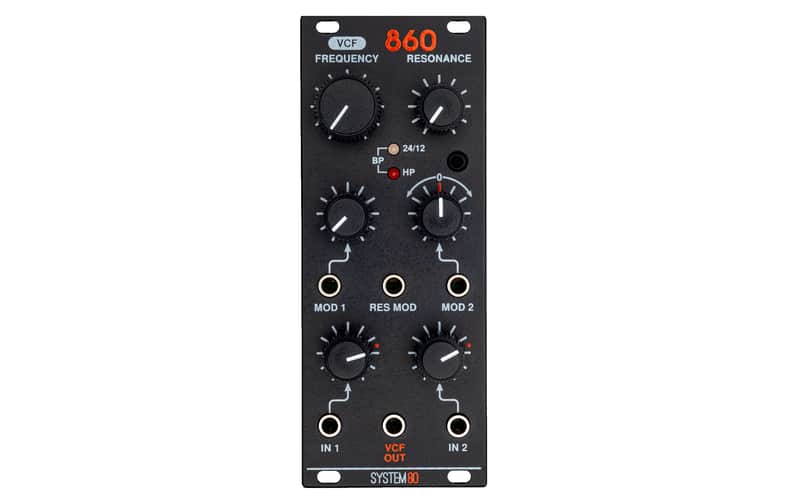

SYSTEM 80 860 MK2 : BRAND NEW : [DETROIT MODULAR]

Voltage Controlled Filter Overview

The System80 860MK2 is a 10 HP updated version of our popular JOVE filter. It is a Eurorack interpretation of the multi-mode filter found in the Roland Jupiter-6, a 1980s analogue polysynth.

The 860 MK2 replaces both the 14 HP JOVE and the 8 HP .  It has been updated and improved in several ways, including memory recall of the filter mode, a quad OTA filter core, internal voltage references, a fully attenuated 2 input audio mixer, and a steel back cover.

Features

• 4 modes: 24 dB low pass, 12 dB low pass, band pass and high pass
• Filter mode recalled between power cycles
• 2 input audio mixer
• 2 frequency CV inputs, one bipolar and one unipolar
• 1 resonance CV input, non-attenuated
• WIDTH 10 HP
• DEPTH 32 MM
