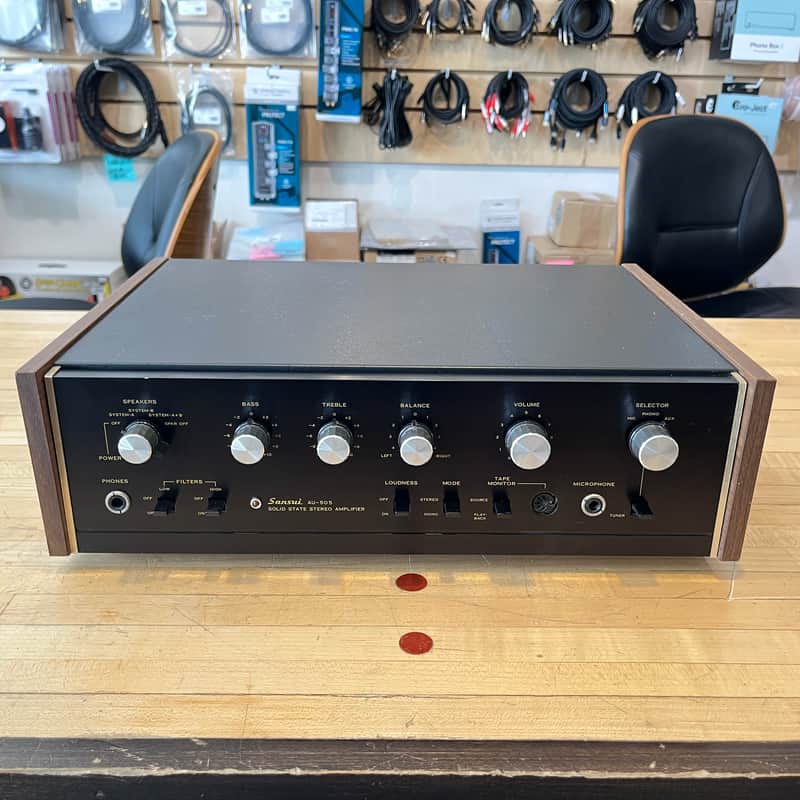

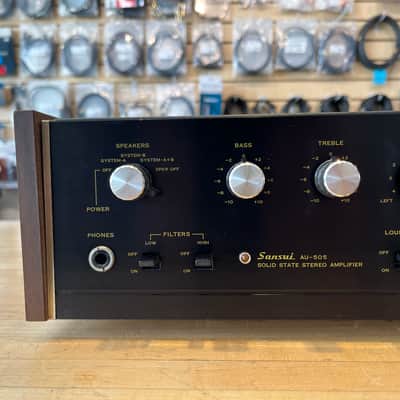

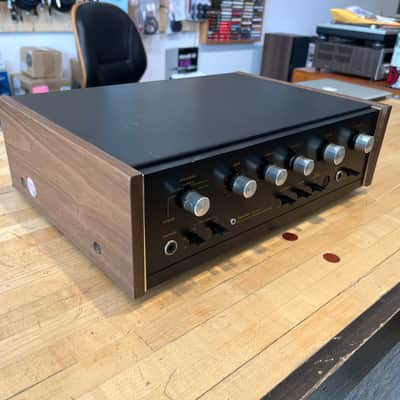

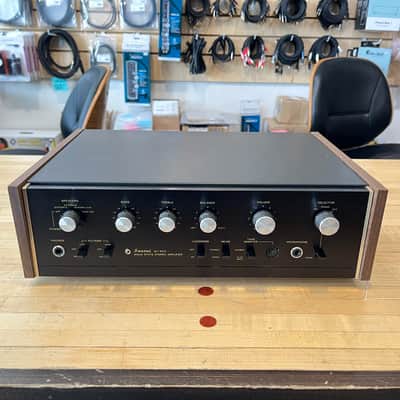

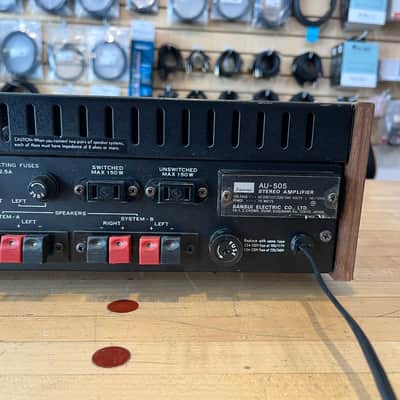

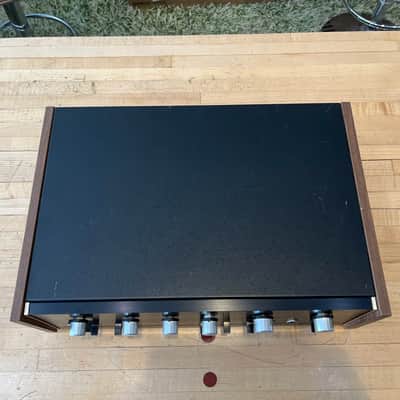

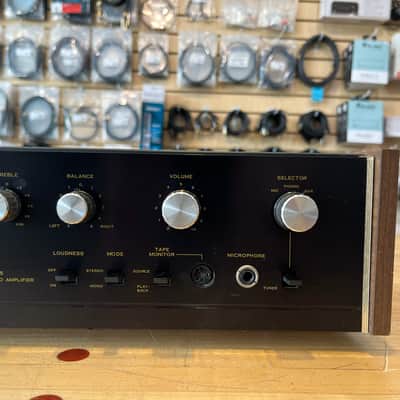

Sansui AU-505 Integrated Amplifier | Serviced & Tested

For sale is a vintage and recently serviced Sansui AU-505 Integrated Amplifier in very good, fully functional condition. Manufactured in Japan in the early 70s, this compact stereo integrated amp offers 12 watts per channel into 8 ohms. This unit has been serviced with a partial recap of the tone board and power amp board, as well as replacing a number of known problematic transistor part #s. Corrosive glue found on tone board that was cleaned. Bias voltages and DC offser adjusted per specification of service manual. Please review all images and descriptions prior to purchase.

Condition: Very Good

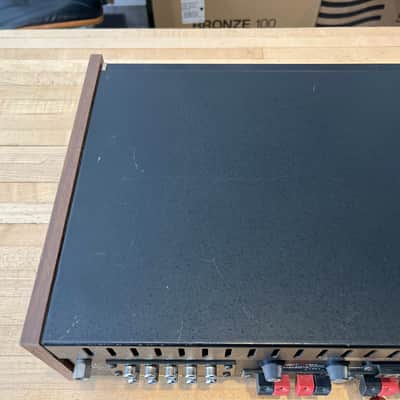

• Little noticeable cosmetic defects. Minor blemishing on case
• All functions working

Service:

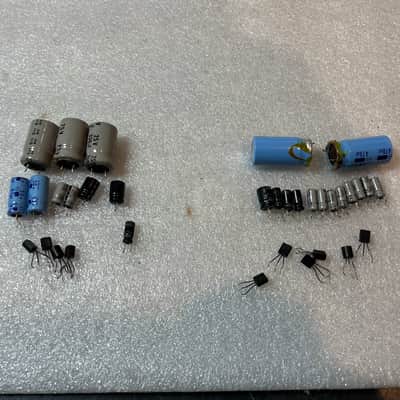

• Partial recap of power and tone board with Nichicon/Panasonic quality capacitors.
• Replaced capacitors with corrosive glue on board.
• Bias voltages and DC offset adjusted per specification of service manual.
• All controls and knobs cleaned with DeoxIT products.
• Unit was tested in complete system for 6+ hours.

All original hardware and features have been inspected, tested, and verified by HiFi Haus in Madison, WI as described.

Specifications:

• Power output: 12 watts per channel into 8Ω (stereo)
• Frequency response: 20Hz to 60kHz
• Total harmonic distortion: 0.5%
• Damping factor: 50
• Input sensitivity: 4mV (mic), 3mV (MM), 200mV (line)
• Signal to noise ratio: 70dB (mic), 70dB (MM), 75dB (line)
• Output: 200mV (line), 30mV (DIN)
• Speaker load impedance: 4Ω to 16Ω
• Semiconductors: 23 x transistors, 2 x diodes
• Dimensions: 407 x 115 x 278mm
• Weight: 8kg
• Year: early 1970s
