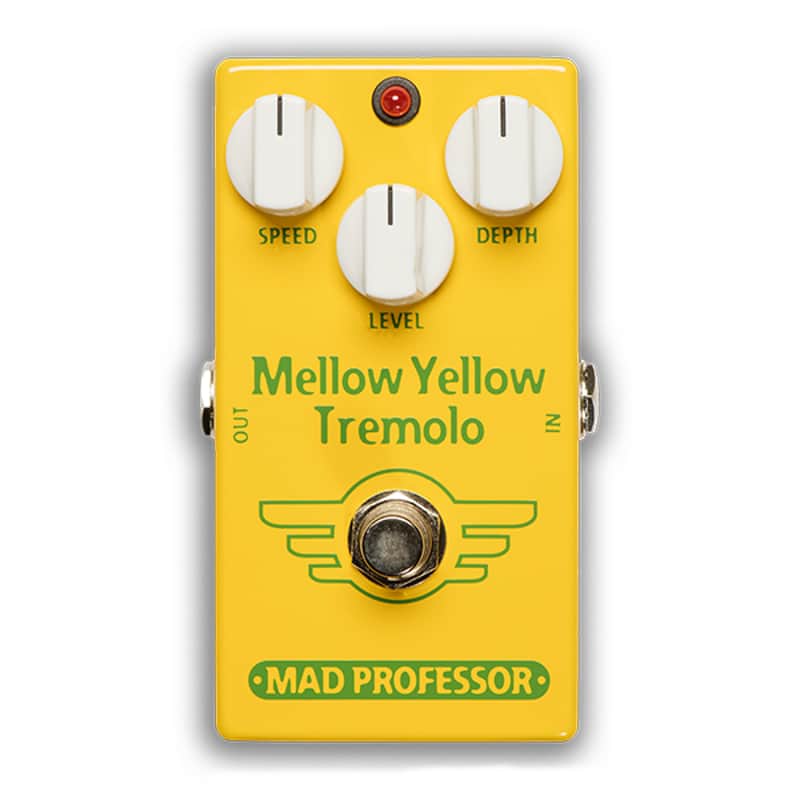

Mad Professor BJF Mellow Yellow Tremolo (pcb)

Bjorn Juhl (BJFe) design

brand new units from an authorized dealer
please visit our website for full line of Mad Professor products
PrimoFXLLC.com

Mad Professor Mellow Yellow Tremolo is a true sine wave tremolo effect designed for tremolo tones from the of 50′s type soft swing to deep modulation with great playability, regardless of tremolo depth or speed.

The strength of the incoming signal is modulated by a sinusoidal oscillator, just like in the early amps, and modulation bias is set to give symmetrical modulation. This gives a very musical tremolo effect that blend very well with both clean and distorted guitar tones.

SPEED: Controls the speed of modulation.

DEPTH: Controls the depth from barely noticeable to almost full on/off.

LEVEL: Is primarily meant to balance level effect on and off- sometimes you need to have a slight boost because the tremolo effect cuts density of sound through pulsating.

TECHNICAL SPECIFICATION:

Power requirements: 6F22 9V battery or DC eliminator 2.1 mm plug center negative and positive sleeve.

Current consumption: 5,5 mA at 9VDC

Supply voltage range: 7.5-15V

Input impedance: 340k Ohms

Output impedance: 1k Ohms

True Bypass
