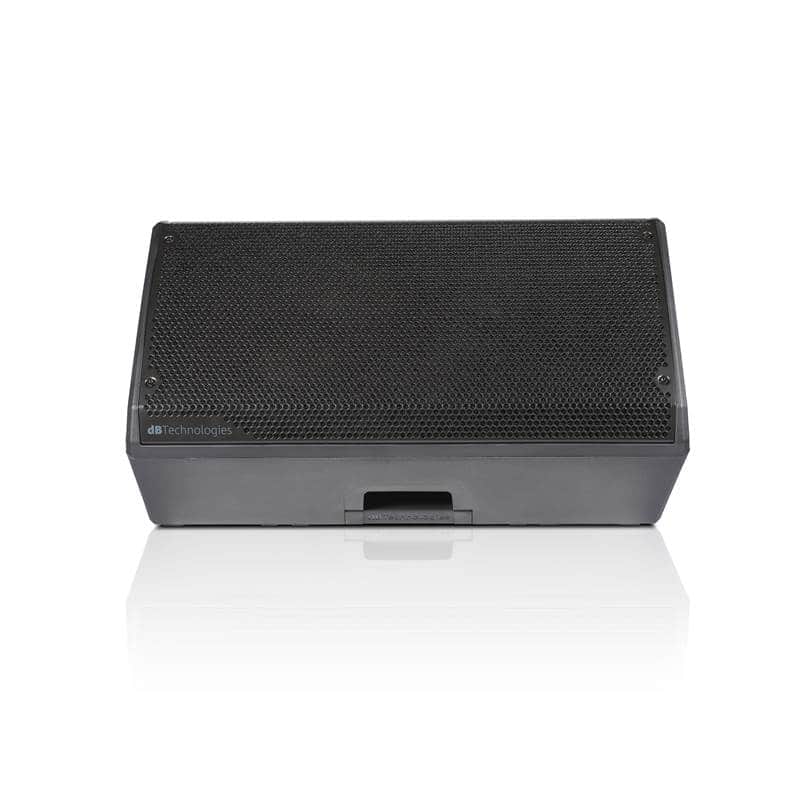

dB Technologies OPERA 12 12" 2-Way Active Speaker, 600W, DSP

With the OPERA series, dBTechnologies packs leading edge DSP processing, advanced design features and user friendliness in an unrivaled cabinet in its price range.

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.

Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.

The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Technical DataSpeaker Type2-Way Active SpeakerAcoustical dataFrequency Response [-10dB]52 - 20.000 HzFrequency Response [- 3dB]67 - 19.600 HzMax SPL129 dBHF1" Exit, 1.4 v.c.Type HFCompression driverHorizontal Directivity100° (85° up/120° down)Vertical Directivity85° (+ 25°/-60°)HornAsymmetrical HornLF12", 2" v.c.AmplifierAmp TechnologyAmp SMPS Power supply dual rangeAmp ClassClass DRMS Power600 WPeak Power1200 WProcessorControllerDSP 56 bitAD/DA Converter24 bit/48 KHzSystem PresetsRotary Encoder (8 Presets)CrossOver Frequency2000 HzLimiterPeak, RMS, ThermalAdvanced DSP FunctionsLinear Phase FIR FiltersInputSignal Input1xCombo (XLR/Jack 6.3 mm) MIC/Line1xCombo (XLR/Jack 6.3 mm) MIC/InstSignal Output1x XLR Male (CH1 Link/Mix OUT)SelectableMechanicsHousingPolyporpylene PPGrilleFull grilleHandles1 on left Side, 1 on TopRigging Points2XM10 on Top + 1x M10 on BackPole MountD36 mmAngles upMonitor use 45°Width350 mm (13.78 in)Height642 mm (25.28 in)Depth349 mm (13.74 in)Weight14.3 kg (31.53 lbs)
