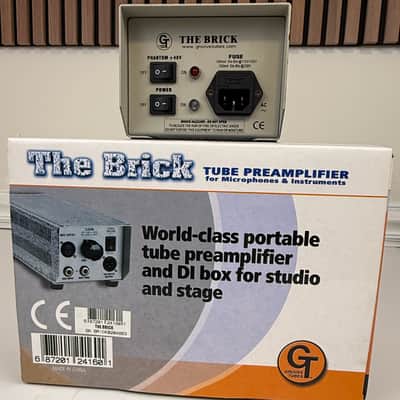

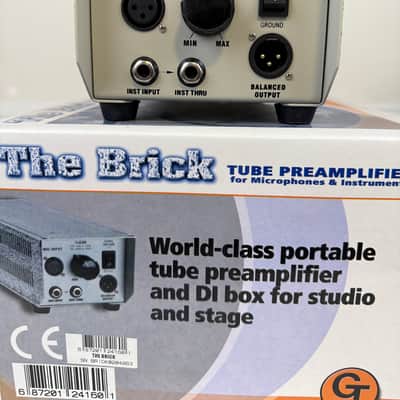

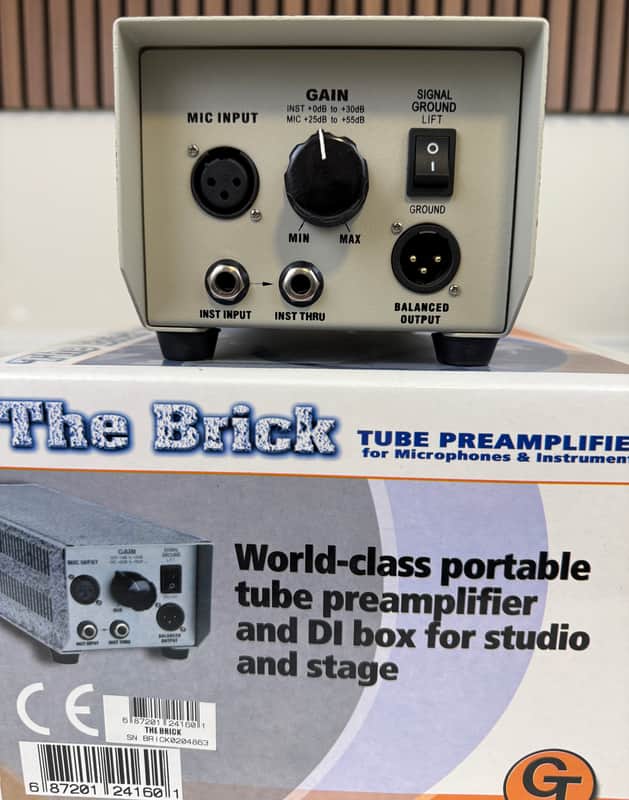

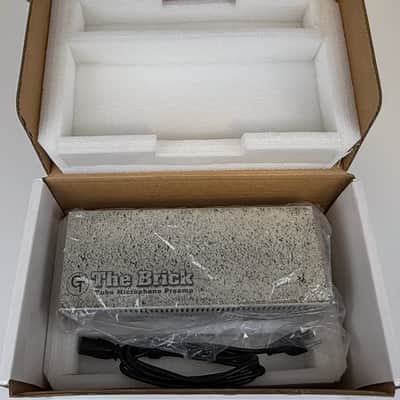

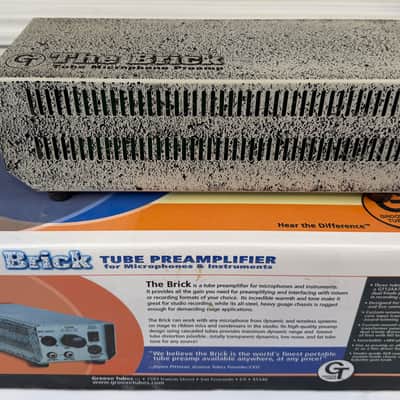

Up for sale is a new and unused Groove Tubes “The Brick” tube microphone preamp and tube DI. Two of these were purchased for a studio install that was not completed. This is the second of the two new units that I have for sell. These units have the two original tubes and there are no hours or use on this unit and these original tubes. This listing is for one of the two units that I have for sale.

Arguably one of the most fully featured tube mic preamps with tube DI, Groove Tubes' The Brick does a whole lot in a single, super-rugged package. Not only is The Brick the ultimate DI box and instrument preamp for injecting a smooth, clear and warm tube tone into your signal in the studio or stage, it's a fantastic mic pre. Plug in your favorite mic - condenser, dynamic, or ribbon - and enjoy the unmistakable fatness and warmth that can only mean tubes and transformers!

The isolated balanced low impedance output lets you run any instrument or mic signal over very long cable runs with no signal degradation. The Brick also provides either unity gain or variable output level control for up to 55dB of all-tube gain! The Brick offers perfect tube tone and isolation for vintage keyboards, electric bass and acoustic/electric guitars with internal transducer type pickups. Plus, onboard phantom power allows the use of high quality condenser mics on stage. Best of all, The Brick is very aptly named, giving you a solid performer that's right at home in the studio, but is so rugged that even the most demanding tours won't phase it!

Groove Tubes The Brick at a Glance:

• A tube mic/instrument pre for the studio.
• A tube mic/instrument pre for the stage.
• A tube line driver.
• Phantom power, true transformer output, plus an available gain of +55db.
• The Brick will handle dynamic mics, condenser mics, and ribbon mics.
• The Brick can run 1000 feet and more without the losses of simple direct boxes.

Some other uses for The Brick:

• 1.  Direct to console - Use acoustic/electrified guitar - input directly to a recording console for warmth and proper impedance matching.
• 2. Live to sound reinforcement console - In a live performance, long unbalanced cable runs can compromise your tone.  Use the Brick with keyboards or rack systems to set your equipment levels to the best signal-to-noise ratio. The result is improved sound quality over long cable runs.
• 3. A must for guitar players with pedal boards - You have a large investment in a pedal board. Unfortunately, long cable runs (over 25' in many cases) from the pedal board to your amp does little for sound quality.  Let "The Brick" handle the task of proper signal balance and drive; set the effects level for the best sound and let The Brick handle the rest.
• 4. POD 2.0 and PODxt users - whether recording direct or in live performance, placing The Brick between the POD and amp, recorder, console, or house system will add tube feel and warmth.  Proper output level can now be set on the POD so that the signal to noise ratio is optimized, rather than trying to have the POD generate the desired gain. In the high gain POD models, this can reduce noise to the amp, console, or recorder for a cleaner and quieter signal.
• 5. Make your guitar, bass, keyboard, or less expensive dynamic microphone sound better - the transformer balanced tube circuitry are the keys for proper matching to your instrument.

The Brick makes a great preamp for amps with effects loops. Amps such as Marshall or Mesa Boogie have a signature tone based on their preamp design. If you'd like to get a very clean sound for acoustic/electric guitar, you can bypass the amplifier's preamp using The Brick. First, plug your guitar into The Brick. Using an XLR to 1/4" cable, go XLR out from The Brick and then plug the 1/4" end of the cable to the amps effects return, thus bypassing the amplifier's preamp section providing the clean sound that acoustic guitarists have come to love. Using The Brick in this fashion effectively doubles the use of your amp.  The latest Fender Pro Tube series amps (Pro Twin, Pro Concert, and Pro Reverb) have a pre out / main in set of jacks.  Use the main in, as it is specifically designed for this sort of use.

Use The Brick in live applications with the guitar plugged into the Brick's 1/4" input, and then run a cable from the second 1/4" input to your amp.  There will be no processing on your signal to the amp.  Then take the XLR output to the house system.  This allows a mix of your amps output and also allows you to control what level goes to the house system from the stage.

Groove Tubes The Brick Features:

• +55dB of tube mic pre gain to any studio mic.

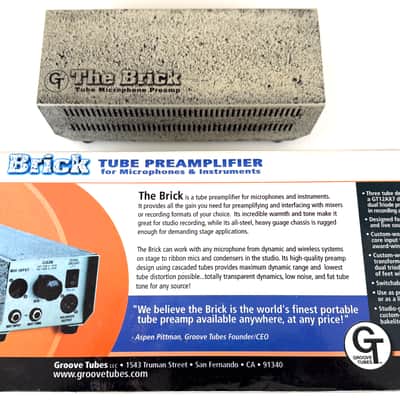

• Unique rugged steel package and special internal construction.

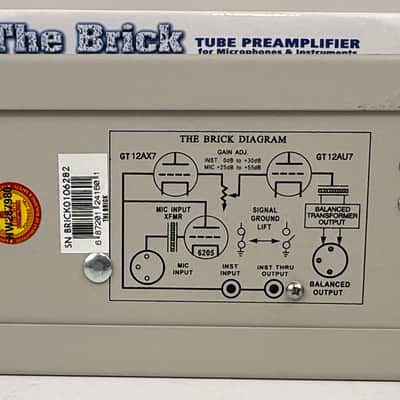

• 3 internal tubes and massive custom output transformer can drive a signal 100's of feet with no loss.
• Accepts unbalanced line or instrument level signal and output a balanced signal. Capable of amplifying up to +30dB.
• Utilise the Brick as a neutral D.I. or as a preamplifier.
• Gain up to +30dB.
• The Brick will pre-amplify any line or instrument signals directly into a +4 or -10 Line input stage of your mixer or recorder.
• High Impedance for use with Electric Guitar Electro-Acoustic Guitar Piezo-electric Pickups Electric Bass Electronic Keyboard Electronic Synthesizer.
• LIne Level Signals Output Level Nominal +4 dBm Maximum +16 dBm terminated at 600 Ohms.
• Signal Ground Lift.
• Gain Control.
• On/Off switch External fuse holder.
• Dynamic Range 118 dB.
• Phantom Power +48 volts.
• Primary input voltage is Internally selectable between 120v and 240v 50-60 Hertz.
• Fuse: Amp @ 120 volts 1/2 Amp @ 240 volts.
