Rat King Modular - Eurorack Slope Generator

VCO, envelope, slew limiter (portamento), waveshaper, LFO, envelope follower… The EVENT does it all, making it one of the most versatile analog modules available.

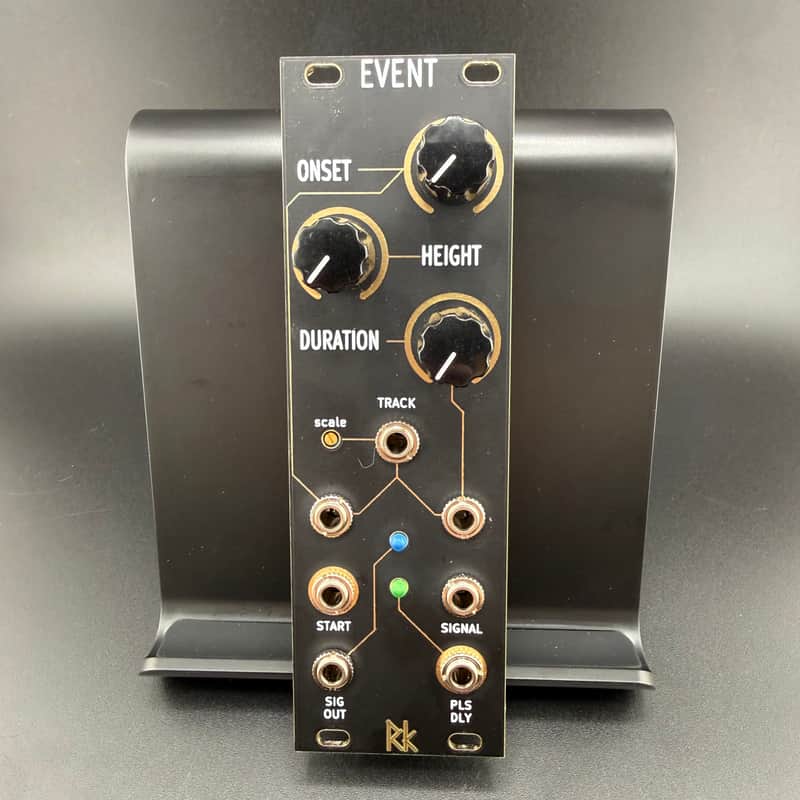

Controls:

• ONSET: Controls the positive rate (time) of change in voltage. It has a bipolar CV input jack.
• DURATION: Controls the negative rate (time) of change in voltage. It has a bipolar CV input jack.
• HEIGHT: Controls the held voltage level when a continuous gate is applied.
• TRACK: 1v/oct input. It is particularly useful when patching the EVENT as a VCO.
• START: A simple gate/trigger/pulse input that initiates a cycle when the EVENT is patched as a voltage controlled envelope.
• SIGNAL input: Can be a constant or fluctuating voltage. This input is particularly useful for mangling CVs.
• SIG OUT: The main output, the result of the gate/trigger/pulse input or SIGNAL input.
• PLS DLY: A short pulse used for triggering other events as pulse delay (or as self trigger when patching the EVENT back into itself).

Specifications:

• Module width: 8HP
• Module depth: 22mm
• Current draw:
• • +12V: 50mA
  • -12V: 43mA
