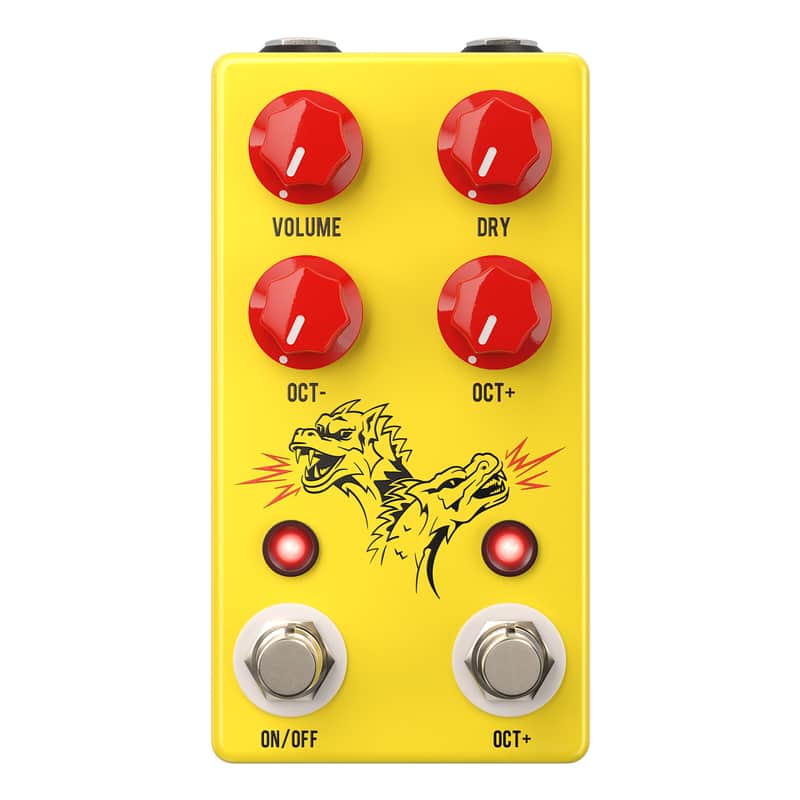

JHS Double Dragon Lo-Fi Octave Device

The JHS Double Dragon is an all-analog lo-fi octave device built around classic vintage octave-divider technology, delivering the unpredictable, gritty character that made early octave circuits so inspiring. This is a monophonic octave effect that thrives on imperfection—single-note riffs track with thick, synthy weight, while chords can sputter, glitch, and fight back in the best way possible.

The Double Dragon combines a powerful octave-down foundation with an aggressive octave-up distortion circuit that sits somewhere between an Octavia-style bite and Superfuzz-style grind. With independent controls for dry blend, octave-down, and octave-up, it can function as anything from a riff machine to a chaotic lo-fi synth texture generator, and even works as a boost/preamp when the octave signals are turned down.

Highlights

• All-analog octave-down and octave-up effect with vintage divider character
• Thick, monophonic octave-down foundation for riff-heavy tones
• Octave-up distortion circuit for gritty, cutting lead textures
• Dry blend control for anything from subtle support to full wet glitch tones
• Dual footswitch layout: main effect plus independent OCT+ activation

Specifications

Body

• Enclosure Size: 2.6” x 4.8” x 1.6”
• Jacks: Top-mounted

Hardware

• Switching: Silent Buffered Bypass Switching
• Footswitches:
  • Left: Main ON/OFF
  • Right: OCT+ circuit engage (requires main effect ON)

Electronics

• Effect Type: Analog Octave Down / Octave Up with distortion
• Controls:
  • Volume (master output with extra boost available)
  • Dry (clean blend)
  • OCT− (sub octave mix)
  • OCT+ (octave-up + distortion level)
• Power: 9VDC Center Negative
• Current Draw: 75mA
• Bypass: Buffered

Miscellaneous

• Notes: Do not use more than 9VDC (damage may occur and warranty may be voided)
• Recommended Use: Works well with overdrive, fuzz, vibrato, and modulation placed after the pedal
