Chrome Plated Brass Fender Jazzmaster / Jaguar Offset Bridge

The Overpass “Classic” by Aumsen - High Mass Solid Brass Block and Compensated Brass Saddle Bridge: USA Seller & Quality Inspected. If requested, I will set the radius on the saddle adjustment grubs to your specifications.

This is a premium, precision milled drop-in replacement bridge for offset guitars designed to permanently eliminate common rattle, buzzing, and tuning instability issues.

Key Features

• Saddle Material: CNC-machined Solid Brass. Provides maximum sustain and warmth over standard bridges.
• Saddle Profile: Compensated string grooves for improved intonation across the fretboard.
• Adjustment Access: Phillips head intonation screws are easily accessible in between the strings for quick adjustments.
• Stability System: Includes two fixed Nylon Rock-Stop Sleeves. Eliminates side-to-side bridge movement and rattle.
• Quality Control: Every unit is inspected in the USA for thread integrity and finish quality.


Technical Measurements

• String Spacing: 52.5mm. Standard modern spacing.
• Post Spacing: 73mm. Standard offset guitar thimble spacing.
• Post Diameter: 9mm. Fits most modern Fender and Squier thimbles.
  Material: Plated Brass Body, Steel Posts. Chrome finish.
• Compatibility: Direct fit for most Fender/Squier Jazzmaster, Jaguar, and Mustang models.


NOTE: This bridge has been tested and confirmed as a “drop in fit” for Squier Classic Vibe Series Jazzmaster, Squier Classic Vibe Jaguar, Fender Vintera II Jazzmaster, MIJ mid/late 90’s JM66 Jazzmaster, Fender American Professional II Jazzmaster. I cannot guarantee fitment to any other model at this time. As I get sales, I will update from customer reports. I suspect it will drop it to most/all with the exception of offsets that use tune-o-matic /adjustomatic bridges. The legs can be removed with included hex wrench, and might actually work in those situations but have not been tested. See last image.

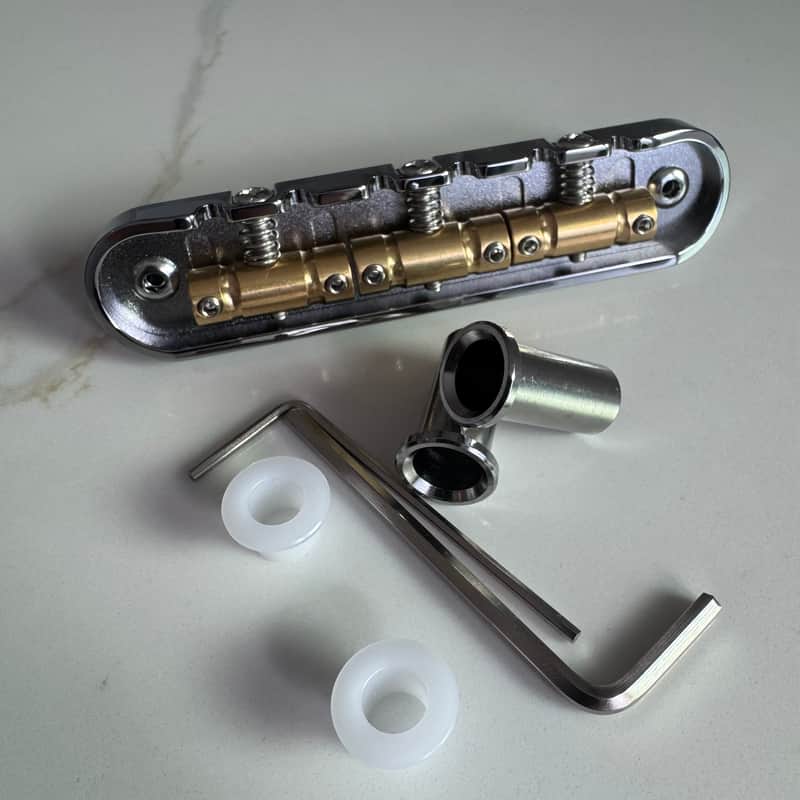

What’s Included

• 1x High Mass Solid Brass Bridge
• 2x Fixed Post Sleeves
• 2x 9mm Thimbles
• 1x Hex Key for Saddle Height Adjustment
• 1x Hex Key for Post Attachments
