(2) JBL AWC129 12" 200w Indoor/Outdoor 70V Surface Mount Commercial Speakers+Amp

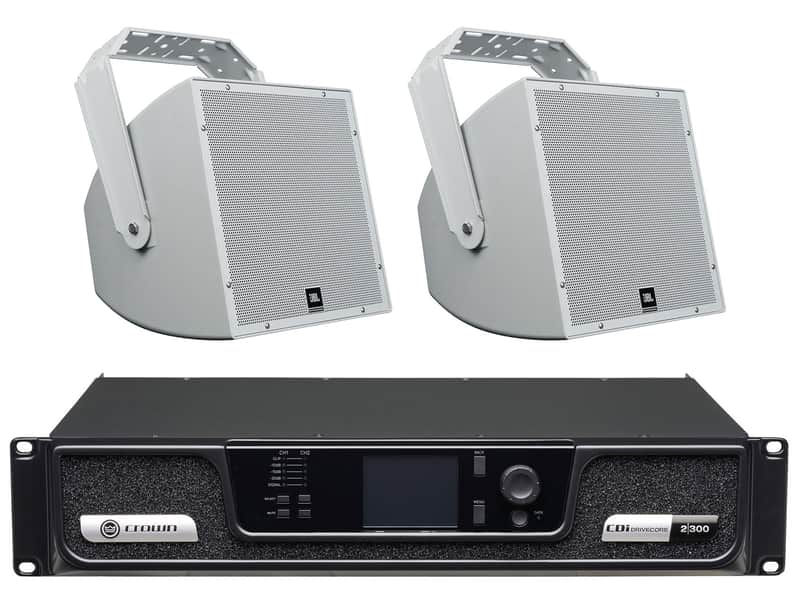

Package Includes:

• (1) Crown CDI 2 x 300 Watt 70V Commercial/Restaurant Power Amplifier Amp CDI2300
• (2) JBL AWC129 12" 200w 2-Way Indoor/Outdoor 70V Surface Mount Commercial Speaker

Description:

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|300 offers streamlined functionality to work in almost any small/medium sized installation such as restaurants, retail stores, and more.

Designed for ease-of-use in a variety of applications, the 2|300 is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tuning to help make installations quicker and easier.

Features:

• DriveCore Technology: Crown’s proprietary DriveCore technology eliminates hundreds of components within each amplifier, reducing the variability of component values, increasing reliability, resulting in incredible audio fidelity from an efficient design.

• Network Control and Monitoring: Through Harman’s HiQnet Audio Architect software, the CDi DriveCore can be controlled, configured, and monitored through standard TCP/IQ network.

• DSP: On-board Digital Signal Processor in each amplifier allows for custom configuration

1. Input Router
2. Input Delay: Up to 1000ms
3. Input Parametric EQ: 8 band
4. Crossover
5. Output Parametric EQ: 8 band
6. Output Delay: Up to 100ms
7. LevelMAX™ Limiter

• Direct Drive 70/100Vrms Output: Each output channel is capable of provide either 70V or 100V for high impedance applications.

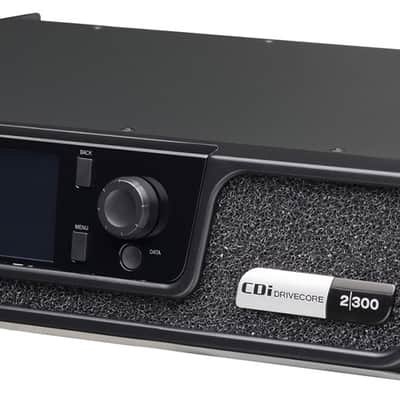

• Front-Panel Interface: Completely configure the amplifier using an intuitive front-panel interface.

• GPIO/AUX Port Recall presets, mute channels, monitor faults, power on/off the amplifier, and more through a combined GPIO/AUX Port.

Specifications:

• Channels: 2
• Sensitivity (for full rated power at 8 ohms): 0.7V RMS
• Rated Power Output (per channel @ 4 ohms): 300W
• Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms): > 104dB
• THD (full rated power, 20 Hz - 20 kHz): 0.0035
• Damping Factor (20 Hz to 100 Hz): > 1000
• Frequency Response (8O, 20 Hz - 20 kHz): +/-0.5dB
• Crosstalk (below rated power) 20 Hz to 1 kHz: > 80dB
• Input Impedance (nominally balanced, nominally unbalanced): 20 kO balanced, 10 kO unbalanced
• Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion): 19 x 3.5 x 12.25
• Weight: 14.56 lbs (6.6 kg)
• Power Supply Connector: Standard IEC type 320 inlet for detachable connector 100 – 240V~

All About Your 70 Volt:

Description:

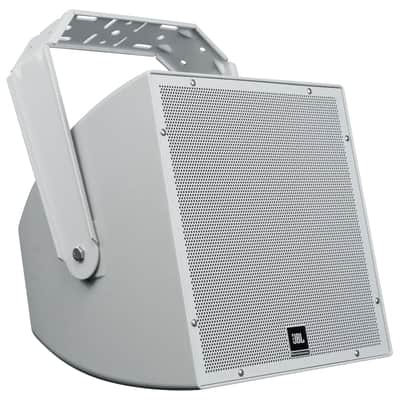

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF.

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

Features:

• Highly weather-resistant IP56 rating
• Consistent 90° x 90° broadband pattern control
• Components:
• 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
• Extraordinary clarity for speech, with extended frequency response for music.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
• High-power passive crossover network.
• Overload protection
• 55 Hz – 20 kHz frequency response.
• 200 Watt 70V/100V multi-tap (built-in transformer) direct 8O low-impedance.

Specifications:

• Frequency Range (-10dB): 55 Hz – 20 kHz
• Frequency Response (±3 dB): 80 Hz – 20 kHz
• Coverage Pattern: 90° x 90°
• Directivity Factor (Q): 10.1 (1 k – 16 kHz)
• Directivity Index (DI): 9.5 dB (1k – 16 kHz)
• System Power Rating: 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
• Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz – 20 kHz)
• Maximum SPL (1m): Direct 8O: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
• Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
• Nominal Impedance: 8 ohms
• Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
• LF Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
• HF Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
• HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection
• Enclosure: ABS with Glass enclosure, heavily braced
• Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

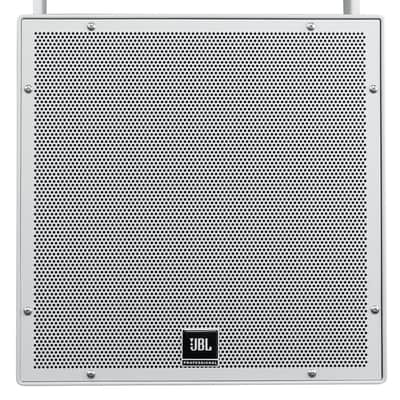

• Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
• Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
• Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
• Dimensions: 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
• Colors: Available in gray (similar to Pantone 420C) and black (-BK)
• Net Weight (each): 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
• Shipping Weight: 23.4 kg (51.5 lbs)
• Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
• Crossover Modes: Passive
• Nominal LF Driver Impedance: 8 ohms
• Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
