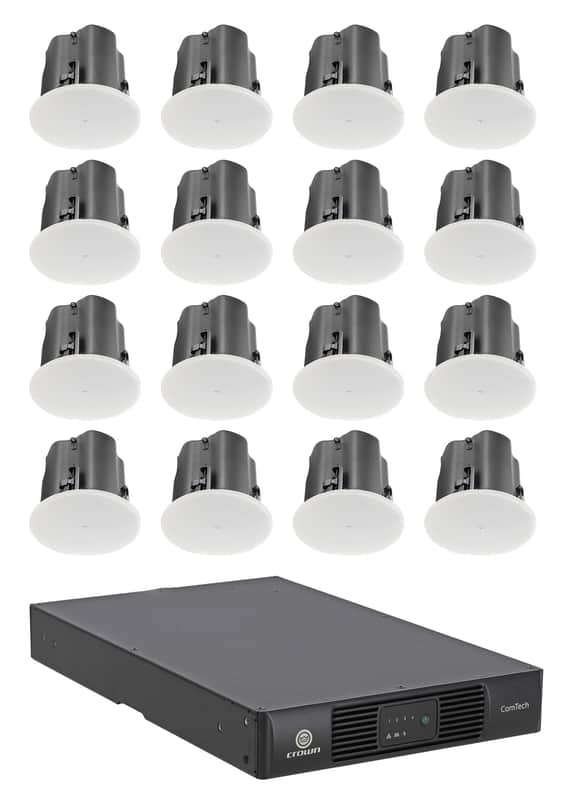

(16) JBL Control 416C/T 6.5" Commercial 70v Ceiling Speakers+Crown Amplifier

Package Includes:

• (8) Pair JBL Control 416C/T 6.5" Commercial 70v/8-ohm Ceiling Speakers 4 Restaurant/Bar
• (1) Crown CTD-4125 4 x 125w 4-Channel Amplifier Power Sharing Amp w/DSP/Dante

Description:

The JBL Control 416C/T, part of the Control 400 Standard Coverage Series, is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and an integrated enclosure that is ideal for installation in most ceiling plenum spaces.

All Control 400 Series models are designed to blend seamlessly into modern interiors. The included full-face magnetic grille is paintable for integration into any decor, while available black round and white square grilles provide added customization.

The Control 416C/T includes thoughtfully engineered installation features to enhance safety, efficiency, and repeatability. The terminal cover allows for convenient top or side cable entry and the reliable captive dogear design accommodates a variety of ceiling thicknesses, ensuring versatility for any environment. Additionally, the Control 416C/T supports both 70V/100V and low impedance applications.

EFFICIENT, FLEXIBLE INSTALLATION
Control 400 Series ceiling speakers are engineered to improve installation repeatability and safety while reducing installation time. Terminal covers provide both top and side cable entry ports, allowing installers to choose the best option for each application. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

REFINED, MODERN AESTHETICS
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features:

• 165 mm (6.5 in) woofer and 20mm (0.75 in) soft-dome tweeter
• Integrated enclosure that is ideal for installation in most ceiling plenum spaces

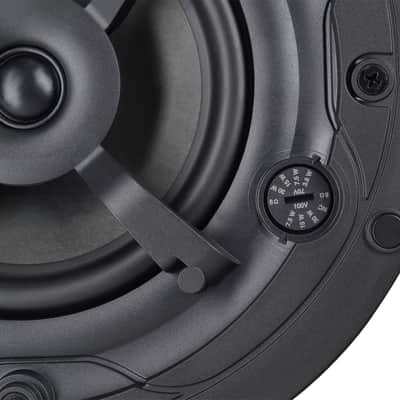

• Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles
• Top and side cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Specifications:

• Frequency Range (-10 dB): 61Hz - 20kHz
• Power Capacity:

  • 75W (300W Peak) Cont. Pink Noise (2 hrs)
  • 50W (200W Peak) Cont. Pink Noise (100 hrs)
• Sensitivity (1m/1W): 89dB
• Coverage Angle: 120° conical
• Maximum SPL (1m): 108 dB continuous pink noise (114 dB peak)
• Nominal Impedance: 8O
• Transformer Taps:

  • 70 V: 30 W, 15 W, 7.5 W & 3.8 W
  • 100 V: 30 W, 15 W, 7.5 W
• Drivers:

  • LF: 165 mm (6.5 in) with paper cone, SBR surround.
  • HF: 20 mm (0.75 in) soft dome
  • Ceiling Cutout Size: 223 mm (8.8 in)
• Dimensions:

  • 233 mm (9.3 in) H x 261 mm (10.4 in) dia.
  • 222 mm (8.9 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating: Suitable for use in air handling spaces per UL 2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 listed. Listing per UL 1480A Speakers for Commercial and Professional Use. UL registered Transformer.
• Environmental:

  • IP rating: IP33 per EN/IEC 60529.
  • Operating temperature: 0° C to 45 °C.
• Optional Accessories:

  • JBL-MTC-416BG black (RAL9004) round grille
  • JBL-MTC-416SG white (RAL9003) square grille
  • JBL-MTC-416WG weather grille
  • JBL-MTC-426NC new construction bracket
  • JBL-MTC-426MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color: Stock grille is White (RAL9003), paintable
• Net Weight (ea): 3.75 kg (8.27 lbs)

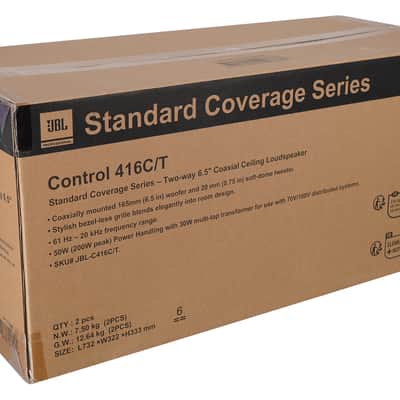

• Shipping Weight (pair): 12.64 kg (27.87 lbs)

Description:

Crown ComTech D Series amplifiers are designed for versatility, flexibility, and ease of installation. With both Dante inputs and outputs, built-in DSP, power sharing, Lo-Z/Hi-Z switching, and a simple to use web configuration interface, ComTech D amplifiers are ideal for meeting the changing demands of diverse installed audio applications.

The CTD-4125 delivers 125 watts per channel of legendary Crown amplification when all channels are driven equally. Asymmetrical power sharing enables the four channels to share the full 500W in any ratio, offering unparalleled flexibility.

Built-in DSP allows outputs to be tuned specifically for every application and provides the ability to create custom speaker tunings. Factory JBL SpeakerTunings for select JBL models, including Control 400 Series ceiling speakers, are included to simplify the optimization of an all-HARMAN solution.

The amplifier can be configured through the intuitive web interface with any computer or tablet and without the need to install proprietary software. It uses HARMAN's HControl protocol to communicate natively with BSS OMNI Processors or AMX MUSE Automation Controllers and includes an easy-to-use API for integration with 3rd-party control systems.

This compact 1RU, ½ rack width device can be installed in a rack, under a table, or on a wall using the included mounting hardware.

Output Power All Channels Driven

• Channels: 4
• Low-Z: 125W
• Hi-Z: 125W

Output Power Single Channel Driven - Power Sharing

• Low-Z: 500W
• Hi-Z: 500W

Features:

• Dante Inputs and Outputs
• 500W between Ch 1-4 and 500W between Ch 5-8
• Max available output per channel
• DSP for Room Tuning and Speaker Tuning
• Power Sharing
• WebUI Configuration

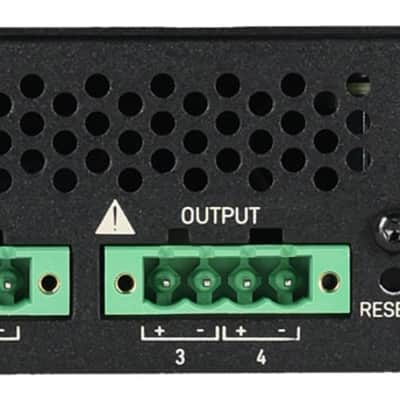

• Lo-Z/Hi-Z switchable outputs
• Compact Design
• Factory JBL SpeakerTunings
• Pilot Tone & Load Monitoring
• Source Priority Switching
• GPIO Interface
• HControl
