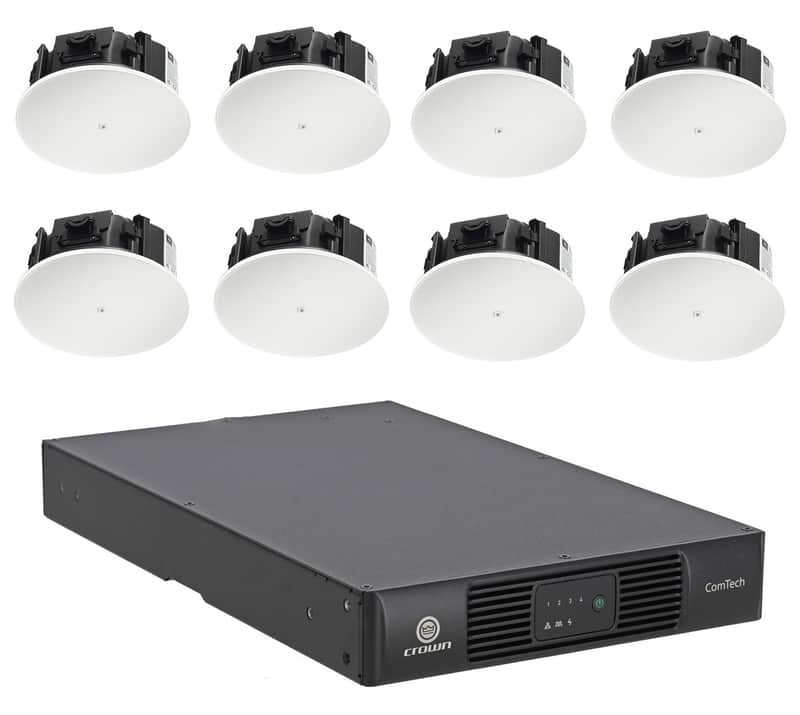

(8) JBL Control 426LP 6.5" Low Profile 70v Commercial Ceiling Speakers+Crown Amp

Package Includes:

• (4) Pair JBL Control 426LP 6.5" Low Profile 70v/12-ohm Commercial In-Ceiling Speakers
• (1) Crown CTD-4125 4 x 125w 4-Channel Amplifier Power Sharing Amp w/DSP/Dante

Description:

The JBL Control 426LP is a two-way coaxial ceiling loudspeaker, featuring a 6.5” woofer and a low-profile enclosure that is ideal for applications where ceiling plenum space is restricted. Integrated CRBI™ technology provides 110° of consistent, full, rich sound character that closely matches that of the Control 426C/T. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. Like all Control 400 Enhanced Coverage models, the Control 426LP includes a transformer to support both 70V/100V and low impedance applications.

Superior Sonic Performance
The Coplanar RBI™, or CRBI™ delivers an especially smooth sound character that remains consistent, clear, and pleasant across a wide coverage area. It reduces on-axis hot spots and off-axis cold spots and improves the listening experience for users as they move throughout a space. This enhanced coverage results in fewer speakers, amplifier channels, and project costs, required to cover a space.

Efficient, Flexible Installation
Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

Refined, Modern Aesthetics
Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Features:

• Coaxially mounted 165 mm (6.5 in) woofer and 25 mm (1.0 in) soft-dome tweeter
• Low-profile enclosure (<100mm deep) for installing where ceiling plenum space is restricted
• CRBI™ technology for consistent sound coverage
• Built-in 70V/100V multi-tap transformer, plus 12-ohm direct input
• Full-face, easily-paintable magnetic grilles
• Black and square magnetic accessory grilles available
• Top and side exit cable entry options
• Robust and adaptable dogears for wide range of ceiling thicknesses
• IP33 rated

Specifications:

• Frequency Range (-10 dB): 95 Hz – 19 kHz
• Power Capacity:

  • 110 W (440 W Peak), Continuous Pink Noise (2 hrs)
  • 75 W (300 W Peak) Continuous Pink Noise Power (100 hrs)
• Sensitivity (1m/1W): 89dB
• Coverage Angle: 110° conical
• Maximum SPL (1m): 109 dB continuous pink noise (115 dB peak)
• Nominal Impedance: 12O
• Transformer Taps:

  • 70 V: 60 W, 30 W, 15 W & 7.5 W
  • 100 V: 60 W, 30 W, 15 W
• Drivers:

  • LF: 165 mm (6.5 in) with treated paper cone and high-performance magnet
  • HF: 25 mm (1.0 in) textile soft-dome with Neodymium magnet assembly
• Ceiling Cutout Size: 223 mm (8.8 in)
• Dimensions:

  • 107 mm (4.2 in) H x 253 mm (9.9 in) dia.
  • 98 mm (3.9 in) from bottom of ceiling tile to top of backcan
• Safety Agency Rating: Suitable for use in air handling spaces per UL2043, NFPA 90A & NFPA 70, CSA C22.2 no. 205 and S7232/UL1480A Listed.
• Environmental:

  • IP33 rating per EN/IEC 60529.
  • Operating Temperature 0°C to 45°C
• Optional Accessories:

  • JBL-MTC-426BG black (RAL9004) round grille
  • JBL-MTC-426SG white (RAL9003) square grille
  • JBL-MTC-426NC new construction bracket
  • JBL-MTC-426MR mud-ring construction bracket
  • JBL-MTC-48TRX4 tile rail for 4' x 4' ceiling tiles
• Color: Stock grille is White (RAL9003), paintable
• Net Weight (ea): 3.9 kg (8.6 lbs)
• Shipping Weight (pair): 12.58 kg (27.73 lbs)

Description:

Crown ComTech D Series amplifiers are designed for versatility, flexibility, and ease of installation. With both Dante inputs and outputs, built-in DSP, power sharing, Lo-Z/Hi-Z switching, and a simple to use web configuration interface, ComTech D amplifiers are ideal for meeting the changing demands of diverse installed audio applications.

The CTD-4125 delivers 125 watts per channel of legendary Crown amplification when all channels are driven equally. Asymmetrical power sharing enables the four channels to share the full 500W in any ratio, offering unparalleled flexibility.

Built-in DSP allows outputs to be tuned specifically for every application and provides the ability to create custom speaker tunings. Factory JBL SpeakerTunings for select JBL models, including Control 400 Series ceiling speakers, are included to simplify the optimization of an all-HARMAN solution.

The amplifier can be configured through the intuitive web interface with any computer or tablet and without the need to install proprietary software. It uses HARMAN's HControl protocol to communicate natively with BSS OMNI Processors or AMX MUSE Automation Controllers and includes an easy-to-use API for integration with 3rd-party control systems.

This compact 1RU, ½ rack width device can be installed in a rack, under a table, or on a wall using the included mounting hardware.

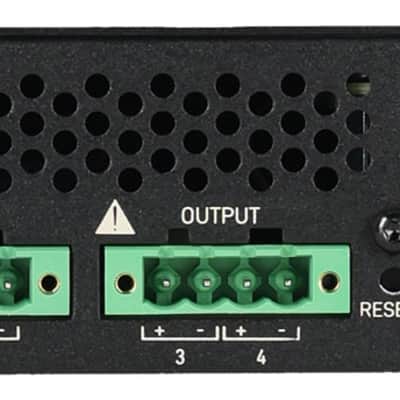

Output Power All Channels Driven

• Channels: 4
• Low-Z: 125W
• Hi-Z: 125W

Output Power Single Channel Driven - Power Sharing

• Low-Z: 500W
• Hi-Z: 500W

Features:

• Dante Inputs and Outputs
• 500W between Ch 1-4 and 500W between Ch 5-8
• Max available output per channel
• DSP for Room Tuning and Speaker Tuning
• Power Sharing
• WebUI Configuration
• Lo-Z/Hi-Z switchable outputs
• Compact Design
• Factory JBL SpeakerTunings
• Pilot Tone & Load Monitoring
• Source Priority Switching
• GPIO Interface
• HControl
