Shkrjn - Morphing Filter Bank - Rare Limited - Talking Filter Vowels Formants

Mint. Limited Run, Sold Out. Rare Sighting.

• 4× fixed-frequency resonant bandpass filters in a feedback loop; VOICE control morphs the loop gain so each bandpass peak splits into two + diverges across the spectrum (true formant “talking” motion).

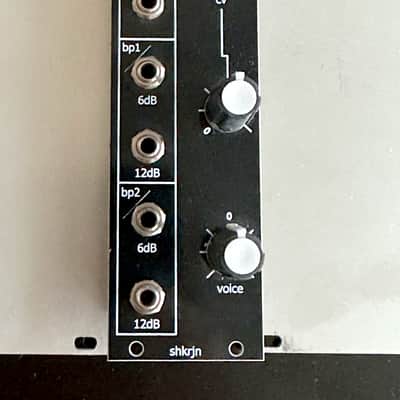

• 5 outputs / 5 timbres: 4× bandpass outs + variable notch out (flat at VOICE=0; deeper/wider notch adds phaser-like motion—killer on bass).
• 8HP, 2.375" deep, +12V 29mA max / -12V 23mA max (≈0.62W total in 8HP): absurd density—very little in Eurorack packs this much formant character per HP.
• Core topology: four resonant bandpass filters locked in a feedback loop; VOICE modulation changes loop gain so each band’s resonance splits → becomes two moving resonances.
• Five distinct outs: 4× vocal bandpasses + variable notch (phaser-ish animation as VOICE increases; especially effective for animated low-end).

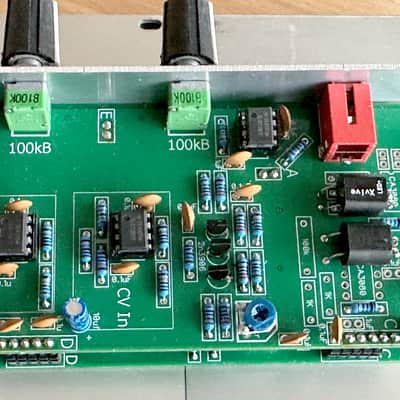

• Handbuilt, high-grade audio path: hand-matched film capacitors, limited handmade NYC run; Vactrol (cleaner, deeper modulation/self-osc potential via trimmer).

note: this is 2.375" deep

Shipping only $6.95, as I am splitting the actual cost of shipping with you.
