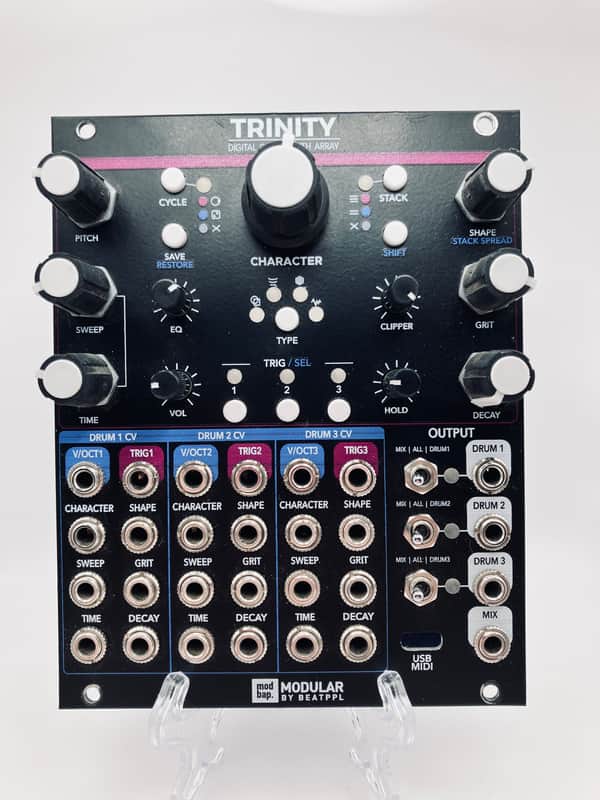

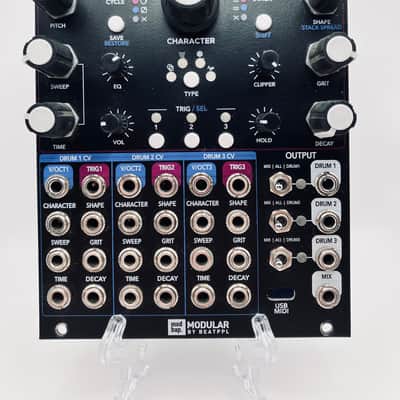

Modbap Modular Trinity OG

Unit is fully functional except for the usb port. The price reflects this.

This is essentially a compact, powerful digital drum synth array designed to deliver versatile, high-quality percussion voices in a small footprint.

20HP wide with three independent drum channels into one module, making it ideal for creating kicks, snares, hats, claps, toms, or experimental percussive textures without needing multiple separate drum modules.

Key Features (Original Trinity)

•  Three channels of digital drum synthesis, each with its own trigger input/button and extensive CV control.

•  Four synthesis algorithms (based on virtual analog, additive, FM, and noise types), allowing a wide range of sounds from classic analog-style drums to gritty, metallic, or noisy tones.

•  Controls — 11 knobs total (7 main + 4 mini-pots) per channel for parameters like Pitch, Sweep, Time, Shape, Grit, Decay, EQ, Clipper, Hold, Volume, and Character.

•  24 CV inputs for deep modulation.

•  Outputs — Individual per channel, plus a mix out; flexible 3-way switching.

•  MIDI over USB for external sequencing or finger-drumming.

•  Modes like Cycle (round-robin/random voice rotation) and Stack (layering 2–3 voices for thicker hits).

•  Power: Around 150–160mA on +12V.

It was praised for its intuitive layout, punchy and malleable sounds, and how it punches above its size for live performance or studio beatmaking in modular setups
