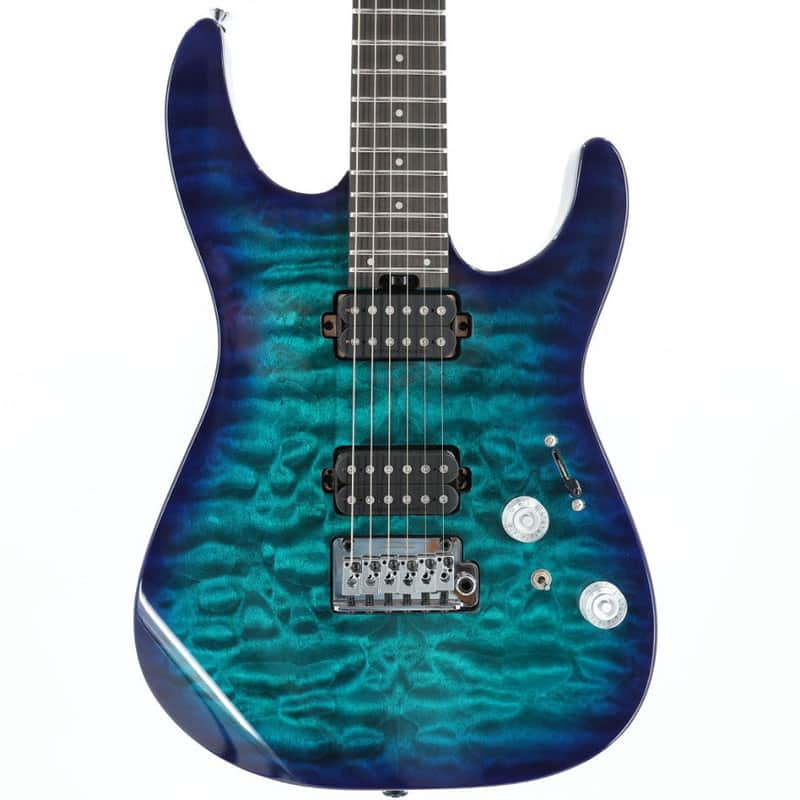

Loaded with premium features, this Pro-Mod Plus Dinky DK24 2PT model features a sleek Dinky body constructed from basswood with a quilt maple top, sculpted shredder's cut heel and scalloped lower back bout for seamless access to the upper registers. The bolt-on caramelized maple neck features graphite reinforcement for rock-solid stability, a satin natural finish on the back of the neck for sublime playability, and a conveniently located heel-mount truss rod adjustment wheel for neck relief tweaks on the fly. Designed for speed, the 12"-16" compound radius ebony fingerboard features comfortable rolled edges, 24 stainless steel jumbo frets and Luminlay side-dots for enhanced visibility in low-light conditions.

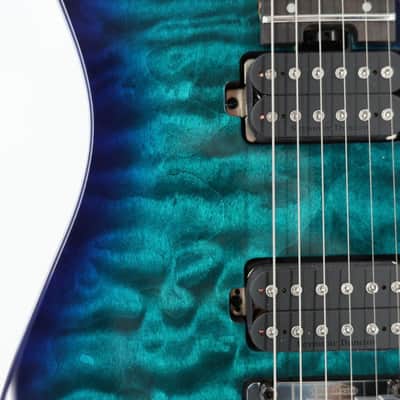

This axe features an HH pickup configuration consisting of a direct mount Seymour Duncan Full Shred TB-10 bridge pickup and direct mount Seymour Duncan Alnico Pro II APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

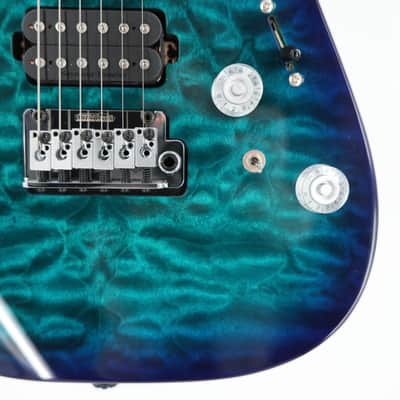

Other premium modern features include a five-way blade pickup switch, speed knobs for the volume and no-load tone controls, Wilkinson recessed tremolo bridge with locking saddles, Charvel-branded die-cast locking tuners and more.

Blending sophisticated style with assertive tone, the Pro-Mod Plus Dinky DK24 2PT HH E QM delivers premium performance and modern features.

Features:

General

• Series: Pro-Mod Plus
• Orientation: Right-Hand
• Color: Chlorine Burst
• Model #: 2972811521
• Case/Gig Bag: Included Charvel Deluxe Gig Bag (P/N 7729019000)

Neck

• Headstock: Licensed Fender Stratocaster
• Neck Material: Caramelized Maple
• Neck Finish: Natural Satin
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Construction: Bolt-On with Graphite Reinforcement
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material: Ebony
• Position Inlays: 4mm Pearloid Dot
• Side Dots: Luminlay
• Number of Frets: 24
• Truss Rod: Dual-Action with Wheel
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Nut: Graph Tech TUSQ XL
• Nut Width: 1.6875" (42.86 mm)
• Nut Material: Graph Tech TUSQ XL
• Fret Size: Jumbo Stainless Steel
• Scale Length: 25.5" (648 mm)

Body

• Body: Basswood
• Body Finish: Gloss
• Body Shape: Dinky
• Body Top: Quilt Maple
• Body Style: Solid Body
• Body Material: Basswood

Hardware

• Bridge: Wilkinson WVS130-2P Tremolo
• Pickguard: None
• Pickup Covers: Flat Parchment
• Control Knobs: Speed Knob
• Switch Tip: Parchment
• Hardware Finish: Chrome
• Tuning Machines: Charvel-Branded Die-Cast Locking
• String Trees: Fender Standard String Guide
• Strings: Nickel Plated Steel (.009-.042 Gauges)
• Tremolo Arm: Wilkinson
• Neck Plate: None - 4-Bolt Sculpted Heel
• Strap Buttons: Standard

Electronics

• Bridge Pickup: Seymour Duncan Full Shred TB-10
• Neck Pickup: Seymour Duncan Alnico II Pro APH-1N
• Pickup Configuration: HH
• Controls: Volume (with 500K EVH Bourns Low Friction Potentiometer), No-Load Tone
• Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
• Auxiliary Switching: 2-Position Mini Toggle Down/All Series, Up/All Parallel
