TASCAM 58-OB, the formidable 1/2" 8-track recorder that defined countless project and commercial studios throughout the late analog era. This is a professional-format multitrack machine built around TASCAM’s rugged transport, F-V capstan system, and full 8-channel discrete architecture.

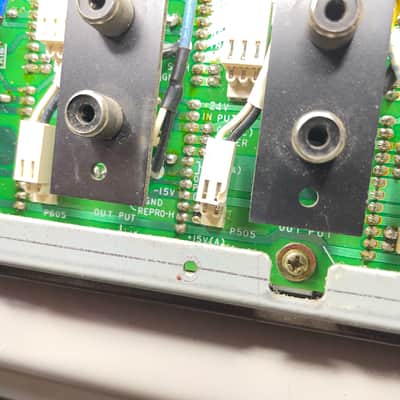

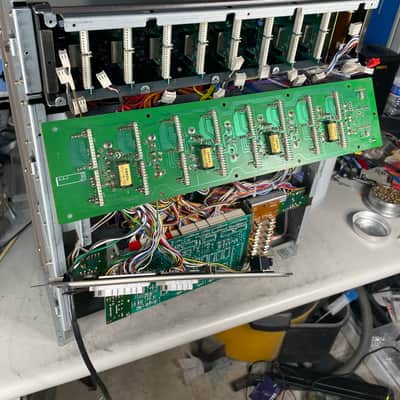

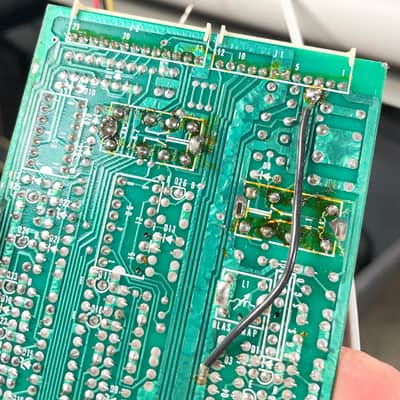

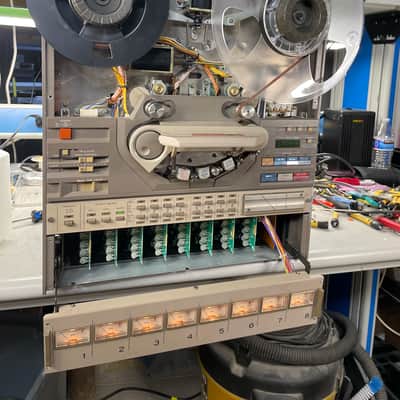

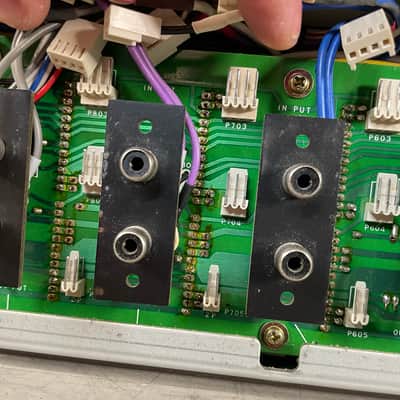

Unit has undergone a comprehensive restoration (work completed 14 June 2026) including a complete mechanical as well as electrical service. All solder joints on channel card motherboard had original solder removed and fresh SN60/40 solder used. Channel cards were also reflowed and all trimmers cleaned. Heads were gently recrowned and polished, have 85%+ life left and will tolerate at least 1 total relap. Tape path and reel tables re-aligned and all moving parts properly lubricated.

Unit received complete record/playback electrical and mechanical alignment per service manual. Record playback is flat (+/- 1.5dB) to 20kHz on all tracks. Unit is calibrated to the 320nW(+6) professional standard, higher than the consumer 250nW reference, reflecting the machine's intended high-headroom studio application. (Please see video link for demonstration). 0dB on VU corresponds to -10dBV(.3VAC) at output. it is calibrated for unity gain print which makes it ideal as a tracking print or bounce down machine in a recording studio environment. Biased for SM911 formula. Mechanically sound and quiet during operation and comprehensive service guarantees trouble free operation.

This machine is fully operational and ready for serious studio use.

Format & Operation

• 1/2” tape width
• 8-track discrete recording
• 15 IPS (inches per second)
• Rear-panel INT / EXT speed reference selector
• • INT = internal capstan reference (normal standalone operation)
  • EXT = external synchronizer control capability
• TASCAM F-V (frequency-voltage) capstan servo system
• Built for sync integration with TASCAM synchronizers

This is a dedicated 15 IPS machine as designed by TASCAM. Switchable -10 dBV and +4 dBu operation allows proper gain staging in both semi-pro and professional studio environments.

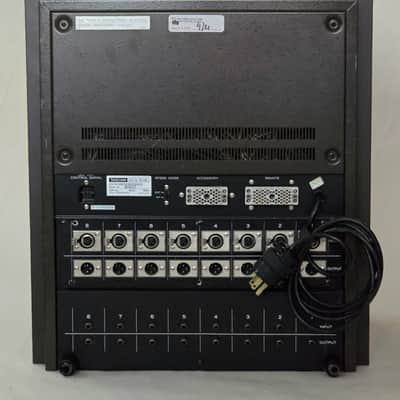

Connectivity

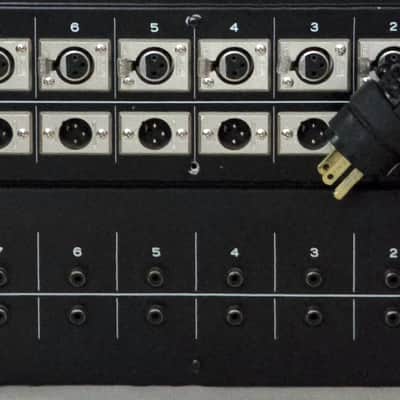

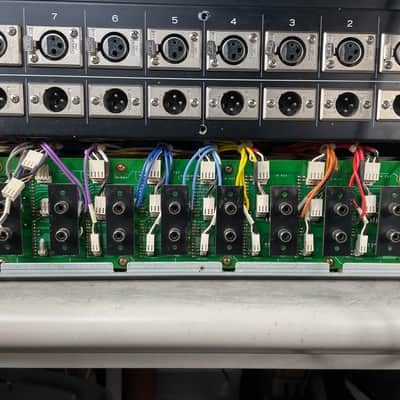

• Balanced XLR inputs and outputs for all 8 channels
• Accessory multipin connector
• Remote multipin connector
• Heavy-duty power cable with robust plug
• Switchable internal/external speed reference
• Full rear-panel I/O clearly labeled

Included

• Pair of original NAB hubs

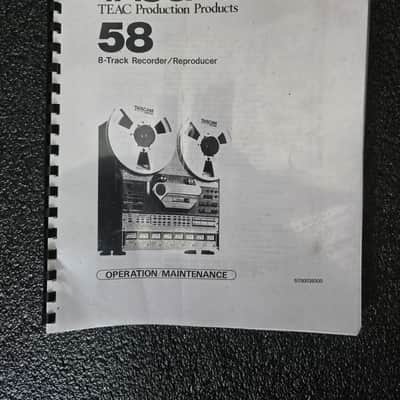

• Bound photocopy of the operating/service manual
• Attached heavy-duty power cable

Condition

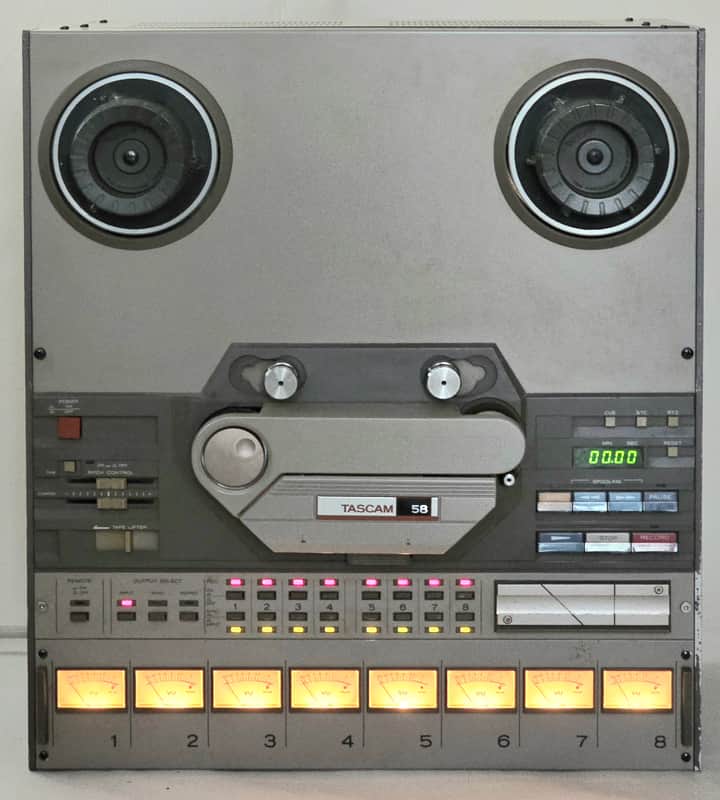

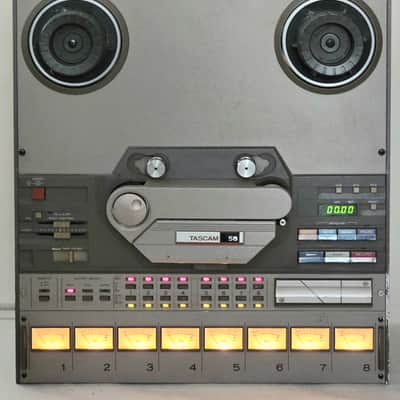

Cosmetically, this 58-OB presents very well (please see photos).

• Faceplate is clean with normal minor wear consistent with professional studio use
• VU meters are bright and evenly illuminated
• All channel LEDs functioning
• Transport controls responsive

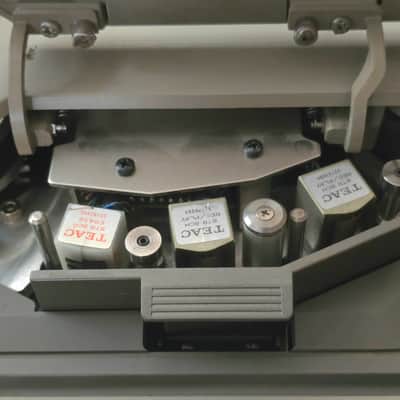

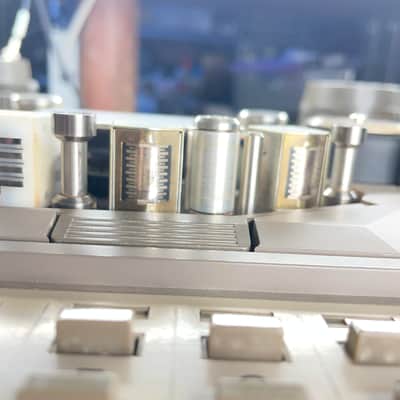

• Head stack appears clean and well-maintained (see detailed photos)
• Panels show light wear consistent with rack mounting

This machine has clearly been cared for and not neglected.

Service History

Most recent service: June 2026 – Wiktor Amps (full restoration details above)

Previous professional service: April 2021 – Reel To Reel Tech, Surrey BC

Why the 58-OB

The 58-OB sits in a unique place in analog history — a true 1/2" 8-track format with real studio build quality. It offers wider track width than 1/4" 8-track machines, stronger headroom, and serious analog presence.

Shipping

This is a substantial professional deck weighing 85 lbs.

It will be:

• Carefully padded and transport-secured
• Reel tables protected
• Double-boxed with structural reinforcement
• Fully insured for its sale value

Local pickup is welcome and encouraged, or will ship worldwide. Quoted international shipping rate is to Australia, the furthest destination from my location in the USA. Please inquire for shipping rate to your particular non-US address. The package will be large, heavy, delicate, and will be insured for full value, so shipping may be a significant expense.
