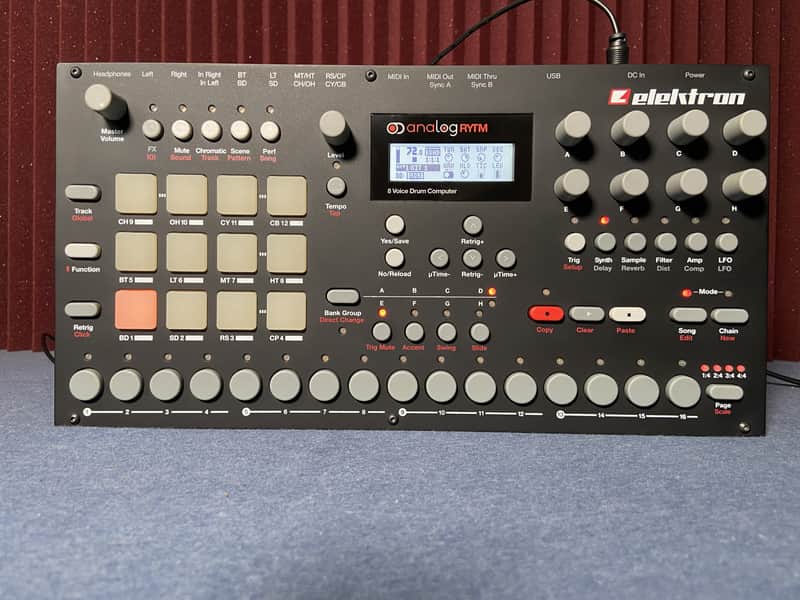

For sale at G.E.M.S. is an Analog RYTM drum machine, made by the talented Swedish company- Elektron. The drum machine package includes the power adapter and a USB cable. It will be securely shipped with insurance.

It's almost too easy to make nice beats with this instrument. The latest 1.72 firmware has been installed and the + Drive has been formatted to allow space for your samples, giving you 1GB of sample-storage capacity.

**Shipping cost can be adjusted based on location and preferred arrival time.

Features:

  • 8 drum voices, each with: Specialized analog percussion sound generator. Sample playback. Analog multimode filter. Analog overdrive.
  • 12 velocity & pressure sensitive pads
  • Analog master compressor & distortion
  • Reverb & Delay send FX
  • World class Elektron step sequencer
  • Chromatic, Performance, and Scene modes
  • Performance oriented beat control
  • Individual voice outputs

Specs:

  • The Sequencer
    • 12 drum tracks
    • 1 FX track
    • Up to 64 steps per pattern
    • Individual track lengths
    • Trig mute, accent, swing, slide functions
    • Micro timing
    • Parameter locks
    • Chromatic mode
    • Scene mode
    • Performance mode
    • Sound-per-step change
    • Assignable Retrig
    • Instant Pattern, Kit and Sound reload
    • Full real-time control
  • Storage
    • 128 Projects (+Drive)
    • 128 Kits per Project
    • 128 Patterns per Project
    • 16 Songs per Project
    • 4096 Sounds (+Drive Sound Library)
    • 128 Sounds per Project
    • 128 samples per Project
    • 1 GB +Drive sample storage
    • 128 factory samples
  • Send Effects
    • Delay
    • Reverb
  • Master Effects
    • Analog stereo distortion
    • Analog stereo compressor
  • Drum voice features (×8)
    • Fully analog signal path
    • 1× specialized analog percussion sound generator
    • 1× sample playback engine
    • 1× analog overdrive circuit
    • 1× 2-pole analog multi-mode filter
    • 1× panning VCA pair
    • 1× filter envelope
    • 1× amp envelope
    • 2× individual effect sends
    • 1× assignable LFO
    • 1× dedicated LFO fade envelope
  • Hardware
    • 12 velocity, pressure sensitive, and backlit pads

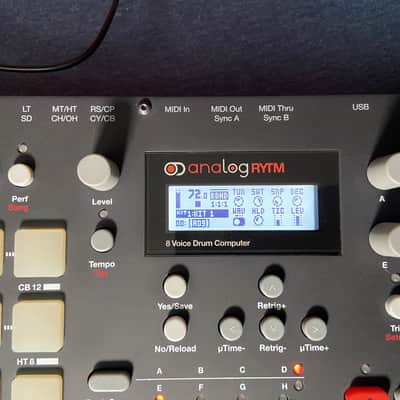

    • 122×32 pixel backlit LCD

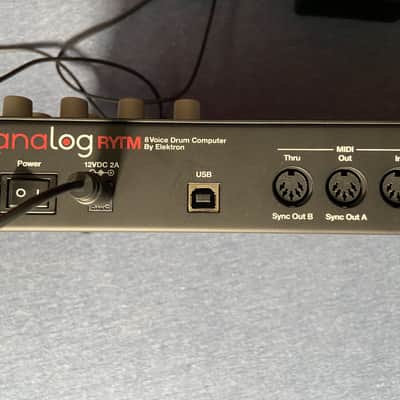

    • MIDI In/Out/Thru with DIN Sync Out

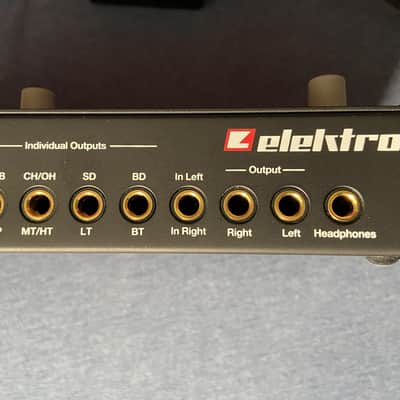

    • 2 × 1/4″ impedance balanced main out jacks
    • 4 × 1/4″ dual mono separate voice out jacks
    • 1 × 1/4″ audio in stereo jack
    • 1 × 1/4″ stereo headphone jack
    • 48 kHz, 24-bit D/A and A/D converters
    • Flash-EEPROM upgradable OS
    • USB 2.0 port
  • Balanced Audio Outputs
    • Headphones out level: +15 dBu (55 ?)
    • Main outputs level: +15 dBu
    • Output impedance: 440 – unbalanced
  • Unbalanced Audio Inputs
    • Input level: +15 dBu maximum
    • Audio input impedance: 9 k ?
  • Individual Voice Mono Outputs
    • Output level: +15 dBu
    • Output impedance: 440 ? unbalanced
  • Electrical Specifications
    • Unit power consumption: 14 W typical, 20 W maximum.
    • Recommended power supply: 12 V DC, >2 A
  • Physical Specifications
    • Sturdy steel chassis
    • Dimensions: W340×D176×H63mm (13.4×6.9×2.4?) (including power switch, knobs and rubber feet)
    • Weight: approximately 2.4 kg (5.3 lbs)


Thanks for looking:),

G.E.M.S.

This item is sold As-Described

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.

Listed4 months ago
ConditionVery Good (Used)
Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more
Brand
Model
  • Analog Rytm
Finish
  • Matte Black
Categories
Year
  • 2014
Made In
  • Sweden
MIDI I/O
  • USB MIDI
  • MIDI Through
  • MIDI Input
  • MIDI Output
Number of Pads
  • 12 Pads
Analog / Digital
  • Analog
Polyphony
  • 8 Voices
Built-In Speakers
  • No
