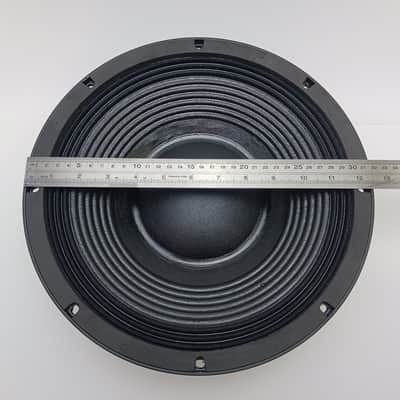

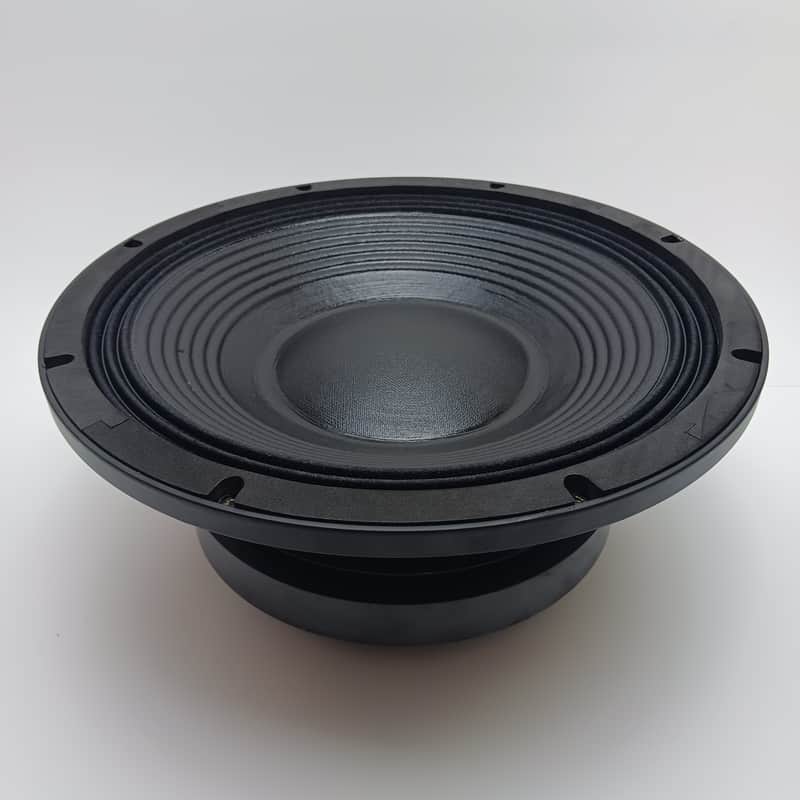

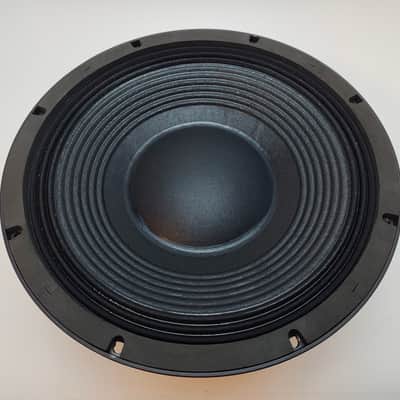

B&C Speakers 12-Inch Woofer Driver 12TBX100-4 LF - 4 Ohms Impedance 800 Watts Rms

B&C Speakers 12TBX100-4 LF Drivers 12-Inch Woofer 4 Ohms Impedance 800 Watts Rms 2000 Watts Max Continuous Power Handling Capacity

Brand New - Removed from a Klein + Hummel IS123 enclosure.

The IS123 was a clone of the JBL AMS5212/95.

The driver is a rebadged B&C 12TBX100-4. Guaranteed.

**Driver may not have the Klein and Hummel badge, I have three drivers and only one has the badge, the other two do not**

• "HIGHLIGHTS 2000 W continuous program power capacity | 100 mm (4 in) copper voice coil | 45 - 1500 Hz response | 93 dB sensitivity | Aluminium demodulating ring allows a very low distortion figure | Double silicone spider with optimized compliance | Ventilated voice coil gap for reduced power compression | "
• "SPECIFICATIONS Nominal Diameter : 320 mm (12.0 in) | Nominal Impedance : 4 Ω | Minimum Impedance : 4.6 Ω | Nominal Power Handling: 800 W | Continuous power handling: 2000 W | Sensitivity (1W/1m)3 : 93.0 dB | Frequency Range : 45 - 1500 Hz | Voice Coil Diameter : 100 mm (4.0 in) | Winding Material : Copper | Former Material : Glass Fibre | Winding Depth : 25.0 mm (1.0 in) | Magnetic Gap Depth : 12.0 mm (0.5 in) | Flux Density : 1.1 T | "
• "DESIGN : | Surround Shape : Triple Roll | Cone Shape : Radial | Magnet Material : Ferrite | Spider : Double Silicone | Pole Design : T-Pole | Woofer Cone Treatment : TWP Waterproof Both Sides | Recommended Enclosure : 40.0 dm3 (1.41 ft3) | Recommended Tuning : 43 Hz | "
• "PARAMETERS Resonance Frequency : 44 Hz | Re : 3.6 Ω | Qes : 0.24 | Qms : 6.23 | Qts : 0.23 | Vas : 41.1 dm3 (1.45 ft3) | Sd : 531.0 cm2 (82.3 in2) | η₀ : 1.42 % | Xmax : ± 9.0 mm | Xvar : ± 11.0 mm | Mms : 125.0 g | Bl : 22.91 Txm | Le : 1.74 mH | EBP : 183 Hz | "
• "MOUNTING AND SHIPPING INFO : | Overall Diameter : 319 mm (12.5 in) | Bolt Circle Diameter : 299 mm (11.8 in) | Baffle Cutout Diameter : 281.0 mm (11.1 in) | Depth : 135 mm (5.3 in) | Flange and Gasket Thickness : 13 mm (0.5 in) | Air Volume Occupied by Driver : 4.2 dm3 (0.15 ft3) | Net Weight : 11.8 kg (26.0 lb) | Shipping Weight : 12.7 kg (28.0 lb) | Shipping Box : 360x360x200 mm (14.17x14.17x7.87 in)
