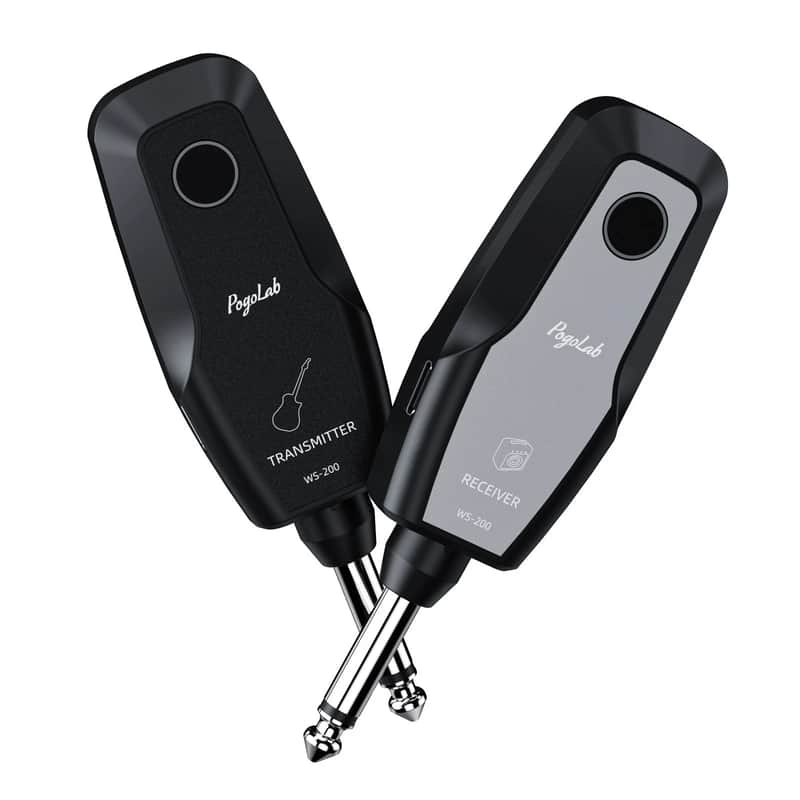

New POGOLAB 2.4GHz Wireless Guitar System 2.4G Guitar Wireless Transmitter &Receiver

Product Introduction

This product adopts a high-performance 2.4GHz wireless solution,which solves the complexity of wired connections,improves the usage distance, and features an independent frequency locking design to avoid interference issues caused by multiple sets of use.

Product Parameters

• Frequency: 2400-2483.5MHz
• Frequency Response: 55Hz-20KHz
• Analog Output: 6.35mm TRS
• Anti-Interference Mode: Frequency Locking
• Transmission Distance: 20-30m
• Power Supply: 3.7V Polymer Lithium Battery
• Battery Life: 6-8H
• Shutdown Voltage: 3.3V
• Input Voltage: DC5V Type-C Charging Port
• Dimensions: 112.5*32.5*16.2mm
• Bit Depth: 24 bits
• SNR: 90dB
• Transmission Delay: <9MS
• Sampling Rate: 48KHz
• Charging Time: 3.5H
• Battery: 400mAh

Product Functions

• 1. On/off Key: Press and hold the On/Off key for 3 seconds to power on or off.
• 2. When powered on, the indicator white light turns on, and the automatic pairing function is activated.
• 3. Connection Status: The white light blinking indicates that the transmitter and receiver have not been connected successfully; the white light on both the transmitter and receiver indicates a normal connection.
• 4. Frequency Locking Operation Method: Double-click the power buttonon the transmitter while powered on,and thewhite light will quickly.Then double-click the power button on the receiver,and the white light will remain steady after automatic frequency locking.
• 5. Charging Function: Use a matching or standard mobile phone charging cable to connect to a charger for charging(charger is not included,please select products with national standard certification).
• 6. Charging Indicator: Thered light indicates charging,and the red light going out indicates full charge.

Package list:

• 1*Transmitter
• 1*Receiver
• 1*USB-C cable
