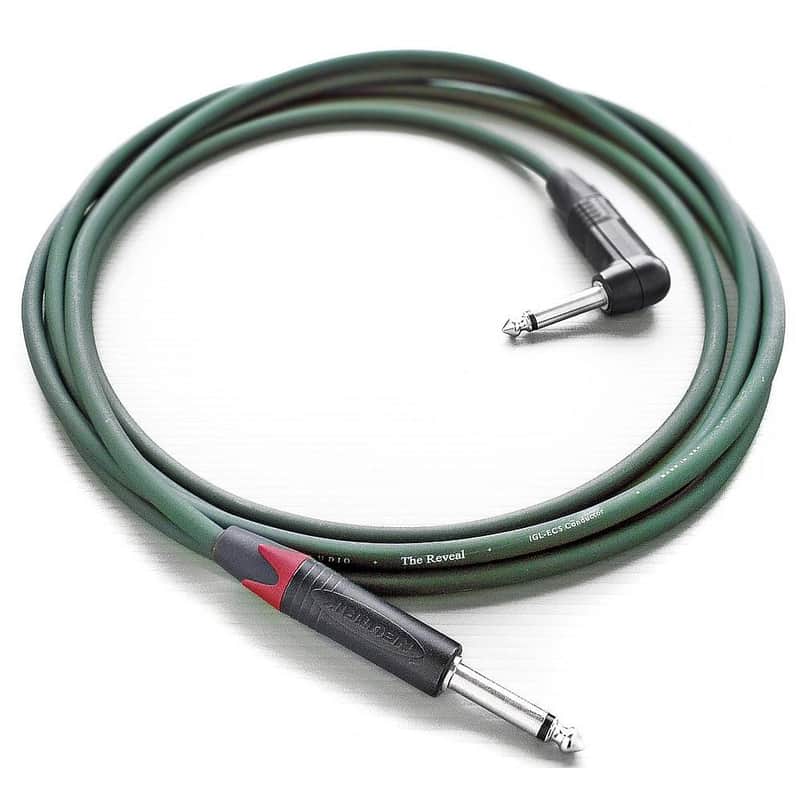

Evidence Audio RVRS15 The Reveal 15Ft Guitar Cable

DESCRIPTION

The Reveal is a great all-around guitar cable that gets out of the way and lets the music through with minimal changes. Very flexible.

Our proprietary IGL-ECS (Increased Grain Linearity) utilizes copper conductors for positive, with parallel-run conductors for the ground path, which provide shielding with minimal crosstalk.

The negative effects of strand interaction are greatly reduced from the guitar signal by putting an enamel coating over the individual strands of the center conductor. This allows the conductor to measure and sound like a single solid-core conductor, yet retain the flexibility of a cable using stranded conductors.

These key differences in design allow what comes out of the cable to match what goes into the cable.

DESIGN

• High-purity IGL-ECS copper conductor for distortion-free midrange and high frequencies.
• The negative effects of strand interaction on the guitar signal are greatly minimized by putting an enamel coating over the individual strands of the center conductor.
• 20 awg conductor size keeps skin-effect distortions outside the audio spectrum while offering ample cross-sectional area.
• Parallel-run shield provides 98% coverage with minimal crosstalk.
• Coaxial geometry with low capacitance for compatibility with a range of RLC possibilities.
• Carbon-loaded extrusion for protection from triboelectric noise.

CONNECTORS

Reveal comes standard with Neutrik™ straight or angled connectors when ordered for guitar. The connectors use a high-copper-content brass, which has the perfect balance of conductivity and strength, along with a unique chuck system to keep the cable mechanically attached to the cable for life.

The brass contact points have a nickel plating, which does a good job of protecting against corrosion.

While gold plating has a higher perceived value than nickel plating, gold offers no conductive advantage and is not worth the additional cost.

The fact that gold plating is done on top of an existing nickel plate to look good only makes the connector sound worse by forcing the signal to transfer through the additional layers and impurities that collect between them.

The connectors are soldered to the Reveal using TRT Wonder Solder Signature
