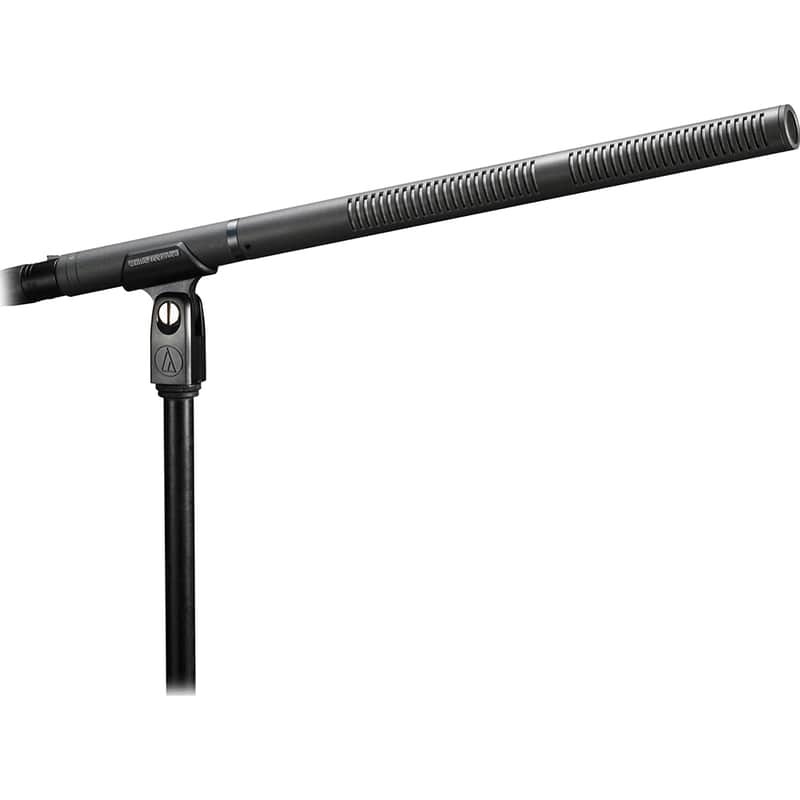

Audio-Technica Line + Gradient Condenser Microphone AT8035

The length (14.53") of the AT8035 Line + Gradient Condenser Microphone is well-suited for ENG, outdoor recording and other specialized uses. The microphone is designed for video production and broadcast (ENG/EFP) audio acquisition. Suited for both boom & handheld use, it provides the narrow acceptance angle desirable for long-distance sound pickup, featuring excellent sound rejection from the sides and rear of mic and switchable low-frequency roll-off. It operates on battery or phantom power.

Product Highlights:

Designed for video production and broadcast (ENG/EFP) audio acquisition

Length is well-suited for ENG, outdoor recording and other specialized uses

Provides the narrow acceptance angle desirable for long-distance sound pickup

Excellent sound rejection from the sides and rear of mic

Switchable low-frequency roll-off

Operates on battery or phantom power

RoHS compliant - free from all substances specified in the EU directive on hazardous substances

Product Features:

The AT8035 is a fixed-charge condenser microphone with a line + gradient polar pattern. It is designed for video production, broadcast (ENG/EFP) audio acquisition, wildlife recording and high-quality sound reinforcement.

The microphone requires 11V to 52V phantom power or a 1.5V AA battery for operation. A battery need not be in place for phantom power operation.

The microphone's highly directional polar pattern provides a narrow acceptance angle along with crisp, intelligible audio reproduction desirable for long-distance sound pickup.

The output of the microphone is a 3-pin XLRM-type connector.

A switch permits choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass filter) to help control undesired ambient noise.

The microphone is enclosed in a rugged housing. The included AT8405a stand clamp permits mounting on any microphone stand with 5/8"-27 threads. A windscreen, two o-rings, and a protective carrying case are also included.

Product Specifications:

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Line + gradient

Frequency Response: 40-20,000 Hz

Low Frequency Roll Off: 80 Hz, 18 dB/octave

Open Circuit Sensitivity:

Phantom: -38 dB (12.5 mV) re 1V at 1 Pa

Battery: -39 dB (11.2 mV) re 1V at 1 Pa

Maximum Input Sound Level:

Phantom: 132 dB SPL, 1 kHz at 1% T.H.D.

Battery: 120 dB SPL, 1 kHz at 1% T.H.D.

Dynamic Range:

Phantom: 110 dB, 1 kHz at Max SPL

Battery: 98 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 72 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 11-52V DC, 2 mA typical

Battery Type: 1.5V AA/UM3

Battery Current/Life: 0.4 mA / 1200 hours typical (alkaline)

Switches: Flat, roll-off

Weight: 170 g (6.0 oz)

Dimensions: 369.0 mm (14.53") long, 21.0 mm (0.83") diameter

Output Connector: Integral 3-pin XLRM-type

Accessories Included:

AT8405a Stand Clamp for 5/8"-27 threaded stands

5/8"-27 to 3/8"-16 Threaded Adapter

AT8132 Windscreen

Protective Carrying Case

Audio-Technica Case Style: SG1

Warranty: 5-year limited warranty
