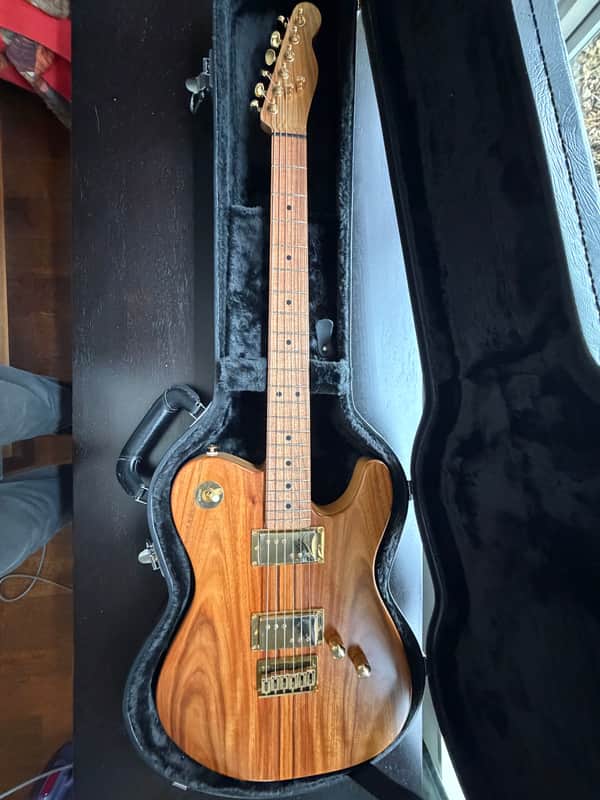

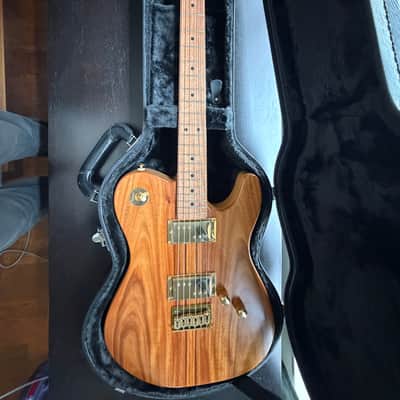

Custom Telecaster - Canary/Swamp Ash, Nitro, Gold and Lindy Fralin P-92s

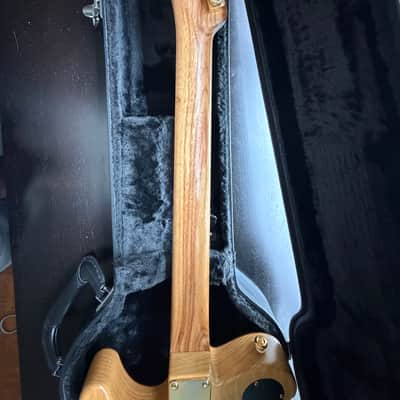

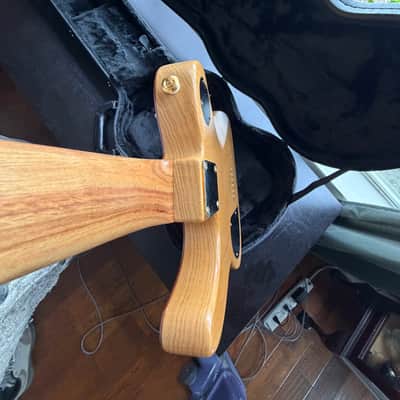

The neck is solid Canary with a Canary fretboard:

• 25.5 inches (64.8 cm) scale
• 22 Fret, Compound Radius 9.5-14
• 6105 nickel frets
• Stable double truss rod which adjusts at the heel, and a Side Adjust Mechanism.
• Profile is Standard Thin similar to: Modern Fender® American Standard Strat® or Tele®
• Black dot inlays with black side dots
• Nut is GraphTech 11/16-inch (1.6875 inches) Black TUSQ XL
• The bridge is solid brass with solid brass saddles to match the gold hardware 2 1/8th String spread
• Action is low

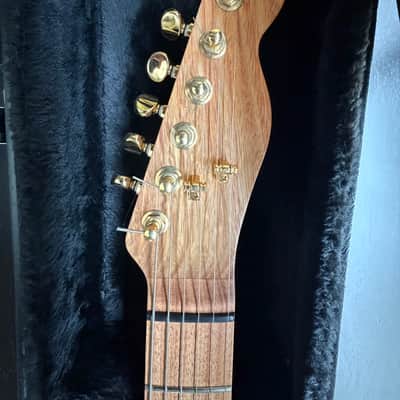

• Gold Kluson 6 in-line, two-pin locking tuners
• Two gold roller string trees

The neck is finished with hardening oil, polished and completely dried and then a light coat of beeswax and carnauba buffed smooth (as in VERY smooth).

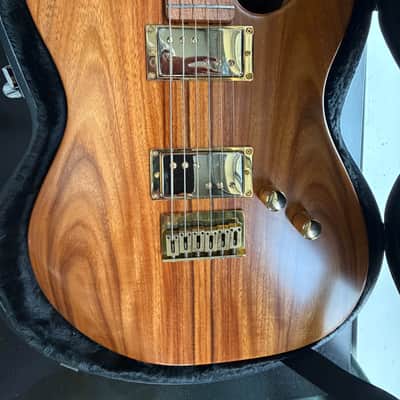

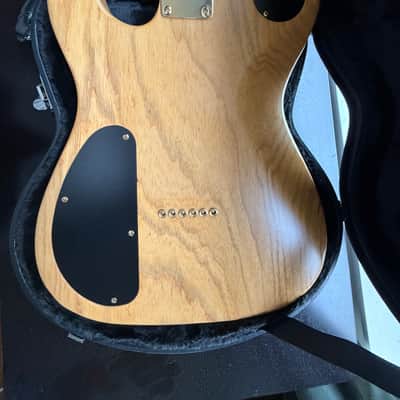

The body is a Swamp Ash back with a book matched top of beautifully figured Canary mirrored and joined with Walnut. The body is finished in satin nitrocellulose lacquer (not Warmoth) and has some naturally occurring crazing, which is characteristic of the finish at 10 years. The guitar is well-balanced and weighs in at 7 lbs. 2 oz. Brass string-through-top ferrules. Over-sized gold strap buttons.

• Pickups are gold cover Lindy Fralin P-92 with gold pickup rings
• A full-size humbucker - a cleaner, more articulate P-90, with no hum
• Gibson shielded wire throughout
• Neck Ohm Reading (Stock): 6.8K
• Bridge Ohm Reading (Stock): 7.8K
• USA-Made Alnico 5 bar magnet
• USA-Made 42 / 43-Gauge Single Poly Nylon
• Baseplate Material: USA-Made Nickel Silver
• 500k TAOT Pots (Master Tone and Master Volume)
• NOS Sprague Vitamin Q .047 PIO Cap
• Parallel Treble bleed with 1500 pF Orange Drop + 150k Ohm resistor
• All cavities are copper foil lined and properly grounded to bridge and common ground

 Set-up (just before listing):

• Neck is straight with a good break angle .5 Degree full pocket maple shim
• Fret level, crown and polish
• String Joy Signature Nickel Wound (10.5, 14, 18p, 26w, 36w, 48w)
• Action:
• Low E 22nd Fret: .080”
• High R 22nd Fret .050”
• High E 1st Fret .019”
• Low E 1st Fret .012”
• Relief at the 7th Fret .012”
• 14” Radius at 22nd Fret
• Pickup String Height: Starting @ Low 3mm, High E 2mm then adjusted to ear (sustained note, no magnet pull-off and no warble)
• Strobe intonation is spot on
• You can change the strings if you like more or less slinky

This guitar basically surpasses most Custom Shop specs. It sounds phenomenal and plays beautifully. I’m getting older, not playing as much and I’d like to see it go to a good home
